EP85-AHPYU (1990)
Toyota Starlet
Production
Aug 1990
-
Jan 1992
Engine
4EF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9201)4EF

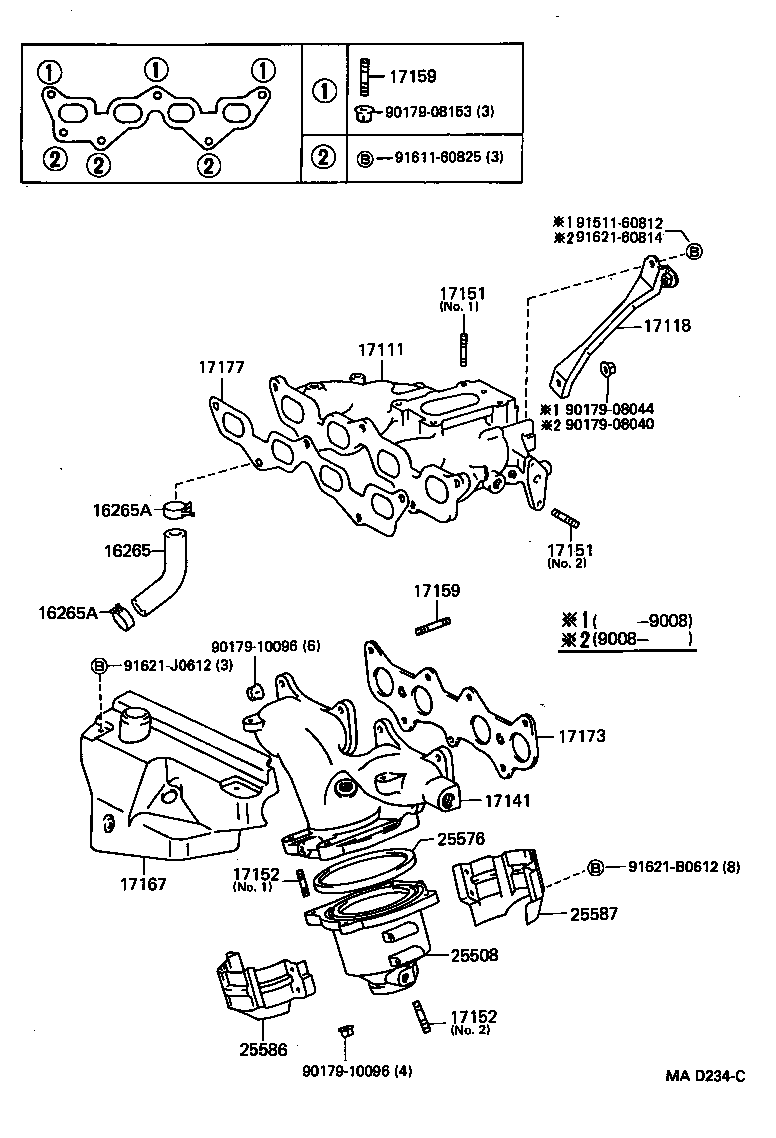

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 16265-11030 |
4EF..EP8# |
1 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-21001 |
4EF..EP8# |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-21001 |
4EF..EP8# |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-11250 |
4EF..EP8# |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-11210 |
4EF..EP85 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-11190 |
4EF..EP8# |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92122-40828 |
4EF..EP8# NO.1 |
4 | ||
| 92122-40610 |
4EF..EP8# NO.2 |
2 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92122-40828 |
4EF..EP8# NO.1 |
4 | ||
| 92122-40610 |
4EF..EP8# NO.2 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10179 |
4EF,4EFE..EP8# NO.1 |
4 | ||
| 90116-10017 |
4EF,4EFE..EP8# NO.2 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10179 |
4EF,4EFE..EP8# NO.1 |
4 | ||
| 90116-10017 |
4EF,4EFE..EP8# NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-61025 |
4EF#..EP8# EXHAUST MANIFOLD |
6 | ||
| 92132-60825 |
4EF#..EP8# INTAKE MANIFOLD |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-61025 |
4EF#..EP8# EXHAUST MANIFOLD |
6 | ||
| 92132-60825 |
4EF#..EP8# INTAKE MANIFOLD |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-11160 |
4EF..EP8# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-11040 |
4EF#..EP8# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-11020 |
4EF#..EP8# |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-11130 |
4EF..EP85 |
1 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-11020 |
4EF#..EP8# |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-11010 |
4EF,4EFE..EP8# |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-11010 |
4EF,4EFE..EP8# |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90179-08044 | ||||
| 90179-08153 | ||||
| 90179-10096 | ||||
| 91511-60812 | ||||
| 91611-60825 | ||||
| 91621-60814 | ||||
| 91621-B0612 | ||||
| 91621-J0612 | ||||
