EP85-AHPYK (1992)
Toyota Starlet
Production
Jan 1992
-
Jan 1996
Engine
4EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9405)

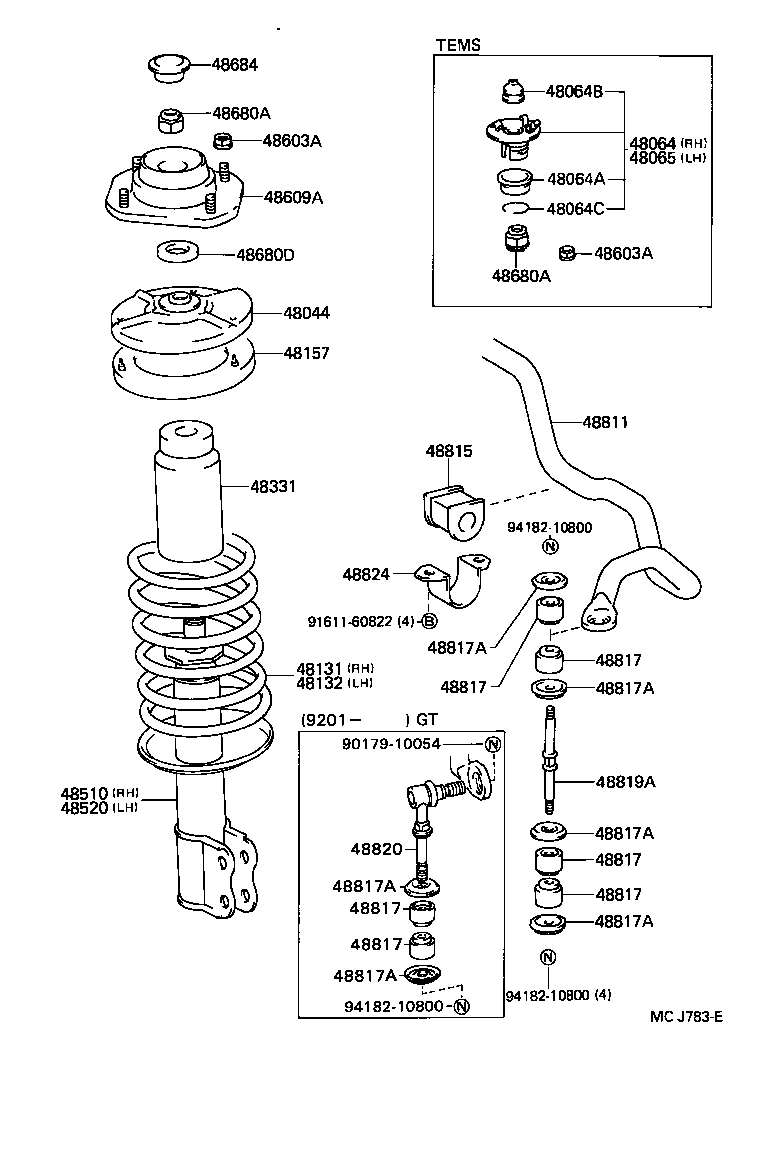

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-10030 |
EP8#,NP80 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-10860 |
EP85..4FC |
1 | ||
| 48131-10811 |
EP85 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-10860 |
EP85..4FC |
1 | ||
| 48131-10811 |
EP85..4FC |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-10020 |
EP8#,NP80 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-10271 |
EP85 |
1 | ||
| 48510-10310 |
EP85 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-10251 |
EP85 |
1 | ||
| 48520-10290 |
EP85 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-08090 |
EP85;EP82..TBO |
8 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-08090 |
EP85;EP82..TBO |
8 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-10140 |
EP85 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
EP8#,NP80 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
EP8#,NP80 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
EP8#,NP80 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
EP8#,NP80 |
2 | ||
| Common parts | ||||
| 90179-10054 | ||||
| 91611-60822 | ||||
| 94182-10800 | ||||
(9405- )TBO ; (9405- )EP85

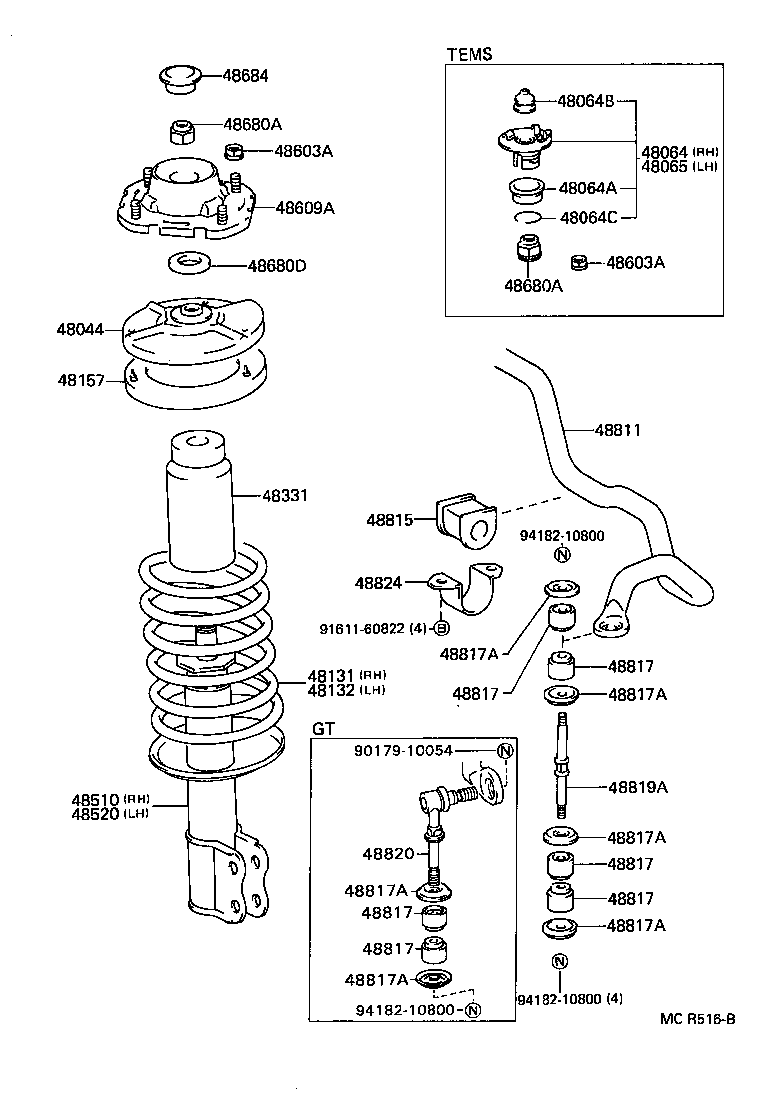

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-10030 |
EP8#,NP80 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-10860 |
EP85..4FC |
1 | ||
| 48131-10811 |
EP85 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-10860 |
EP85..4FC |
1 | ||
| 48131-10811 |
EP85..4FC |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-10020 |
EP8#,NP80 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-10271 |
EP85 |
1 | ||
| 48510-10310 |
EP85 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-10251 |
EP85 |
1 | ||
| 48520-10290 |
EP85 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-08090 |
EP85;EP82..TBO |
8 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-08090 |
EP85;EP82..TBO |
8 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-10140 |
EP85 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
EP8#,NP80 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
EP8#,NP80 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
EP8#,NP80 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
EP8#,NP80 |
2 | ||
| Common parts | ||||
| 90179-10054 | ||||
| 91611-60822 | ||||
| 94182-10800 | ||||
