EP85-AHMYK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9601)EFI,TBO

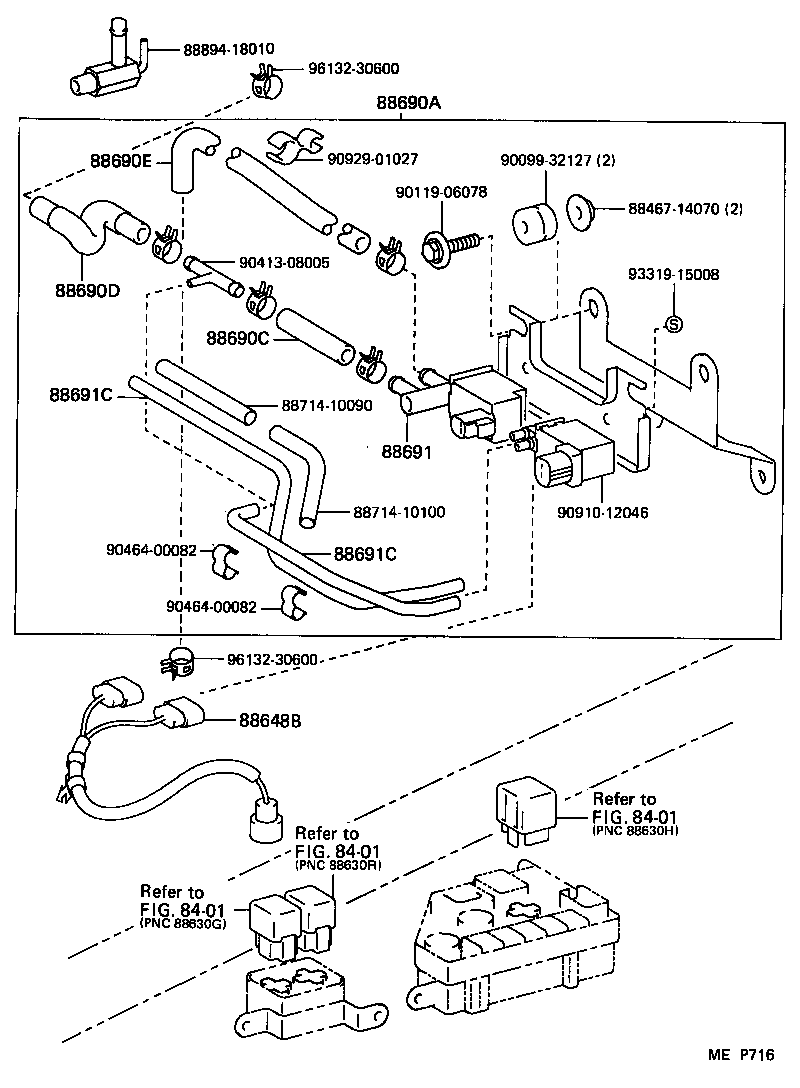

Click highlighted areas on diagram

COOLER IDLE UP

diagram 8401 8401 8401 8846714070 88648B 88690A 88690C 88690D 88690E 88691 88691C 88691C 8871410090 8871410100 8889418010 9009932127 9011906078 9041308005 9046400082 9046400082 9091012046 9092901027 9331915008 9613230600 9613230600
Part # Description Qty Price
88690A - VALVE ASSY, COMBINATION
88690-10400

EP8#..5F..XLTD

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88690-10340

EP8#..5F..XLTD

ｱﾘ(ﾃﾞ-ﾗ- ｵﾌﾟｼﾖﾝ)

 1
88690-10400

EP8#..5F..(GI,XLTD)

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88690-10340

EP8#..GI,S,XLTD

 1
88690-10400

EP85..XLTD;EP82..4FC..XLTD

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
90999-92002

EP8#..EFI

*H,L=300

 1
88689-20390

EP8#..EFI

 2
88689-20390

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,SOL,XLTD)

 2
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-17030

EP8#..EFI,TBO

 1
88691-17030

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,SOL,XLTD)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EP8#..EFI

*H,L=300

 1
90999-92002

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,SOL,XLTD)

*H,L=300

 1
90999-92002

EP8#..CAN,GI,S,SOL,XLTD

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EP8#..EFI

*H,L=300

 1
90999-92002

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,SOL,XLTD)

*H,L=300

 1
90999-92002

EP8#..CAN,GI,S,SOL,XLTD

*H,L=300

 1
Common parts
88467-14070
88714-10090
88714-10100
88894-18010
90099-32127
90119-06078
90413-08005
90464-00082
90910-12046
90929-01027
93319-15008
96132-30600
Linked diagrams
8401
