EP85-AHMYK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9601)

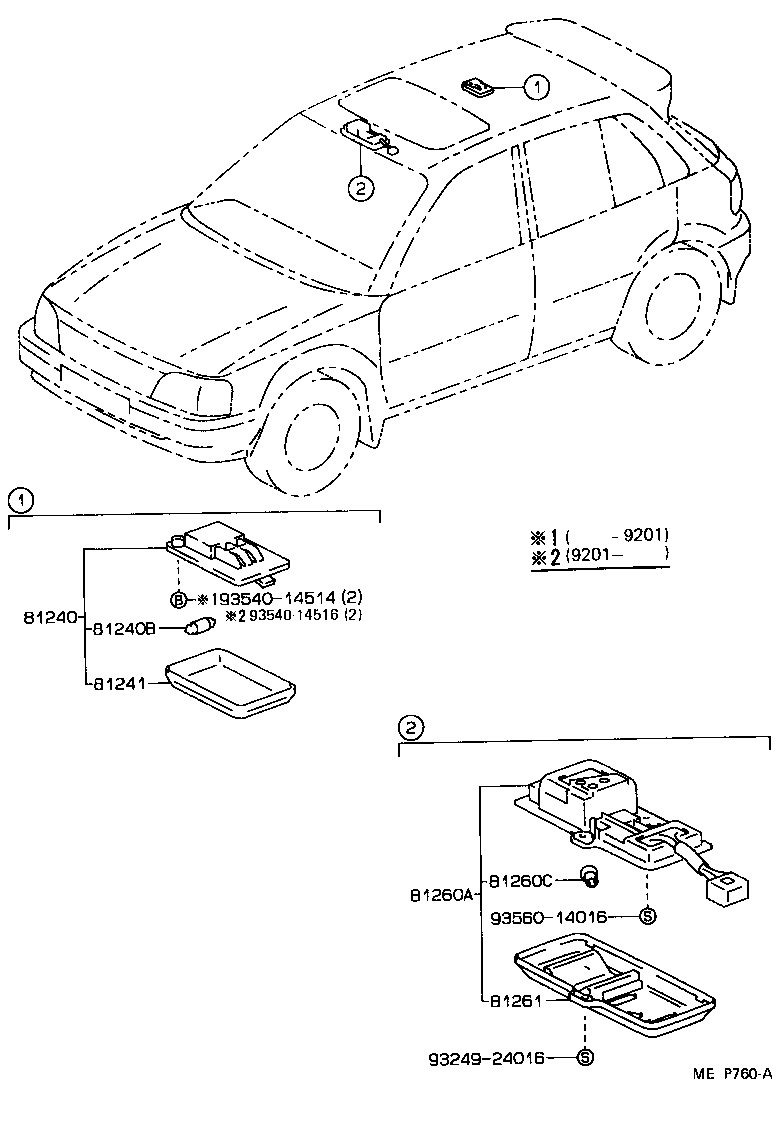

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260A 81260C 81261 9324924016 9354014514 9354014516 9356014016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2208113

EP8#..X,XLTD

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81240-1004006

EP8#,NP80..SOLL,X,XLTD

SABLE,TRIM4#

 1
81240-2208126

EP8#..X,XLTD

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81240-2208113

EP8#..GI,GT,S,XLTD

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM1#

 1
81240-1004003

EP8#,NP80..GI,GT,S,SOL,SOLL,XLTD

GRAY,TRIM1#

 1
81240-10040S3

EP8#,NP80..GI,GT,S,SOL,SOLL,XLTD

LI.GRAY,TRIM1#

 1
81240-22081A0

EP8#..XLTD

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
81240-10041S3

EP8#,NP80

GRAY,TRIM1#

 1
81240-1004003

EP8#,NP80..SOL,SOLL,X,XLTD

GRAY,TRIM1#

 1
81240-10040A0

EP8#,NP80..SOLL,XLTD

IVORY,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

EP8#,NP80

12V 8W

 1
99132-12100

EP8#,NP80..GI,GT,S,SI,SOL,SOLL,X,XLTD

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

EP8#..GI,GT,S,SI,X,XLTD

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81241-10030

EP8#,NP80..GI,GT,S,SI,SOL,SOLL,X,XLTD

 1
81260A - LAMP ASSY, MAP
81260-1004003

EP8#..X,XLTD

GRAY,TRIM1#

 1
81260-1004006

EP8#..X,XLTD

SABLE,TRIM4#

 1
81260-10050B0

EP8#..GI,GT,S,XLTD

GRAY,TRIM1#

 1
81260-10050A0

EP8#..XLTD

IVORY,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

EP8#..CAN,CANSI,GI,GT,S,SI,X,XLTD

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-10050B0

EP8#..GI,GT,S,XLTD

GRAY,TRIM1#

 1
81261-20061B0

EP8#..X,XLTD

LIGHT GRAY,TRIM1#

 1
81261-10050A0

EP8#..XLTD

IVORY,TRIM4#

 1
81261-2006116

EP8#..X,XLTD

SABLE,TRIM4#

 1
Common parts
93249-24016
93540-14514
93540-14516
93560-14016
