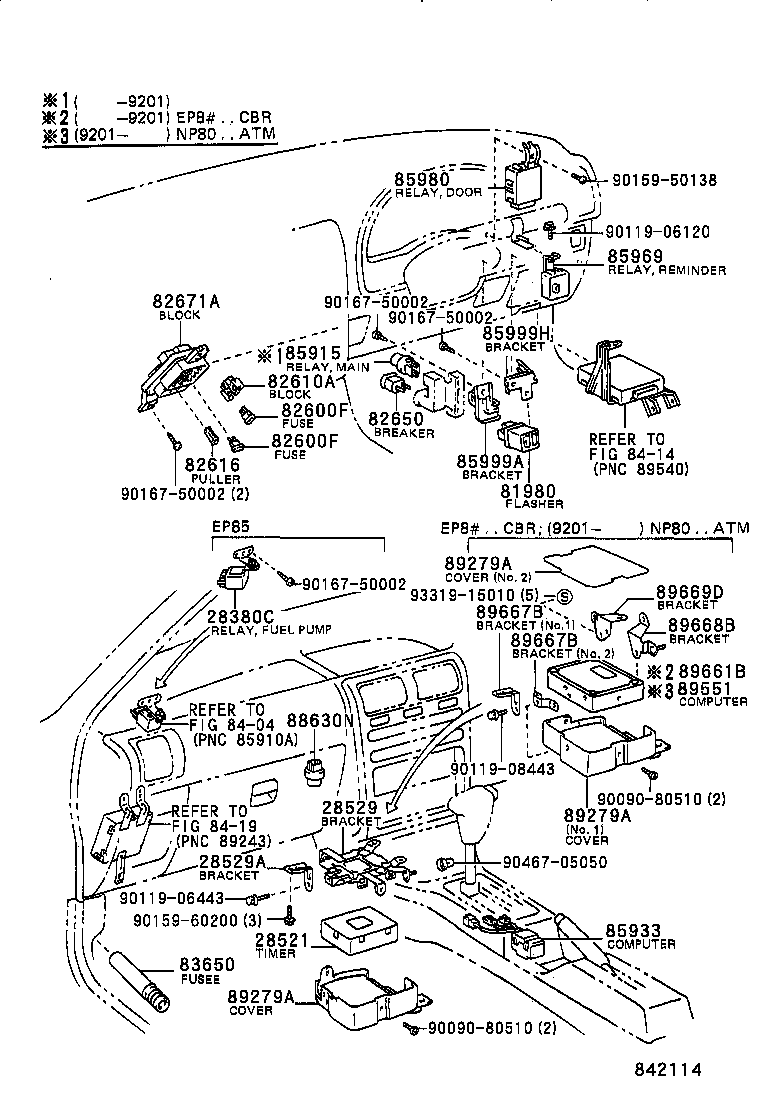

EP85-AHMNU (1990)
Toyota Starlet
(8912-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380C - RELAY ASSY, FUEL PUMP | ||||
| 28380-10030 |
4EF..EP85 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
EP8#,NP80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
EP8#,NP80 15A |
1 | ||
| 90982-09005 |
EP8#,NP80 7.5A |
1 | ||
| 90982-07011 |
EP8#,NP80 30A,緑 |
1 | ||
| 90982-09002 |
EP8#,NP80 10A |
1 | ||
| 90982-09004 |
EP8#,NP80 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
EP8#,NP80 15A |
1 | ||
| 90982-09005 |
EP8#,NP80 7.5A |
1 | ||
| 90982-07011 |
EP8#,NP80 30A,緑 |
1 | ||
| 90982-09002 |
EP8#,NP80 10A |
1 | ||
| 90982-09004 |
EP8#,NP80 20A,黄 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-32010 |
EP8#,NP80 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD 30A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-10010 |
EP8#,NP80 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
EP8#,NP80 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD MARUKO |
1 | ||
| 90987-02004 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD NIPPONDENSO |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-10010 |
EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-10020 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-10080 |
NP80..X;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,XLTD |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-10060 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90090-80510 | ||||
| 90119-06120 | ||||
| 90119-06443 | ||||
| 90119-08443 | ||||
| 90159-50138 | ||||
| 90159-60200 | ||||
| 90167-50002 | ||||
| 90467-05050 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||

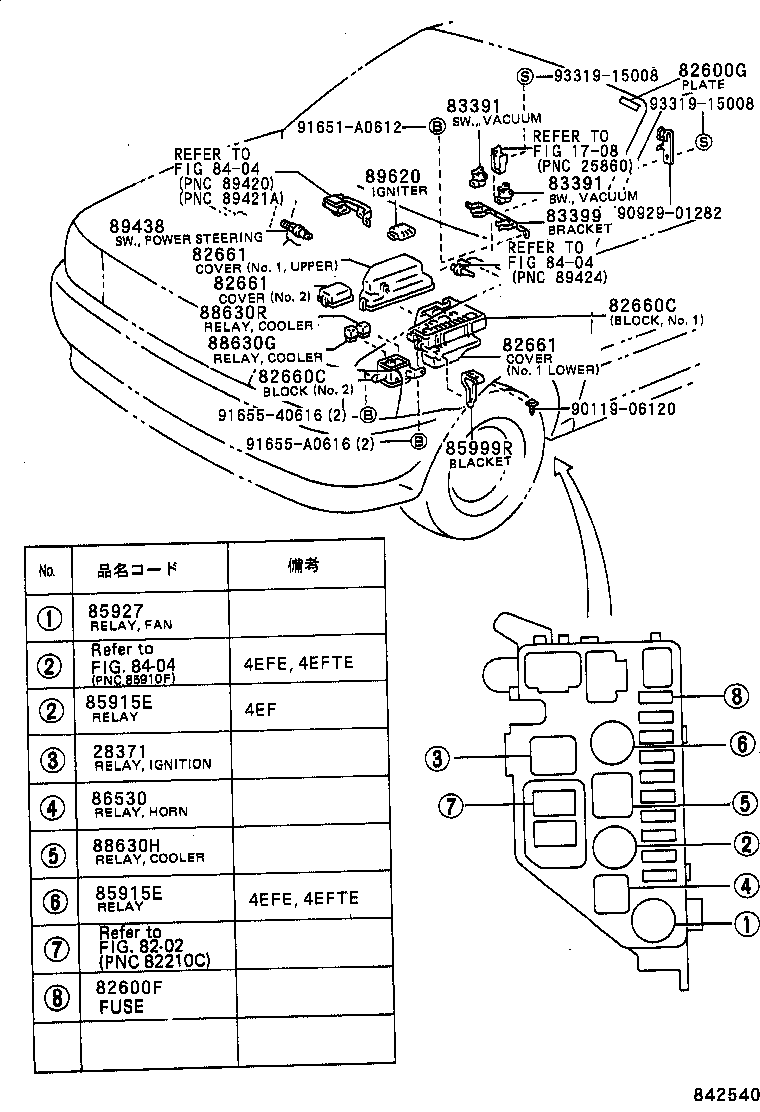

(8912-9201)EP8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02006 |
4EF#,1N..EP8#,NP80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
EP8#,NP80 15A |
1 | ||
| 90982-09005 |
EP8#,NP80 7.5A |
1 | ||
| 90982-07011 |
EP8#,NP80 30A,緑 |
1 | ||
| 90982-09002 |
EP8#,NP80 10A |
1 | ||
| 90982-09004 |
EP8#,NP80 20A,黄 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10120 |
EP8#,NP80 NO.2 |
1 | ||
| 82660-10110 |
EP8#,NP80 NO.1 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10120 |
EP8#,NP80 NO.2 |
1 | ||
| 82660-10110 |
EP8#,NP80 NO.1 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10130 |
EP85..5F;EP82..3FC NO.1,UPPER |
1 | ||
| 82662-10120 |
EP8#,NP80 NO.2 |
1 | ||
| 82663-10010 |
EP8#,NP80 NO.1,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10130 |
EP85..5F;EP82..3FC NO.1,UPPER |
1 | ||
| 82662-10120 |
EP8#,NP80 NO.2 |
1 | ||
| 82663-10010 |
EP8#,NP80 NO.1,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10130 |
EP85..5F;EP82..3FC NO.1,UPPER |
1 | ||
| 82662-10120 |
EP8#,NP80 NO.2 |
1 | ||
| 82663-10010 |
EP8#,NP80 NO.1,LOWER |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
EP8#..CBR MARK=80FM |
1 | ||
| 83391-12240 |
EP8#..CBR MARK=250FB |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
EP8#..CBR MARK=80FM |
1 | ||
| 83391-12240 |
EP8#..CBR MARK=250FB |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-10050 |
EP8#..CBR |
1 | ||
| 85915E - RELAY | ||||
| 90987-02004 |
EP8#..CBR |
2 | ||
| 85915E - RELAY | ||||
| 90987-02004 |
EP8#..CBR |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EP8#,NP80 |
1 | ||
| 85999R - BRACKET, RELAY, NO.6 | ||||
| 85999-10130 |
EP8#,NP80 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
EP8#,NP80 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
EP8# |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-04003 |
EP8# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-10010 |
EP8#..CBR |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90929-01282 | ||||
| 91651-A0612 | ||||
| 91655-40616 | ||||
| 91655-A0616 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8404 | ||||

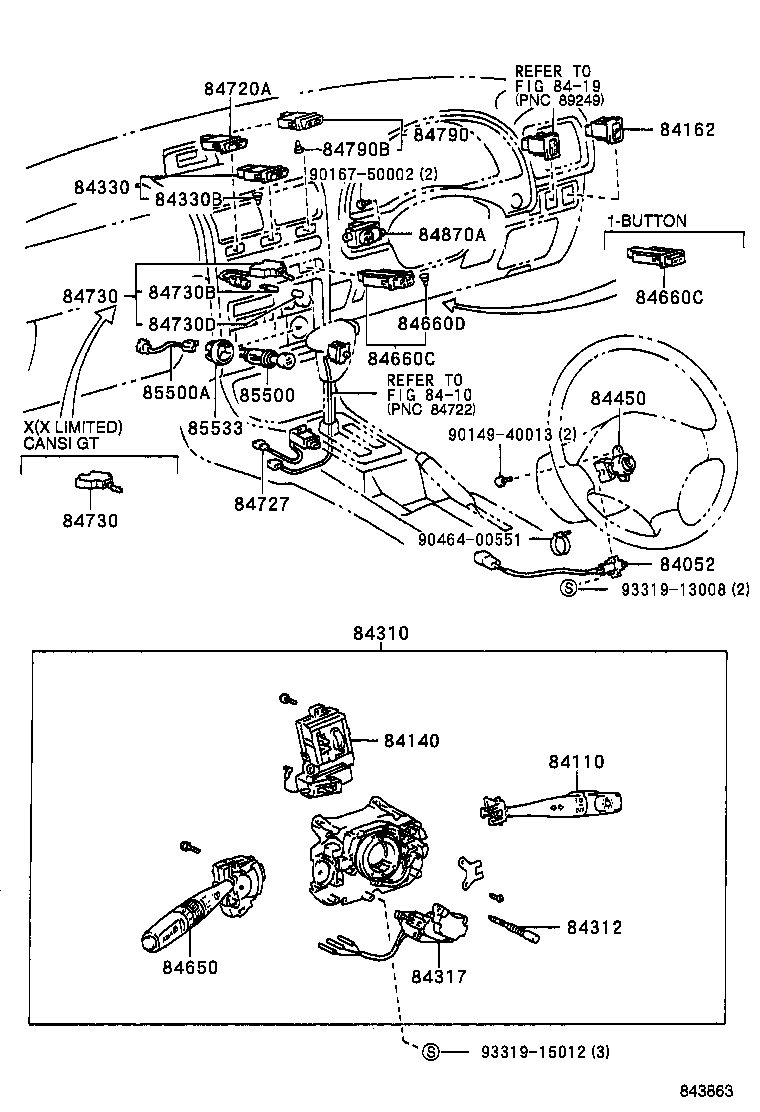

(8912-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80053 |
EP8#,NP80 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-10160 |
EP8#,NP80 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10750 |
EP85..SOLL ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84310-10740 |
EP85..SOLL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-10040 |
EP8#,NP80 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-10180 |
EP85 |
1 | ||
| 84332-10180 |
EP8#,NP80 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
EP8#,NP80 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10110 |
EP8#,NP80 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10540 |
EP85..SOLL ｱﾘ(ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 84652-10530 |
EP85..SOLL |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10090 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X ｴｱｺﾝ ｽｲﾂﾁ=1ﾎﾞﾀﾝ |
1 | ||
| 84660-10100 |
EP82..SOL..EFI;EP8#,NP80..(CAN,SOL,SOLL)..(CBR,DSL) ﾏﾆﾕｱﾙ ｴｱｺﾝ---*LHC |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10090 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X ｴｱｺﾝ ｽｲﾂﾁ=1ﾎﾞﾀﾝ |
1 | ||
| 84660-10100 |
EP82..SOL..EFI;EP8#,NP80..(CAN,SOL,SOLL)..(CBR,DSL) ﾏﾆﾕｱﾙ ｴｱｺﾝ---*LHC |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X 14V 0.08A,ｴｱｺﾝ ｽｲﾂﾁ=1 ﾎﾞﾀﾝ |
1 | ||
| 88607-20060 |
EP8#,NP80..CAN,SOL,SOLL 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10140 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10140 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10390 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10150 |
EP8#,NP80 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
EP8#,NP80 14V 0.84W,14V 0.84W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-10040 |
EP82..CAN..EFI;EP8#,NP80..CANSI,GI,GT,S,SI,X,XLTD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
EP8#,NP80 |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-10010 |
EP8#,NP80 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90167-50002 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8419 | ||||

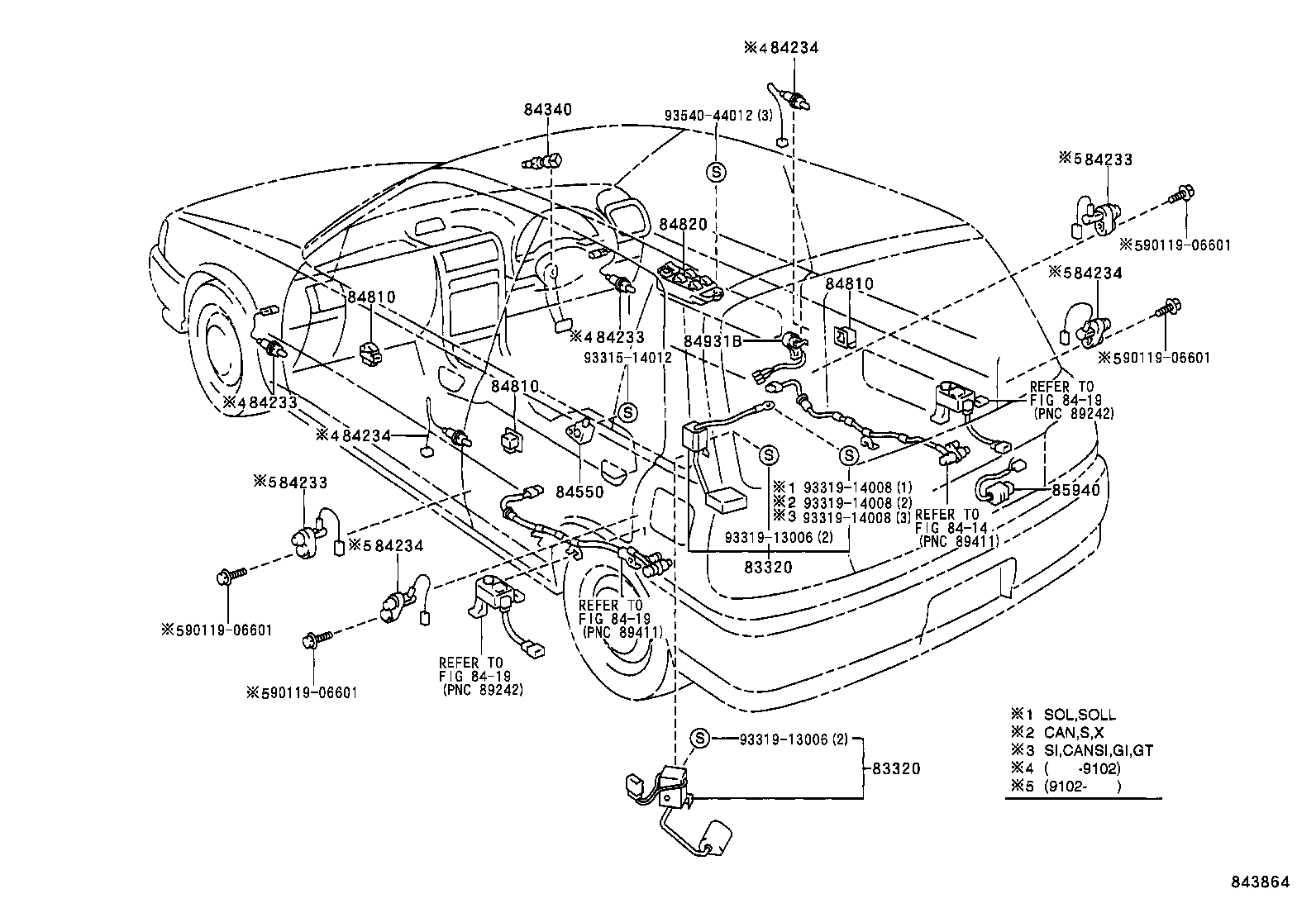

(8912-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80186 |
EP85..SOLL FUEL PUMP |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80186 |
EP85..SOLL FUEL PUMP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
EP8#,NP80 |
2 | ||
| 84231-32040 |
EP8#,NP80..5D |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
EP8#,NP80 |
2 | ||
| 84231-32040 |
EP8#,NP80..5D |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
EP8#,NP80 |
2 | ||
| 84231-32040 |
EP8#,NP80..5D |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
EP8#,NP80 |
2 | ||
| 84231-32040 |
EP8#,NP80..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-10010 |
EP8#,NP80..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-10010 |
EP8#,NP80..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-10010 |
EP8#,NP80..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-10010 |
EP8#,NP80..5D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-10020 |
EP8#,NP80 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
EP85 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-1002006 |
EP8#,NP80..5D..(SOLL,X,XLTD) SABLE,TRIM4#,REAR |
2 | ||
| 84810-1002003 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-1002006 |
EP8#,NP80..5D..(SOLL,X,XLTD) SABLE,TRIM4#,REAR |
2 | ||
| 84810-1002003 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) FRONT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-1002006 |
EP8#,NP80..5D..(SOLL,X,XLTD) SABLE,TRIM4#,REAR |
2 | ||
| 84810-1002003 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) FRONT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22310 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-10030 |
EP8#,NP80..5D..(SI,SOLL,X,XLTD) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-10030 |
EP8#,NP80..CBR,DSL,EFI |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 93315-14012 | ||||
| 93319-13006 | ||||
| 93319-14008 | ||||
| 93540-44012 | ||||
| Linked diagrams | ||||
| 8414 | ||||
| 8419 | ||||

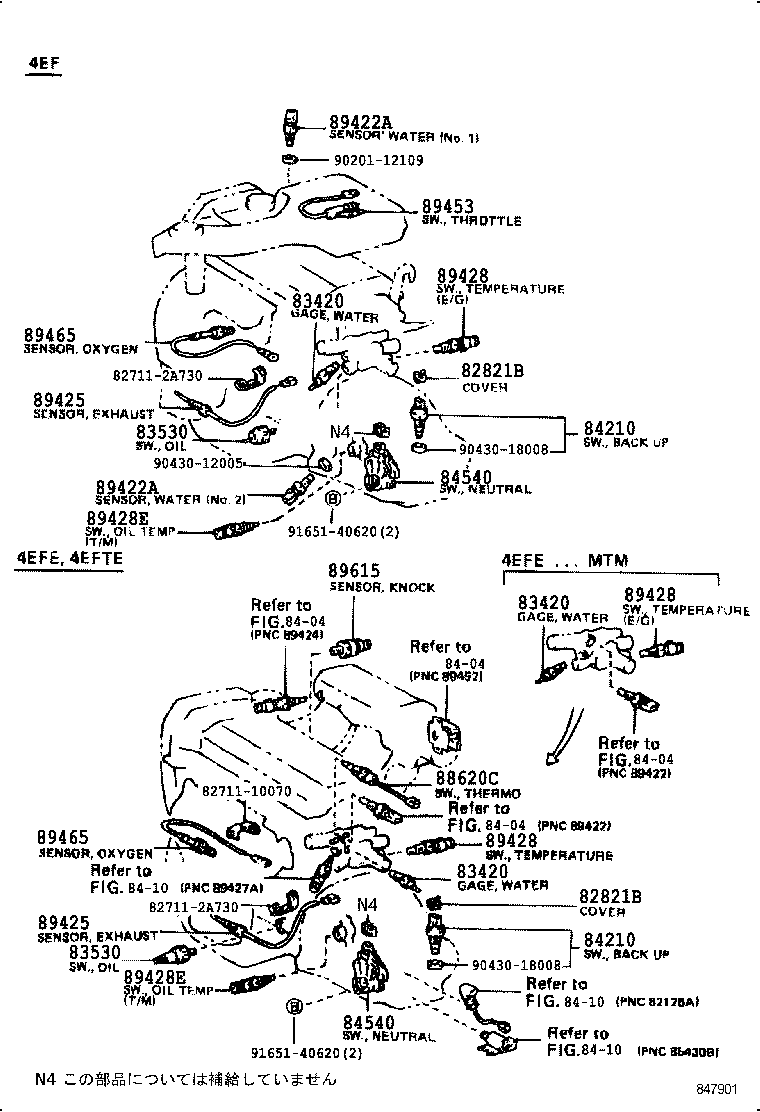

(8912-9601)EP8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82821B - COVER, CONNECTOR | ||||
| 82821-12250 |
EP8#,NP80..MTM |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-12250 |
EP8#,NP80..MTM |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP8#,NP80 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP8#,NP80 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP8#,NP80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EP8#..CBR,EFI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EP8#..CBR,EFI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
EP8#,NP80..MTM |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
EP8#,NP80..MTM |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-12020 |
EP8#..CBR NO.1 |
1 | ||
| 89422-20010 |
EP8#..CBR NO.2 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-12020 |
EP8#..CBR NO.1 |
1 | ||
| 89422-20010 |
EP8#..CBR NO.2 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
EP8#..CBR,EFI NIPPONDENSO |
1 | ||
| 89425-12250 |
EP8#..CBR,EFI MATSUSHITA |
1 | ||
| 89425-32090 |
EP8# NIPPONDENSO |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
EP8#..CBR,EFI NIPPONDENSO |
1 | ||
| 89425-12250 |
EP8#..CBR,EFI MATSUSHITA |
1 | ||
| 89425-32090 |
EP8# NIPPONDENSO |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
EP8#,NP80 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
EP8#,NP80 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
EP8#,NP80 |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-12050 |
EP8#..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10020 |
EP8# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10020 |
EP8# |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-2A730 | ||||
| 90201-12109 | ||||
| 90430-12005 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
