EP85-AHMNU (1990)

Toyota Starlet

Production Aug 1990 - Jan 1992
Engine 4EF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )EP85

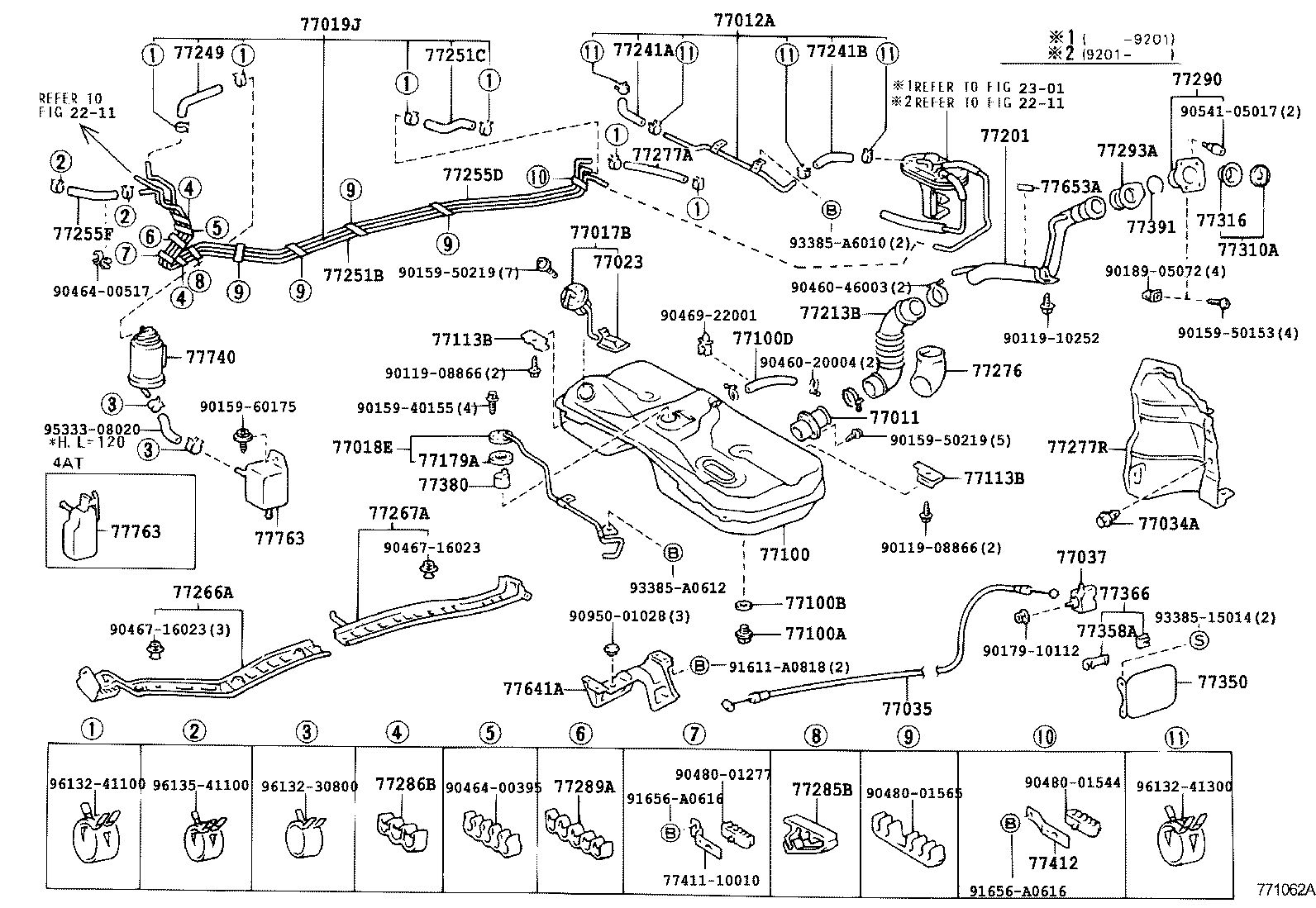

Click highlighted areas on diagram

diagram 2211 2211 2301 77011 77012A 77017B 77018E 77019J 77023 77034A 77035 77037 77100 77100A 77100B 77100D 77113B 77113B 77179A 77201 77213B 77241A 77241B 77249 77251B 77251C 77255D 77255F 77266A 77267A 77276 77277A 77277R 77285B 77286B 77289A 77290 77293A 77310A 77316 77350 77358A 77366 77380 77391 7741110010 77412 77641A 77653A 77740 77763 77763 9011908866 9011908866 9011910252 9015940155 9015950153 9015950219 9015950219 9015960175 9017910112 9018905072 9046020004 9046046003 9046400395 9046400517 9046716023 9046716023 9046922001 9048001277 9048001544 9048001565 9054105017 9095001028 91611A0818 91656A0616 91656A0616 9338515014 93385A0612 93385A6010 9533308020 9613230800 9613241100 9613241300 9613541100
Part # Description Qty Price
77034A - CRIP (FOR FUEL TANK FILLER PIPE)
90467-07109

EP8#,NP80

 5
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-10050

EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

CYUHATSU

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-10010

EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

 1
77249 - HOSE, FUEL EMISSION
77249-10050

EP8#

 1
77251B - TUBE, FUEL MAIN
77251-10290

EP85

 1
77255D - TUBE, FUEL RETURN
77255-10260

EP85

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
90447-19001

EP85

長さ=400

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-10030

EP8#,NP80

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-10050

EP8#,NP80

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-10030

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-10010

EP8#,NP80

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-10010

EP8#..CBR

 1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-10020

EP8#..CBR

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-10010

EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-10020

EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-10050

EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-10020

EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

EP8#,NP80..CBR,DSL

 1
77380-26010

EP85

 1
77391 - RING, FUEL INLET BOX
77391-32010

EP8#,NP80

 1
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-10010

EP8#,NP80

 1
77740 - CANISTER ASSY, CHARCOAL
77704-10130

EP8#

 1
77763 - CASE, CHARCOAL CANISTER DRAIN
77763-10020

EP85..5F;EP82..MTM..EFI;EP82..(3FC,4F,5F)..(CBR,TBO)

 1
77763 - CASE, CHARCOAL CANISTER DRAIN
77763-10020

EP85..5F;EP82..MTM..EFI;EP82..(3FC,4F,5F)..(CBR,TBO)

 1
Common parts
77411-10010
90119-08866
90119-10252
90159-40155
90159-50153
90159-50219
90159-60175
90179-10112
90189-05072
90460-20004
90460-46003
90464-00395
90464-00517
90467-16023
90469-22001
90480-01277
90480-01544
90480-01565
90541-05017
90950-01028
91611-A0818
91656-A0616
93385-15014
93385-A0612
93385-A6010
95333-08020
96132-30800
96132-41100
96132-41300
96135-41100
Linked diagrams
2211
2301
