EP85-AHMNU (1990)

Toyota Starlet

Production Aug 1990 - Jan 1992
Engine 4EF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)CAN,S,X

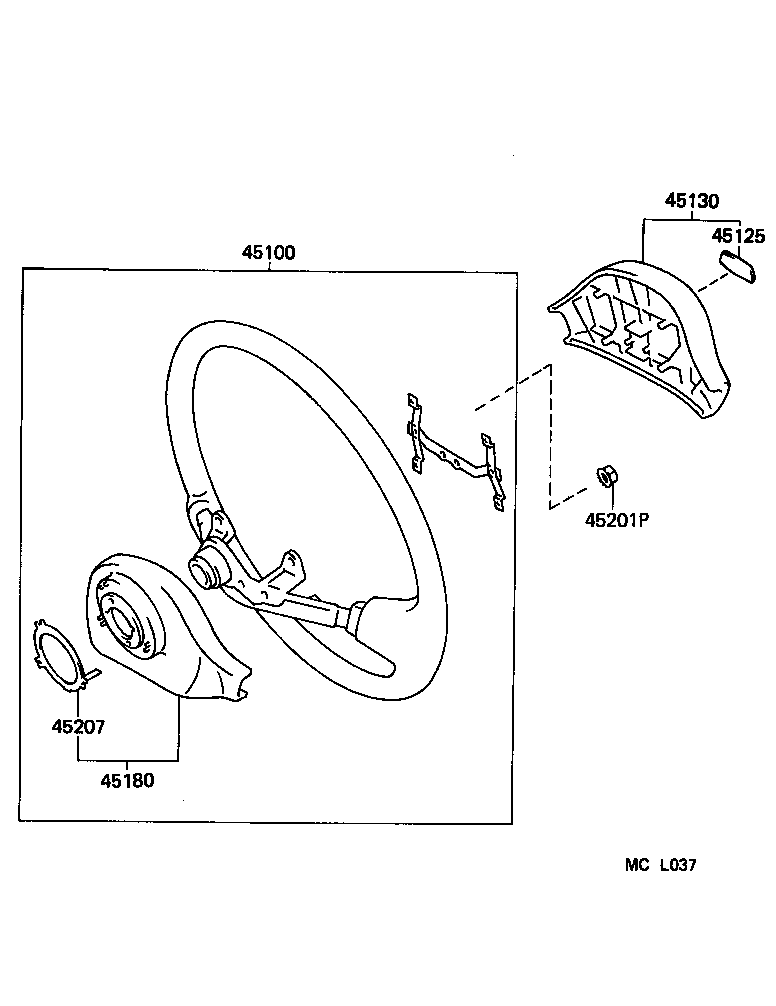

Click highlighted areas on diagram

2-SPOKE,ｳﾚﾀﾝ

diagram 45100 45130 45180 45201P 45207
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1032006

EP85

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,2-SPOKE,ｳﾚﾀﾝ,SABLE,SABLE,TRIM4#

 1
45100-1032003

EP85

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,2-SPOKE,ｳﾚﾀﾝ,GRAY,GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-1021006

EP85

2-SPOKE,ｳﾚﾀﾝ,SABLE,SABLE,TRIM4#

 1
45130-1021003

EP85

2-SPOKE,ｳﾚﾀﾝ,GRAY,GRAY,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1002006

EP85;EP82,NP80..X

SABLE,TRIM4#

 1
45180-1002003

EP85;EP82,NP80..CAN,S,X

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP8#,NP80

 1
45207 - RING, HORN CONTACT
45176-24020

EP85;EP82,NP80..CAN,S,X

 1

(9008-9201)EP85

Click highlighted areas on diagram

2-SPOKE,ｳﾚﾀﾝ

diagram 45100 45125 45130 45180 45201P 45207
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1032006

EP85

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,2-SPOKE,ｳﾚﾀﾝ,SABLE,SABLE,TRIM4#

 1
45100-1032003

EP85

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,2-SPOKE,ｳﾚﾀﾝ,GRAY,GRAY,TRIM1#

 1
45125 - MARK, STEERING WHEEL PAD
45125-1021003

EP85

GRAY,TRIM1#

 1
45125-1021006

EP85

SABLE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-1021006

EP85

2-SPOKE,ｳﾚﾀﾝ,SABLE,SABLE,TRIM4#

 1
45130-1021003

EP85

2-SPOKE,ｳﾚﾀﾝ,GRAY,GRAY,TRIM1#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1002006

EP85;EP82,NP80..X

SABLE,TRIM4#

 1
45180-1002003

EP85;EP82,NP80..CAN,S,X

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP8#,NP80

 1
45207 - RING, HORN CONTACT
45176-24020

EP85;EP82,NP80..CAN,S,X

 1
