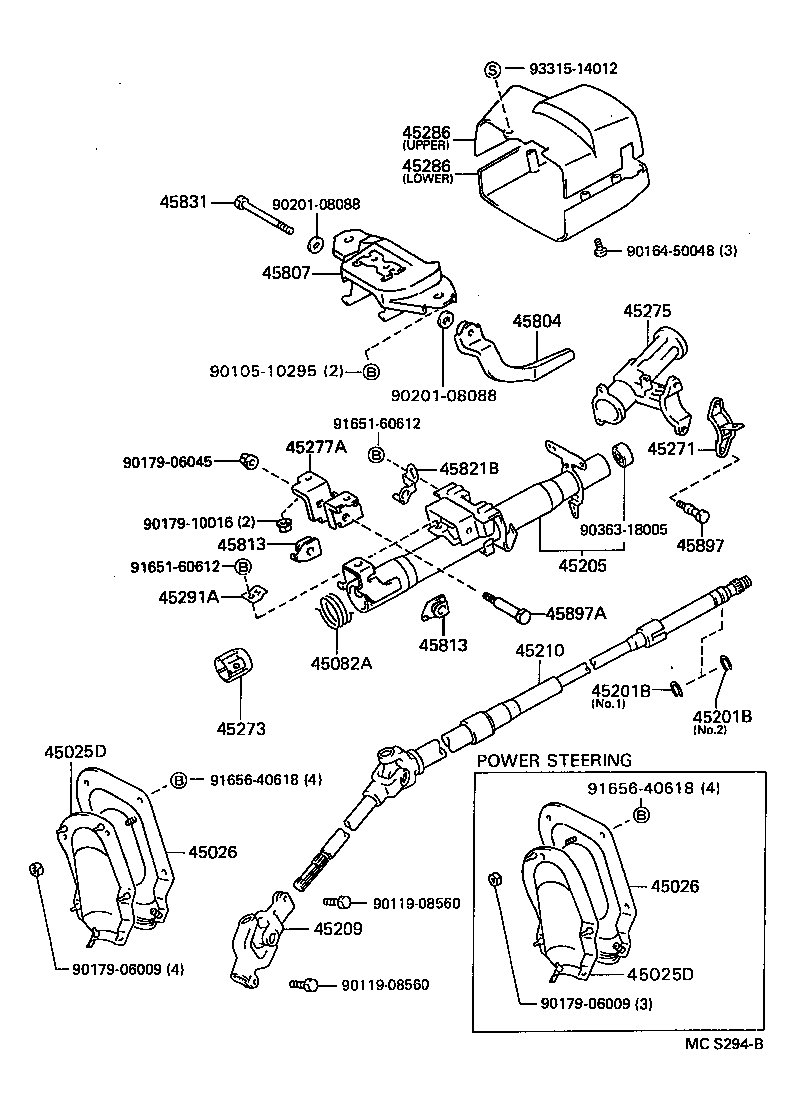

EP85-AHMNK (1992)
Toyota Starlet
(8912-9409)
ｺﾗﾌﾟｼﾌﾞﾙ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-32029 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-10040 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI |
1 | ||
| 45204-10060 |
EP8#..CAN,GI,GT,S,XLTD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16080 |
NP80;EP8#..SOL,SOLL |
1 | ||
| 45205-10190 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI |
1 | ||
| 45205-16090 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-10030 |
EP8#..SOLL,XLTD |
1 | ||
| 45209-10050 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-10150 |
EP8#..SOLL,XLTD |
1 | ||
| 45210-10170 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-10080 |
EP8#,NP80 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20030 |
EP8#,NP80 |
1 | ||
| 45273-16020 |
EP8#,NP80 |
1 | ||
| 45273-16010 |
EP8#,NP80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-10070 |
EP8#,NP80..MTM |
1 | ||
| 45280-18010 |
EP8#,NP80..MTM |
1 | ||
| 45280-18011 |
EP8#,NP80..MTM |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-16030 |
EP8#,NP80 |
1 | ||
| 45277-10010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-12010 |
EP8#,NP80 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-16010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-10010 |
EP8#,NP80 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-16040 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45804-10010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-10050 |
EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45807-10052 |
EP8#..CAN,GI,GT,S,XLTD |
1 | ||
| 45807-16050 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-16010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-16020 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EP8#,NP80 |
2 | ||
| 45897-32010 |
EP8#,NP80 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-16010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45897-16020 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90105-10295 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06045 | ||||
| 90179-06170 | ||||
| 90179-10016 | ||||
| 90201-08088 | ||||
| 90363-18005 | ||||
| 90386-08034 | ||||
| 91651-60612 | ||||
| 91656-40618 | ||||
| 93315-14012 | ||||

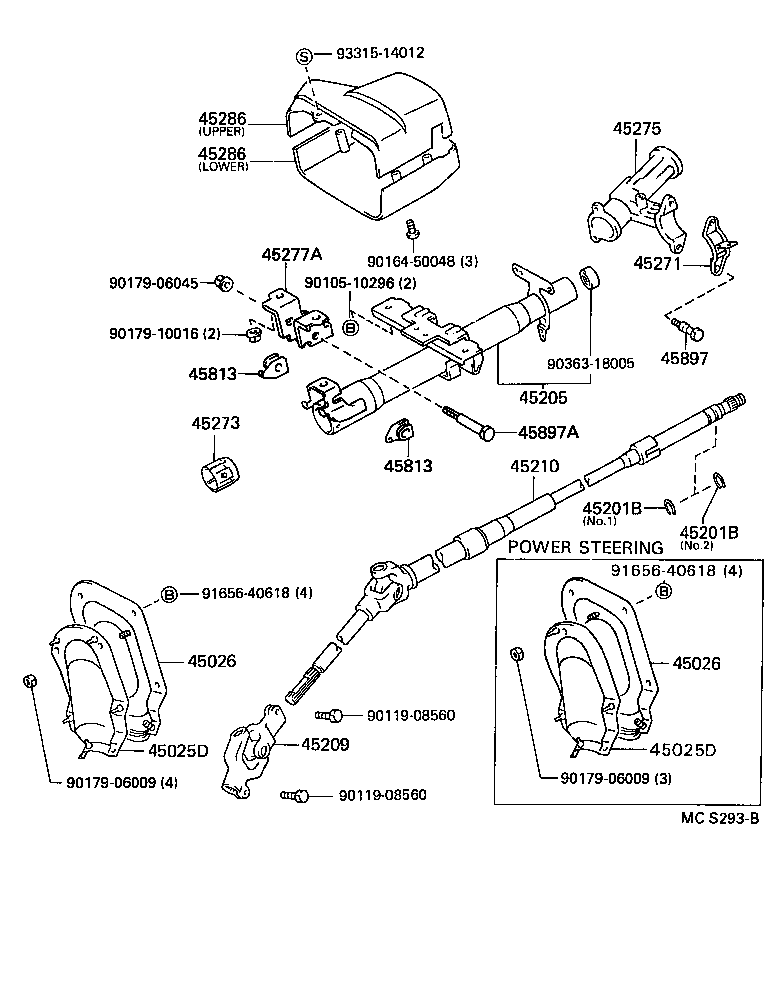

(8912-9409)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-10040 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI |
1 | ||
| 45204-10060 |
EP8#..CAN,GI,GT,S,XLTD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16080 |
NP80;EP8#..SOL,SOLL |
1 | ||
| 45205-10190 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI |
1 | ||
| 45205-16090 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-10030 |
EP8#..SOLL,XLTD |
1 | ||
| 45209-10050 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-10150 |
EP8#..SOLL,XLTD |
1 | ||
| 45210-10170 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-10080 |
EP8#,NP80 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20030 |
EP8#,NP80 |
1 | ||
| 45273-16020 |
EP8#,NP80 |
1 | ||
| 45273-16010 |
EP8#,NP80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-10070 |
EP8#,NP80..MTM |
1 | ||
| 45280-18010 |
EP8#,NP80..MTM |
1 | ||
| 45280-18011 |
EP8#,NP80..MTM |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-12010 |
EP8#,NP80 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-10010 |
EP8#,NP80 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EP8#,NP80 |
2 | ||
| 45897-32010 |
EP8#,NP80 |
2 | ||
| Common parts | ||||
| 90105-10295 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06170 | ||||
| 90179-10016 | ||||
| 90363-18005 | ||||
| 91656-40618 | ||||
| 93315-14012 | ||||
(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16080 |
NP80;EP8#..SOL,SOLL |
1 | ||
| 45205-10190 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI |
1 | ||
| 45205-16090 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-10030 |
EP8#..SOLL,XLTD |
1 | ||
| 45209-10050 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-10150 |
EP8#..SOLL,XLTD |
1 | ||
| 45210-10170 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-10080 |
EP8#,NP80 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20030 |
EP8#,NP80 |
1 | ||
| 45273-16020 |
EP8#,NP80 |
1 | ||
| 45273-16010 |
EP8#,NP80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-10070 |
EP8#,NP80..MTM |
1 | ||
| 45280-18010 |
EP8#,NP80..MTM |
1 | ||
| 45280-18011 |
EP8#,NP80..MTM |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-16030 |
EP8#,NP80 |
1 | ||
| 45277-10010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-16030 |
EP8#,NP80 内径=8,外径=10 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-16030 |
EP8#,NP80 内径=8,外径=10 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EP8#,NP80 |
2 | ||
| 45897-32010 |
EP8#,NP80 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-16010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45897-16020 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90105-10296 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06009 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90363-18005 | ||||
| 91656-40618 | ||||
| 93315-14012 | ||||
(9409- )
ｺﾗﾌﾟｼﾌﾞﾙ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10090 |
EP8#..SOLL,XLTD |
1 | ||
| 45025-10090 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10040 |
EP8#..SOLL,XLTD |
1 | ||
| 45026-10040 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-32029 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EP8#,NP80 厚さ=1.20 |
2 | ||
| 90520-17196 |
EP8#,NP80 厚さ=1.35−1.45 |
2 | ||
| 90520-17042 |
EP8#,NP80 厚さ=1.20,NO.1 |
1 | ||
| 90520-17269 |
EP8#,NP80 厚さ=1.20,NO.2 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-10190 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI |
1 | ||
| 45205-16080 |
NP80;EP8#..SOL,SOLL |
1 | ||
| 45205-16090 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-10030 |
EP8#..SOLL,XLTD |
1 | ||
| 45209-10050 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-10150 |
EP8#..SOLL,XLTD |
1 | ||
| 45210-10170 |
EP8#,NP80..CAN,GI,GT,S,SOLL,XLTD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-10080 |
EP8#,NP80 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20030 |
EP8#,NP80 |
1 | ||
| 45273-16020 |
EP8#,NP80 |
1 | ||
| 45273-16010 |
EP8#,NP80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-10070 |
EP8#,NP80..MTM |
1 | ||
| 45280-18010 |
EP8#,NP80..MTM |
1 | ||
| 45280-18011 |
EP8#,NP80..MTM |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-16030 |
EP8#,NP80 |
1 | ||
| 45277-10010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1090303 |
EP8#,NP80..CAN,S,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 45286-1090306 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 45287-10131E0 |
EP8#..SOLL;NP80..XLTD LOWER,OAK,OAK,TRIM4# |
1 | ||
| 45286-10171P0 |
NP80;EP8#..SOL,SOLL UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10131P0 |
NP80;EP8#..SOL,SOLL LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10201P0 |
EP8#..CAN,S,XLTD UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-10161P0 |
EP8#..CAN,S,XLTD LOWER,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-10171E0 |
EP8#..SOLL;NP80..XLTD UPPER,OAK,OAK,TRIM4# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-16010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-16040 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45804-10010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-10050 |
EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45807-10052 |
EP8#..CAN,GI,GT,S,XLTD |
1 | ||
| 45807-16050 |
EP8#..GI,GT,S,XLTD |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-16030 |
EP8#,NP80 内径=8,外径=10 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-16030 |
EP8#,NP80 内径=8,外径=10 |
2 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-16010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-16020 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EP8#,NP80 |
2 | ||
| 45897-32010 |
EP8#,NP80 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-16010 |
EP82..CAN..EFI;EP8#..CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 45897-16020 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90105-10295 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06009 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90201-08088 | ||||
| 90363-18005 | ||||
| 91651-60612 | ||||
| 91656-40618 | ||||
| 93315-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
