EP85-AGPYU (1990)
Toyota Starlet
(8912-9201)4EF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11430 |
4EF..EP8# NO.1 |
1 | ||
| 17303-11620 |
4EF..EP8# NO.3 |
1 | ||
| 17303-11460 |
4EF..EP8# NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11430 |
4EF..EP8# NO.1 |
1 | ||
| 17303-11620 |
4EF..EP8# NO.3 |
1 | ||
| 17303-11460 |
4EF..EP8# NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11430 |
4EF..EP8# NO.1 |
1 | ||
| 17303-11620 |
4EF..EP8# NO.3 |
1 | ||
| 17303-11460 |
4EF..EP8# NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-11160 |
4EF..EP8# NO.4 |
1 | ||
| 25860-11130 |
4EF..EP8# NO.1 |
1 | ||
| 90910-12009 |
4EF..EP8# NO.2 |
1 | ||
| 25860-11150 |
4EF..EP8# NO.3 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-11160 |
4EF..EP8# NO.4 |
1 | ||
| 25860-11130 |
4EF..EP8# NO.1 |
1 | ||
| 90910-12009 |
4EF..EP8# NO.2 |
1 | ||
| 25860-11150 |
4EF..EP8# NO.3 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-11160 |
4EF..EP8# NO.4 |
1 | ||
| 25860-11130 |
4EF..EP8# NO.1 |
1 | ||
| 90910-12009 |
4EF..EP8# NO.2 |
1 | ||
| 25860-11150 |
4EF..EP8# NO.3 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-11160 |
4EF..EP8# NO.4 |
1 | ||
| 25860-11130 |
4EF..EP8# NO.1 |
1 | ||
| 90910-12009 |
4EF..EP8# NO.2 |
1 | ||
| 25860-11150 |
4EF..EP8# NO.3 |
1 | ||
| 21999 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-11070 |
4EF..EP8# NO.2 |
1 | ||
| 21999-10010 |
4EF..EP8# NO.1 |
1 | ||
| 21999 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-11070 |
4EF..EP8# NO.2 |
1 | ||
| 21999-10010 |
4EF..EP8# NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-11040 |
4EF..EP8# |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25810-11080 |
4EF..EP8# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4EF..EP8# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01101 |
4EF..EP8# NO.2 |
1 | ||
| 90925-01100 |
4EF..EP85..4FC |
1 | ||
| 90925-01100 |
4EF..EP8#..ATM NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01101 |
4EF..EP8# NO.2 |
1 | ||
| 90925-01100 |
4EF..EP85..4FC |
1 | ||
| 90925-01100 |
4EF..EP8#..ATM NO.1 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4EF..EP85..4FC |
1 | ||
| 90917-10049 |
4EF..EP8# NO.1 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4EF..EP85..4FC |
1 | ||
| 90917-10049 |
4EF..EP8# NO.1 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4EF..EP85..4FC |
1 | ||
| 90917-10049 |
4EF..EP8# NO.1 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4EF..EP85..4FC |
1 | ||
| 90917-10049 |
4EF..EP8# NO.1 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04029 |
4EF..EP8# |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11100 |
4EF..EP8# |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 90925-05071 |
4EF..EP8# |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 89470-10030 |
4EF..EP8# |
1 | ||
| Common parts | ||||
| 87616-22010 | ||||
| 90119-08813 | ||||
| 90339-03002 | ||||
| 90412-06070 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90414-04001 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00393 | ||||
| 90910-05211 | ||||
| 90999-92001 | ||||
| 90999-92002 | ||||
| 91655-60820 | ||||
| 95413-49928 | ||||

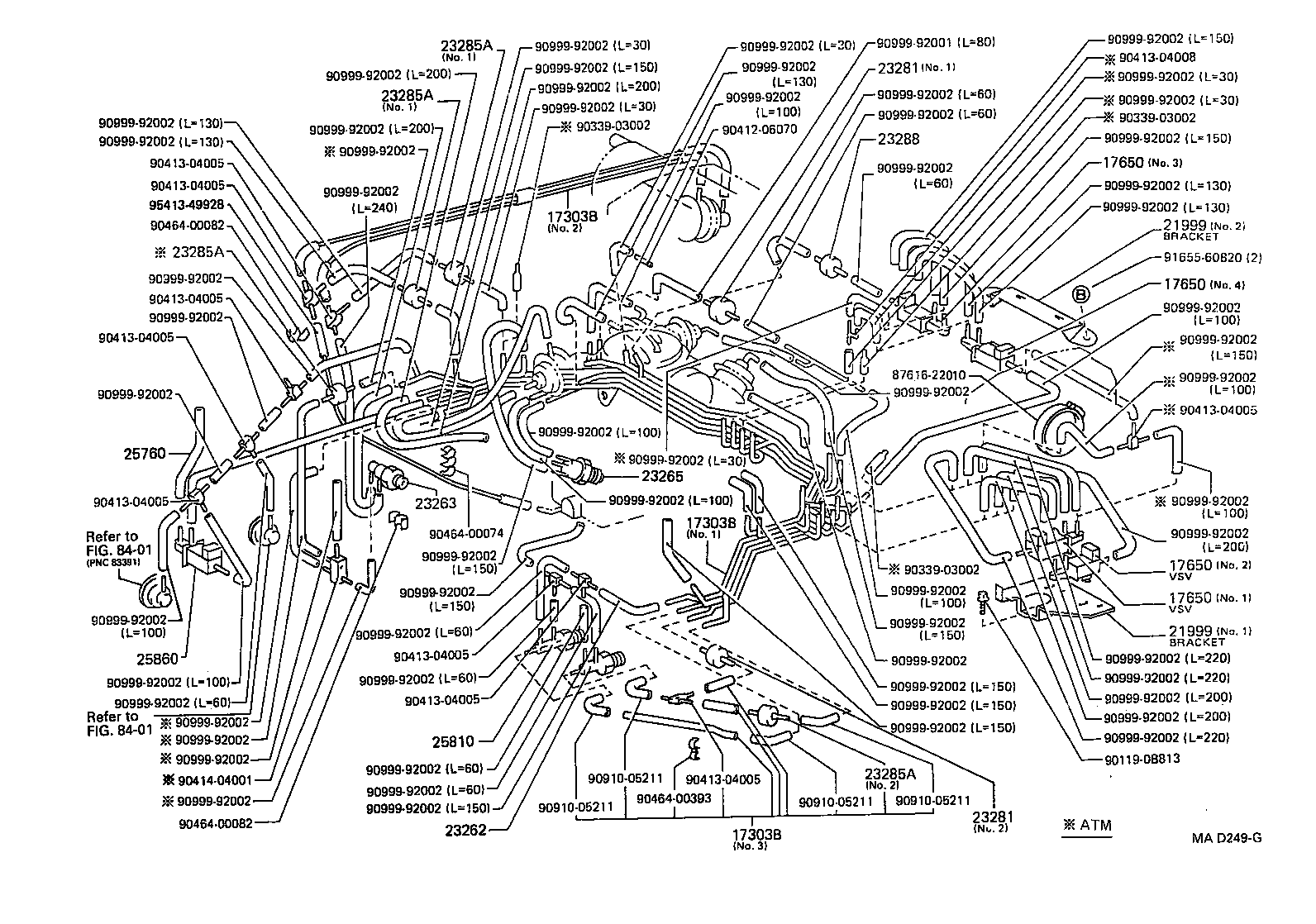

| Linked diagrams | ||||
| 8401 | ||||
