EP85-AGPNU (1990)

Toyota Starlet

Production Aug 1990 - Jan 1992
Engine 4EF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )EP85

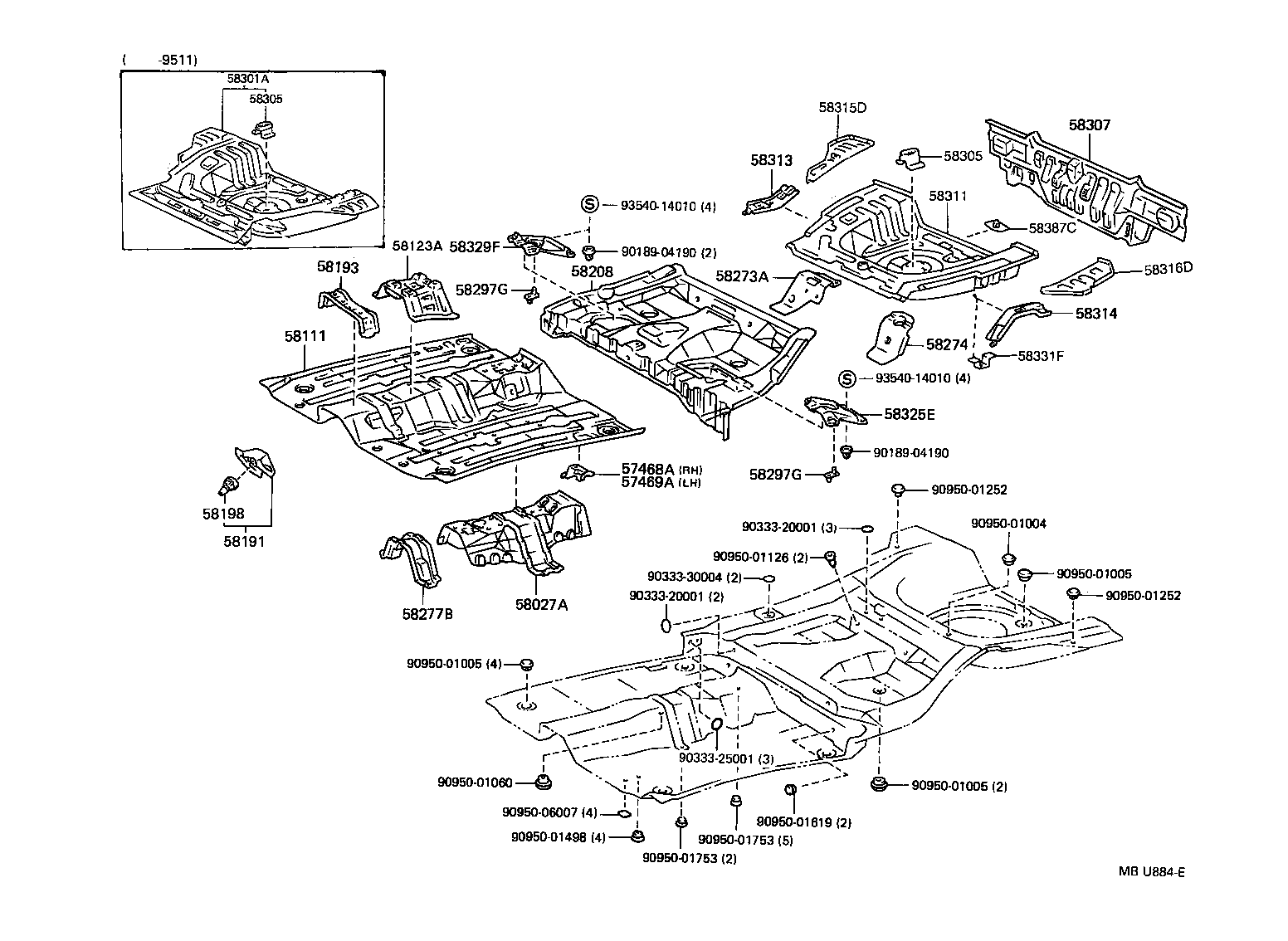

Click highlighted areas on diagram

diagram 57468A 57469A 58027A 58111 58123A 58191 58193 58198 58208 58273A 58274 58277B 58297G 58297G 58301A 58305 58305 58307 58311 58313 58314 58315D 58316D 58325E 58329F 58331F 58387C 9018904190 9018904190 9033320001 9033320001 9033325001 9033330004 9095001004 9095001005 9095001005 9095001005 9095001060 9095001126 9095001252 9095001252 9095001498 9095001619 9095001753 9095001753 9095006007 9354014010 9354014010
Part # Description Qty Price
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-10030

EP8#,NP80

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-10030

EP8#,NP80

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-10040

EP8#,NP80

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-10030

EP8#,NP80

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-10270

EP8#,NP80

 1
Common parts
90189-04190
90333-20001
90333-25001
90333-30004
90950-01004
90950-01005
90950-01060
90950-01126
90950-01252
90950-01498
90950-01619
90950-01753
90950-06007
93540-14010
