EP85-AGMSK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9601)4EF#

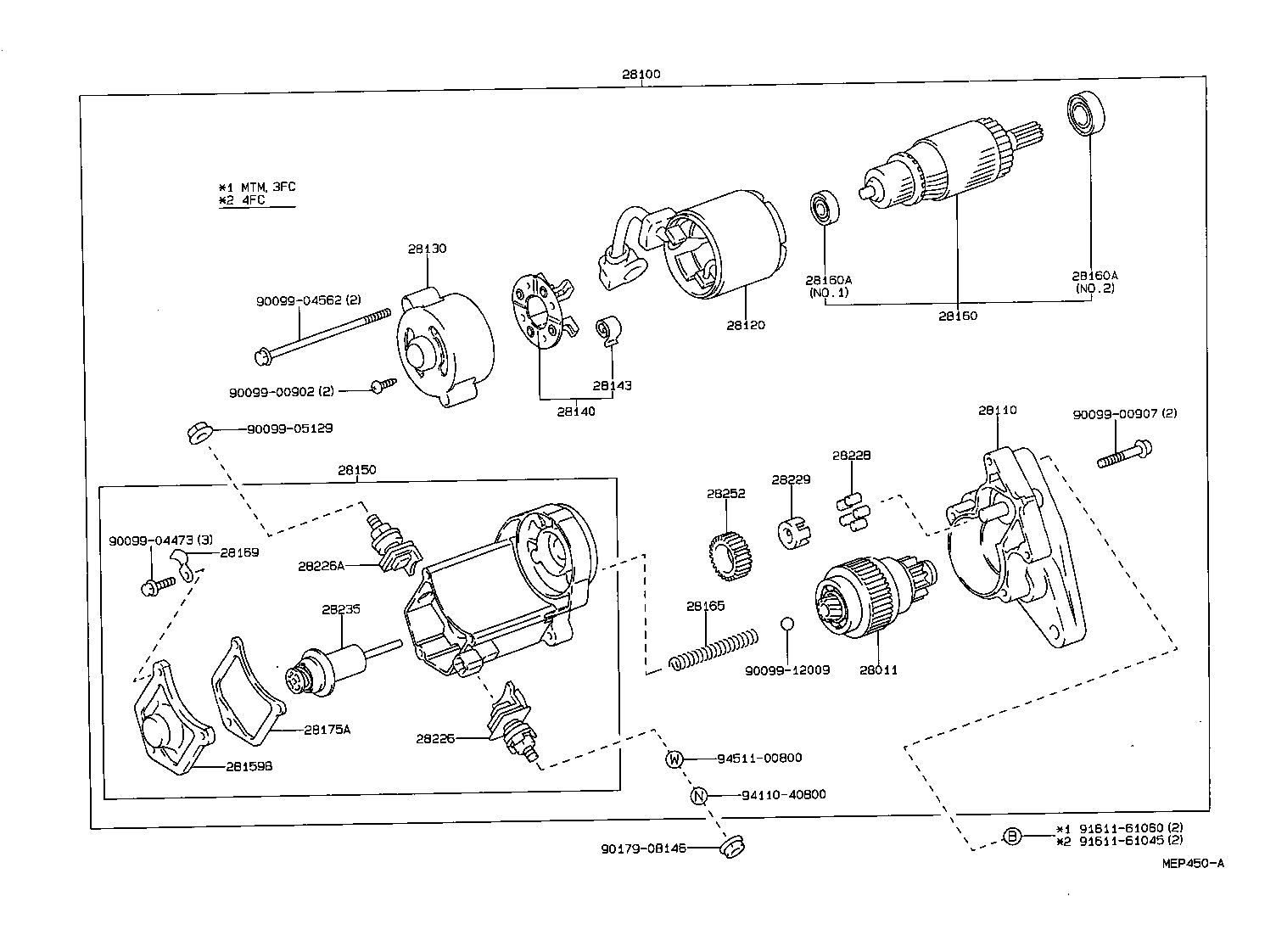

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 28226 28226A 28228 28229 28235 28252 9009900902 9009900907 9009904473 9009904562 9009905129 9009912009 9017908146 9161161045 9161161060 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-10030

4EF#..EP8#

 1
28011-26042

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28100 - STARTER ASSY
28100-10040

4EF#..EP8#..3FC,4F,5F

12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28100-11100

4EF#..EP8#..3FC,4F,5F

12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28100-10030

4EF#..EP8#..3FC,4F,5F

12V 0.8KW

 1
28100-11080

4EFE..EP8#..3FC,4F,5F

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-10030

4EF#..EP8#..3FC,4F,5F

 1
28110-10040

4EF#..EP8#..3FC,4F,5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28120 - YOKE ASSY, STARTER
28120-15010

4EF#..EP8#

 1
28120-26071

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-10040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28130-10030

4EF#..EP8#

 1
28130-34060

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15010

4EF#..EP8#

 1
28140-26070

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28143 - SPRING, STARTER BRUSH
90099-17112

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-37010

4EF#..EP8#

 1
28150-34080

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28150-11100

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28150-11080

4EFE..EP8#..3FC,4F,5F

 1
28159B - COVER, MAGNET SWITCH
28159-10040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28159-10040

4EF#..EP8#..3FC,4F,5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28159-10040

4EF#,1N..EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28159-10040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28160 - ARMATURE ASSY, STARTER
28160-15010

4EF#..EP8#

 1
28160-26071

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1

 1
90099-10113

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1

 1
90099-10113

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

4EF#,1N..EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28165-26040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28165-26040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28169-10040

4EF#..EP8#..3FC,4F,5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28169-10040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28175-10040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28175-10040

4EF#..EP8#..3FC,4F,5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28175-10040

4EF#,1N..EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-72080

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28226-72010

4EF#,1N..EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28229-26040

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28229-26040

4EF#,1N..EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28235 - PLUNGER, MAGNET SWITCH
28235-35080

4EF#..EP8#..3FC,4F,5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28235-35080

4EF#,1N..EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28235-35080

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28235-35080

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
28252 - GEAR, STARTER IDLE
28254-45020

4EF#..EP8#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-12009
90179-08146
91611-61045
91611-61060
94110-40800
94511-00800
