EP82-AHPSK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

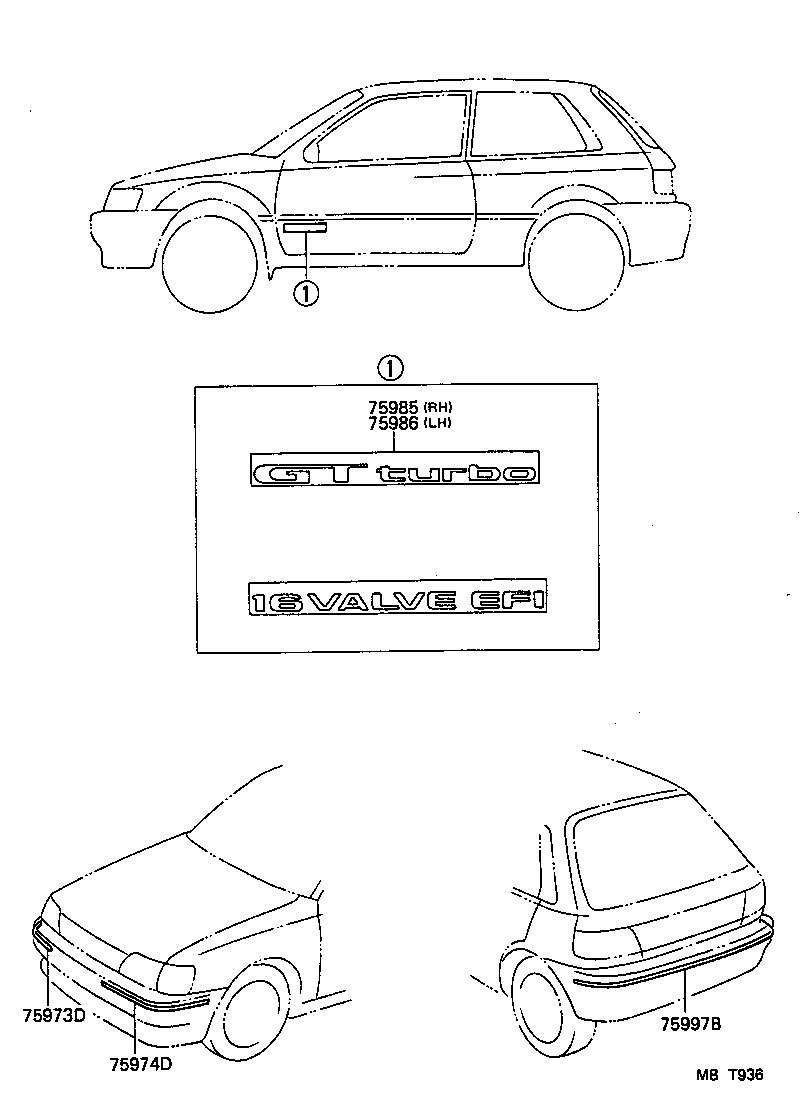

ILLUST NO. 1 OF 2(8912- )

Click highlighted areas on diagram

diagram 75973D 75974D 75985 75986 75997B
Part # Description Qty Price

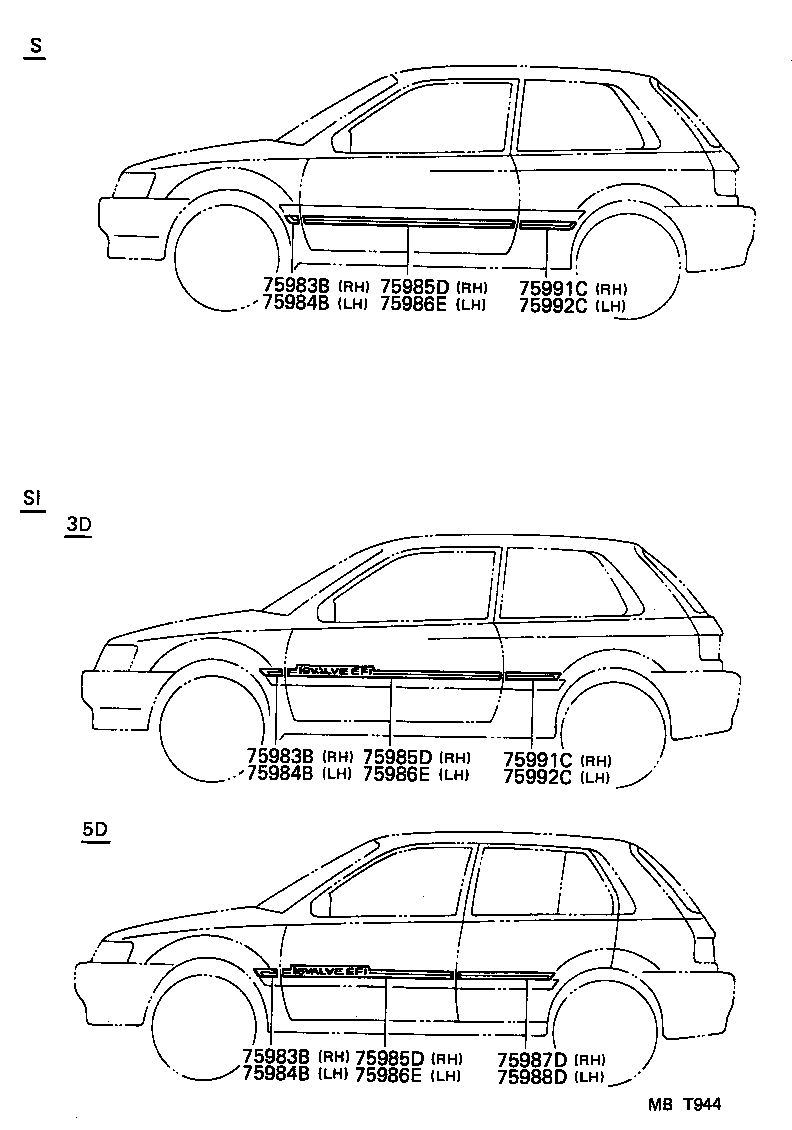

ILLUST NO. 2 OF 2(8912-9201)S,SI

Click highlighted areas on diagram

diagram 75983B 75983B 75983B 75984B 75984B 75984B 75985D 75985D 75985D 75986E 75986E 75986E 75987D 75988D 75991C 75991C 75992C 75992C
Part # Description Qty Price
75983B - STRIPE, FRONT FENDER, REAR RH
75983-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-1022013

EP82..SI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-1022003

EP82..SI

SILVER,3E5 ,3H4

 1
75983-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75983B - STRIPE, FRONT FENDER, REAR RH
75983-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-1022013

EP82..SI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-1022003

EP82..SI

SILVER,3E5 ,3H4

 1
75983-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75983B - STRIPE, FRONT FENDER, REAR RH
75983-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-1022013

EP82..SI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-1022003

EP82..SI

SILVER,3E5 ,3H4

 1
75983-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984B - STRIPE, FRONT FENDER, REAR LH
75984-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-1022013

EP82..SI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-1022003

EP82..SI

SILVER,3E5 ,3H4

 1
75984B - STRIPE, FRONT FENDER, REAR LH
75984-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-1022013

EP82..SI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-1022003

EP82..SI

SILVER,3E5 ,3H4

 1
75984B - STRIPE, FRONT FENDER, REAR LH
75984-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-1022013

EP82..SI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-1022003

EP82..SI

SILVER,3E5 ,3H4

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-1048003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75985-1048013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-1051013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-1051003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-1048003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75985-1048013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-1051013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-1051003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-1048003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75985-1048013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-1051013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-1051003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-1047013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986-1047003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75986-1050003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75986-1050013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-1047013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986-1047003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75986-1050003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75986-1050013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-1047013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986-1047003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75986-1050003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75986-1050013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75987D - STRIPE, REAR DOOR, OUTSIDE, RH
75987-1022013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75987-1022003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75988D - STRIPE, REAR DOOR OUTSIDE, LH
75988-1022003

EP82..5D..EFI

SILVER,3E5 ,3H4

 1
75988-1022013

EP82..5D..EFI

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75991C - STRIPE, QUARTER RH
75991-1036013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75991-1036003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75991C - STRIPE, QUARTER RH
75991-1036013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75991-1036003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75992C - STRIPE, QUARTER LH
75992-1034003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75992-1034013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75992C - STRIPE, QUARTER LH
75992-1034003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75992-1034013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
