EP82-AHMSK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9601)

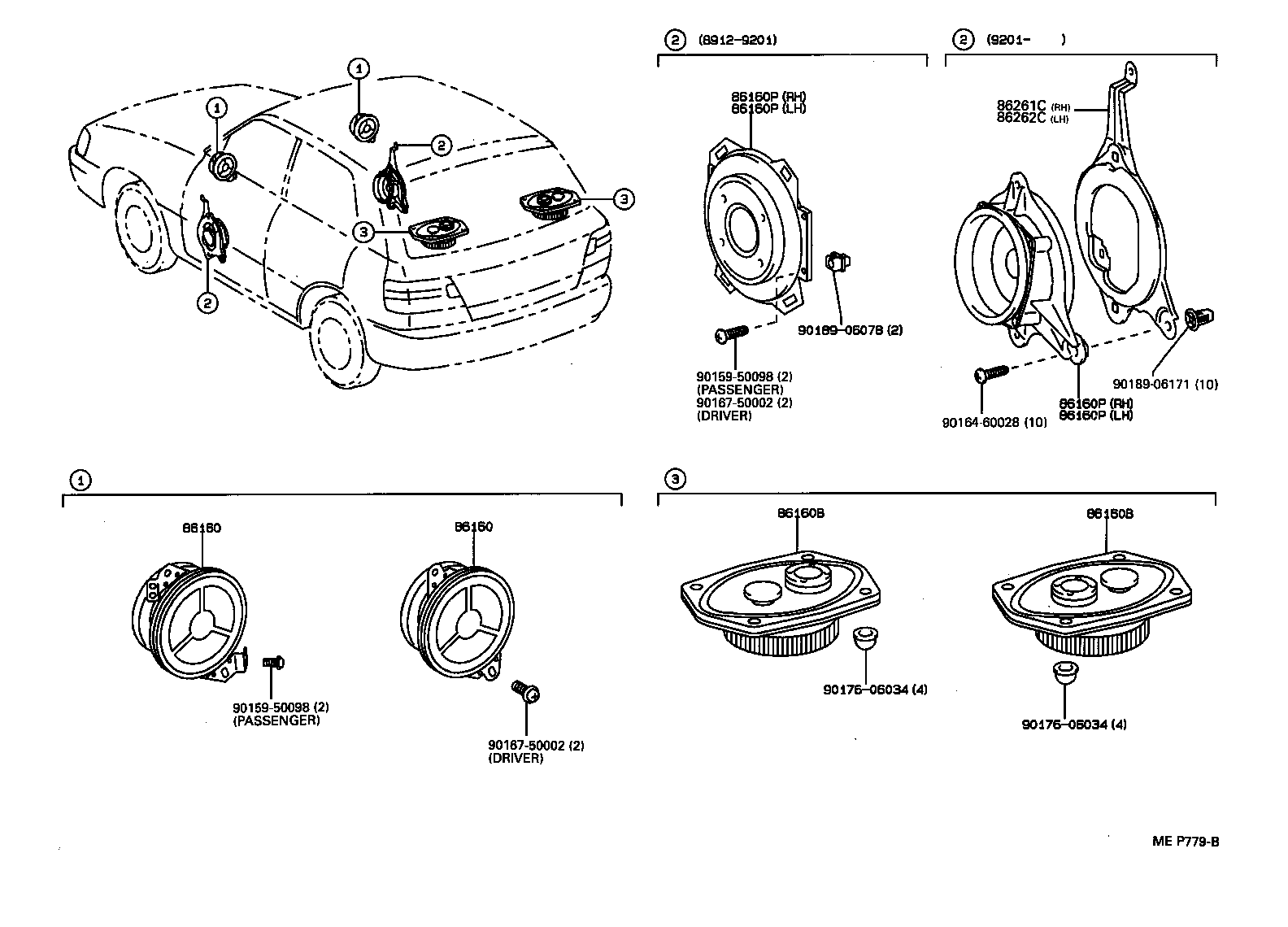

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160P 86160P 86160P 86160P 86261C 86262C 9015950098 9015950098 9016460028 9016750002 9016750002 9017606034 9017606034 9018906078 9018906171
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-10250

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

2SP,運転席

 1
86160-10260

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

2SP,助手席

 1
86160-10260

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-10250

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

2SP,運転席

 1
86160-10260

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

2SP,助手席

 1
86160-10260

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

 1
Common parts
90159-50098
90164-60028
90167-50002
90176-06034
90189-06078
90189-06171
