EP82-AHMSK (1989)
Toyota Starlet

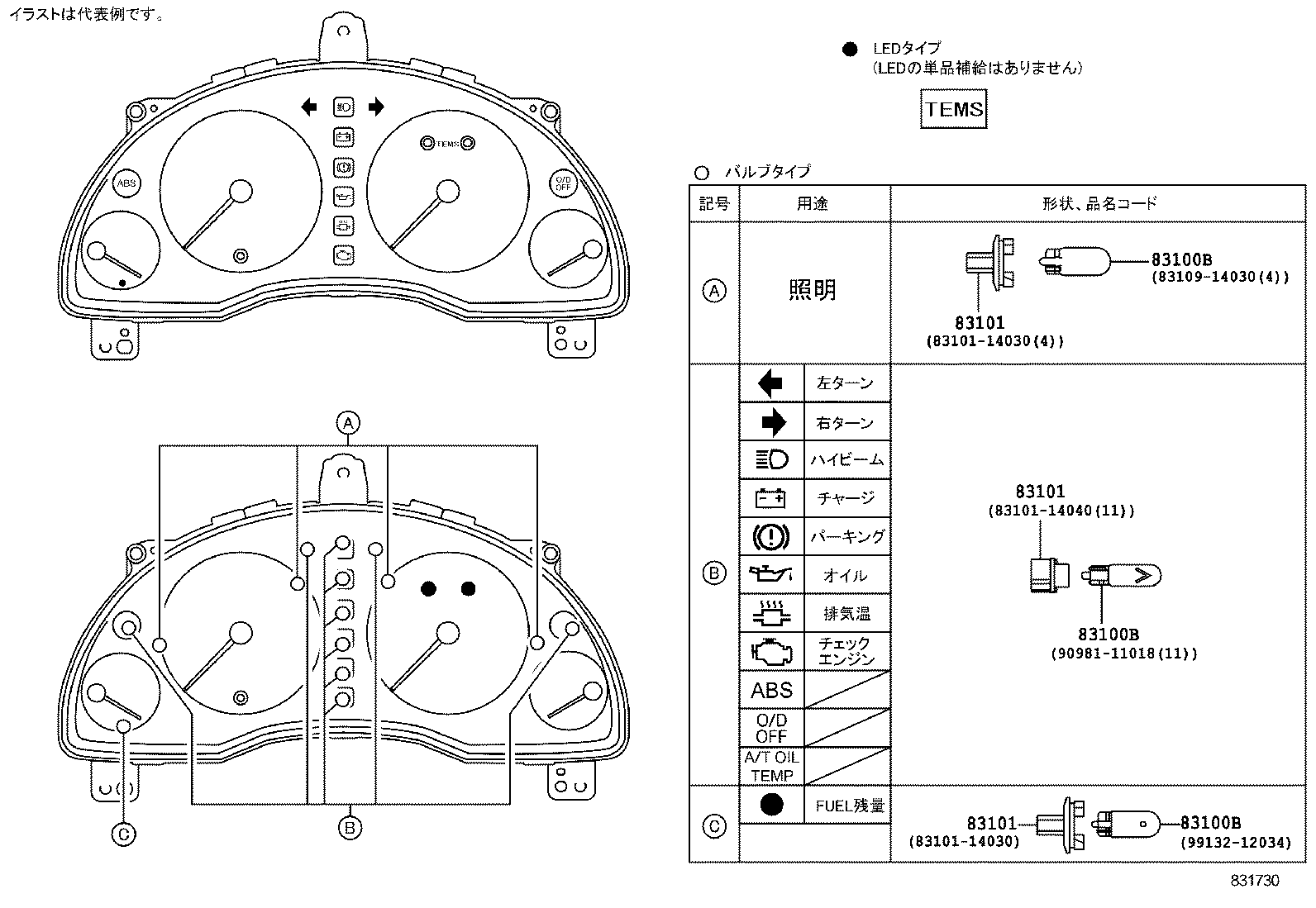

ILLUST NO. 2 OF 5(8912-9201)CAN,CANSI,GI,GT,S,SI,X,XLTD
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD 12V 3.4W |
1 | ||
| 90981-11018 |
EP8#,NP80 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-14030 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD 12V 3.4W |
1 | ||
| 90981-11018 |
EP8#,NP80 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-14030 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD 12V 3.4W |
1 | ||
| 90981-11018 |
EP8#,NP80 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-14030 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD 12V 3.4W,ｱﾝﾊﾞｰ ｷｬｯﾌﾟ |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP8#,NP80 ﾊﾞﾙﾌﾞ=1.2W OR 1.4W |
1 | ||
| 83101-14030 |
EP8#,NP80 ﾊﾞﾙﾌﾞ=3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP8#,NP80 ﾊﾞﾙﾌﾞ=1.2W OR 1.4W |
1 | ||
| 83101-14030 |
EP8#,NP80 ﾊﾞﾙﾌﾞ=3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EP8#,NP80 ﾊﾞﾙﾌﾞ=1.2W OR 1.4W |
1 | ||
| 83101-14030 |
EP8#,NP80 ﾊﾞﾙﾌﾞ=3.4W |
1 | ||

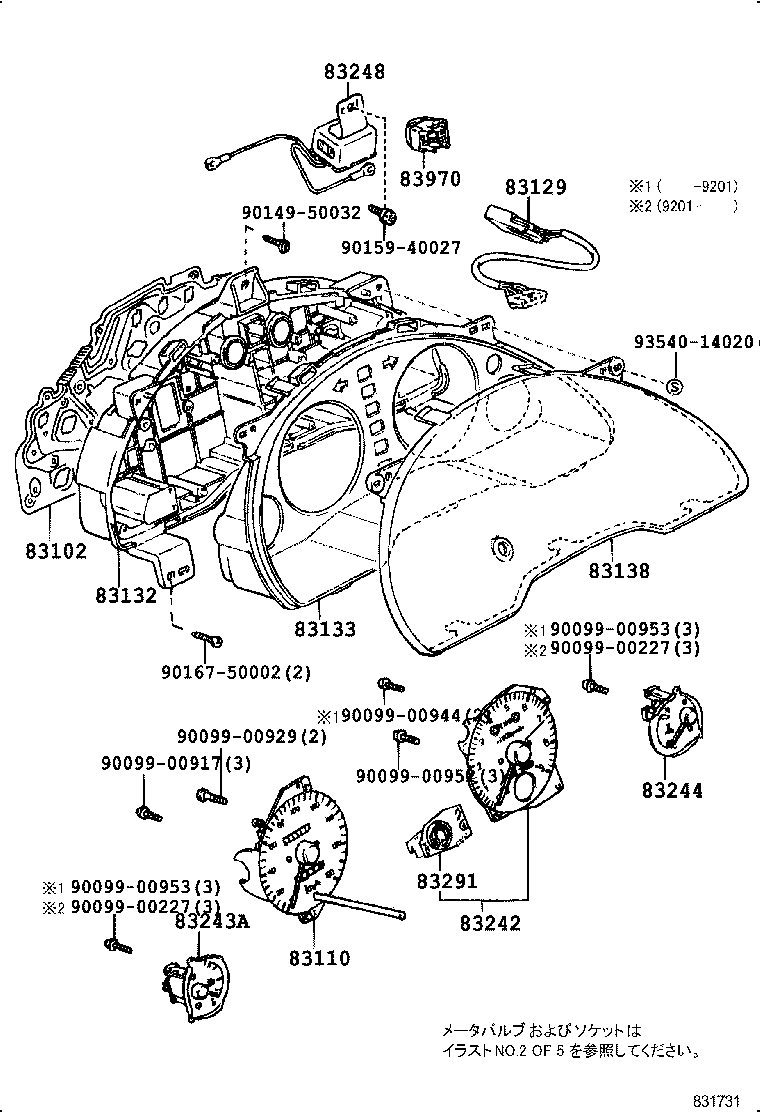

ILLUST NO. 1 OF 5(8912-9201)CAN,CANSI,GI,GT,S,SI,X,XLTD ; (9201-9601)CAN,GI,S,XLTD
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-10010 |
EP82..(3FC,4F,5F)..(CAN,CANSI,GI,S,SI) |
1 | ||
| 83149-10030 |
EP82..S ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83149-10050 |
EP82..5F..EFI ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83149-10030 |
EP82..CAN,S ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-10860 |
EP8#..CAN,CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1C030 |
EP82..S ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83132-1C050 |
EP82..5F..EFI ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83132-1C010 |
EP82..(3FC,4F,5F)..(CAN,CANSI,GI,GT,S,SI) |
1 | ||
| 83132-1C030 |
EP82..CAN,S ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10790 |
EP82..(3FC,5F)..(CANSI,GI,S,SI) ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83133-10790 |
EP82..(3FC,4F,5F)..(CAN,CANSI,GI,S,SI) ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
1 | ||
| 83133-10810 |
EP82..(3FC,4F,5F)..(CAN,CANSI,GI,GT,S,SI) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-10430 |
EP8#..CAN,CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10590 |
EP8#..(3FC,4F,5F)..(CAN,S,XLTD) |
1 | ||
| 83242-10610 |
EP82..EFI |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-10430 |
EP82..CAN,CANSI,GI,GT,S,SI |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10250 |
EP8#..CAN,CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-10070 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,XLTD |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-10010 |
EP82,NP80;EP85..4FC |
1 | ||
| Common parts | ||||
| 90099-00227 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00944 | ||||
| 90099-00952 | ||||
| 90099-00953 | ||||
| 90149-50032 | ||||
| 90159-40027 | ||||
| 90167-50002 | ||||
| 93540-14020 | ||||

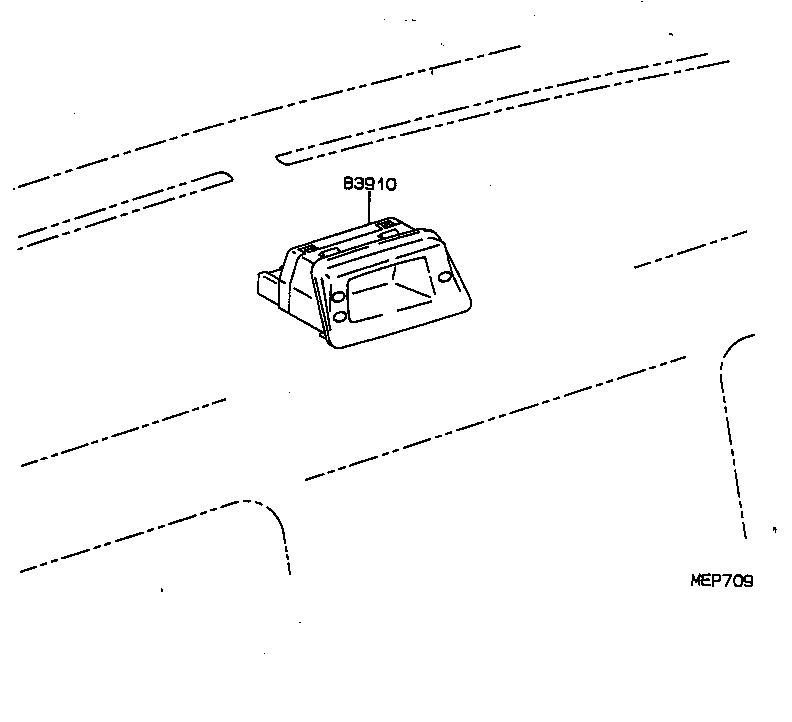

ILLUST NO. 4 OF 5(8912-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-1017004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 83910-1017004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 83910-1017003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 83910-1017004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||

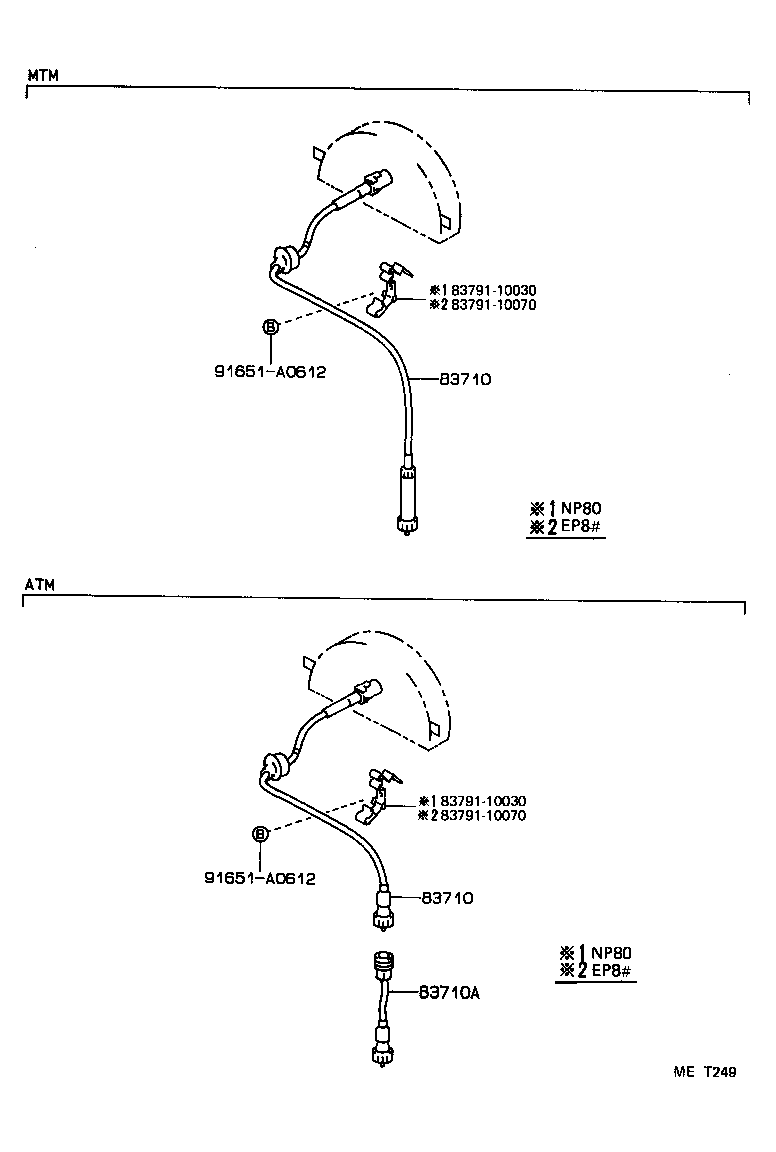

ILLUST NO. 3 OF 4(8912-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-10320 |
EP8#,NP80..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-10320 |
EP8#,NP80..MTM |
1 | ||
| Common parts | ||||
| 83791-10030 | ||||
| 83791-10070 | ||||
| 91651-A0612 | ||||
