EP82-AHMSK (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1992
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9405)EFI

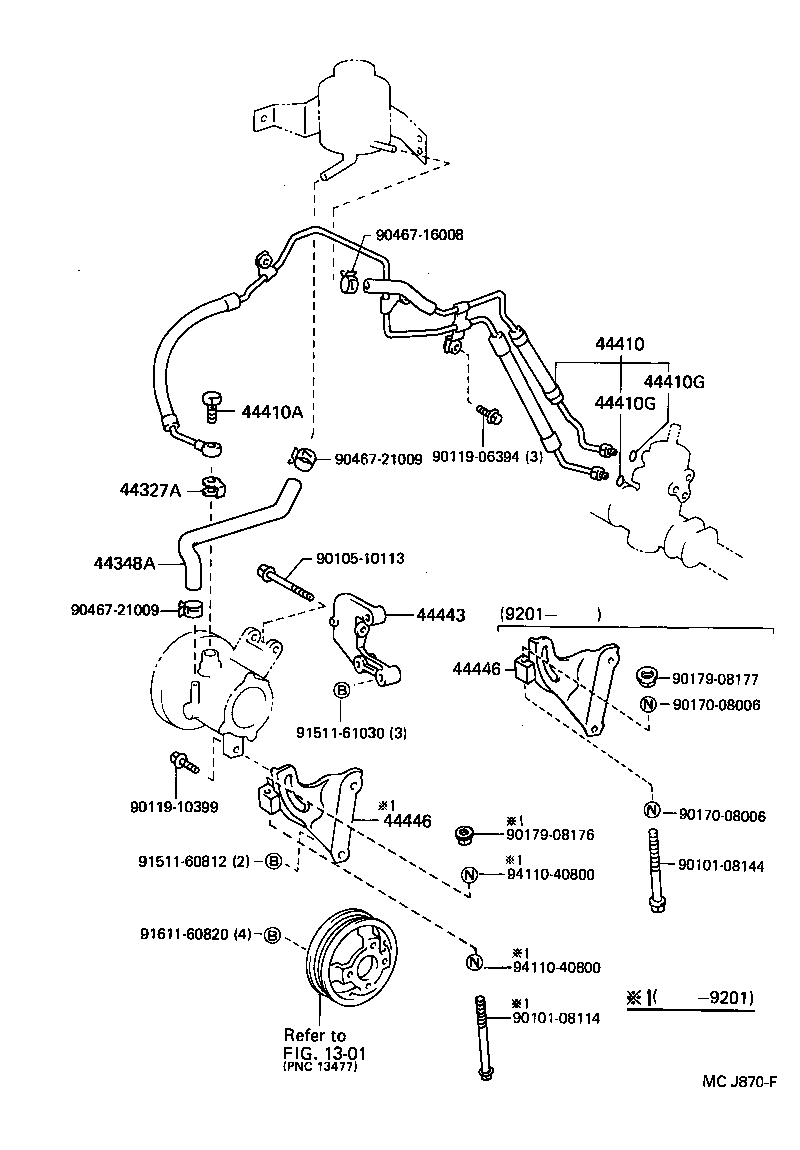

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
EP8#,NP80 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-10050 |
EP85..4FC;EP82..CBR,EFI |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-10030 |
EP82..CANSI,GI,S,SI,X |
1 | ||
| 44410-10030 |
EP82..CAN,CANSI,GI,S,SI,SOL,X |
1 | ||
| 44410-10070 |
EP82..CANSI,GI,S,SI,X ｱﾘ(ABS) |
1 | ||
| 44410-10071 |
EP82..CANSI,GI,S,SI,X ｱﾘ(ABS) |
1 | ||
| 44410-10071 |
EP82..CBR,EFI ｱﾘ(ABS) |
1 | ||
| 44410-10032 |
EP82..CAN,CANSI,GI,S,SI,SOL,X |
1 | ||
| 44410-10031 |
EP82..CAN,CANSI,GI,S,SI,SOL,X |
1 | ||
| 44410-10072 |
EP82..CBR,EFI ｱﾘ(ABS) |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
EP8#,NP80 |
1 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
EP8#,NP80 |
2 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
EP8#,NP80 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-10030 |
EP8# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-10040 |
EP8#..CBR,EFI |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-10040 |
EP8#..CBR,EFI |
1 | ||
| Common parts | ||||
| 90101-08114 | ||||
| 90101-08144 | ||||
| 90105-10113 | ||||
| 90119-06394 | ||||
| 90119-10399 | ||||
| 90170-08006 | ||||
| 90179-08176 | ||||
| 90179-08177 | ||||
| 90467-16008 | ||||
| 90467-21009 | ||||
| 91511-60812 | ||||
| 91511-61030 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
