EP82-AHMSK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )MTM

Click highlighted areas on diagram

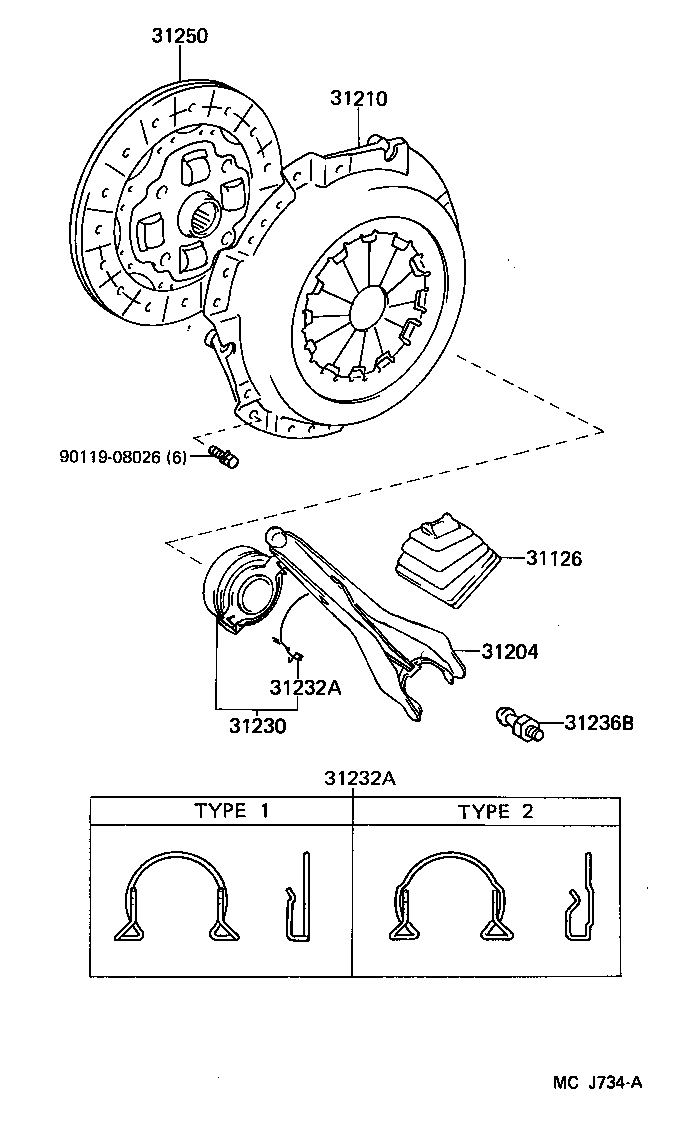

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

EP8#,NP80..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-12050

EP8#,NP80..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-16071

EP82..MTM..(CBR,EFI)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12140

EP8#,NP80..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12040

EP8#,NP80..MTM

TYPE 1

 1
31232-16031

EP8#,NP80..MTM

TYPE 2

 1
31232A - CLIP, RELEASE BEARING HUB
31232-16031

EP8#,NP80..MTM

TYPE 2

 1
31232-12040

EP8#,NP80..MTM

TYPE 1

 1
31236B - SUPPORT, RELEASE FORK
31236-12011

EP8#,NP80..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-12172

EP82..MTM..(CBR,EFI)

 1
31250-12170

EP82..MTM..(CBR,EFI)

 1
31250-12171

EP82..MTM..(CBR,EFI)

 1
Common parts
90119-08026
