EP82-AHKNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)CBR

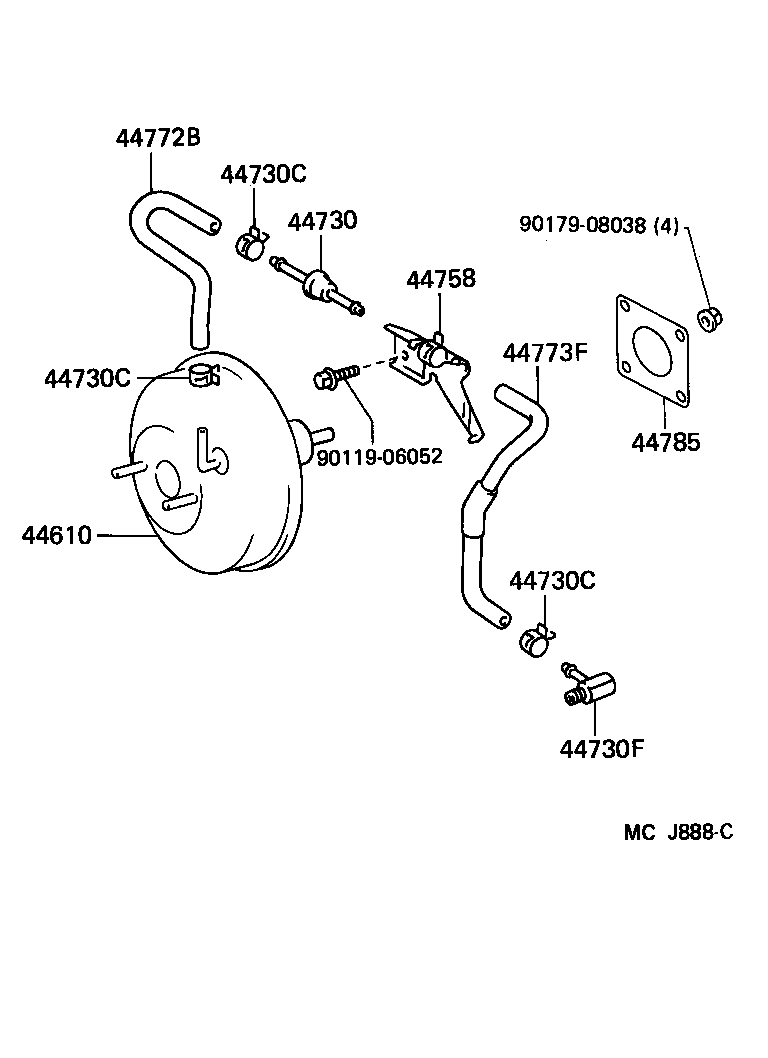

Click highlighted areas on diagram

diagram 44610 44730 44730C 44730C 44730C 44730F 44758 44772B 44773F 44785 9011906052 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-10190

EP82..CANSI,GI,GT,S,SI,X

ｱﾘ(ABS)

 1
44610-10150

EP82..MTM..CBR

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

EP8#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP8#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP8#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP8#

 3
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90407-51005

EP8#..CBR

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-10080

EP8#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-10130

EP8#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-10190

EP8#..CBR

 1
44785 - GASKET, BRAKE BOOSTER
44785-10020

EP8#,NP80

 1
Common parts
90119-06052
90179-08038
