EP82-AHKNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)4EF# ; (9201- )4EF#

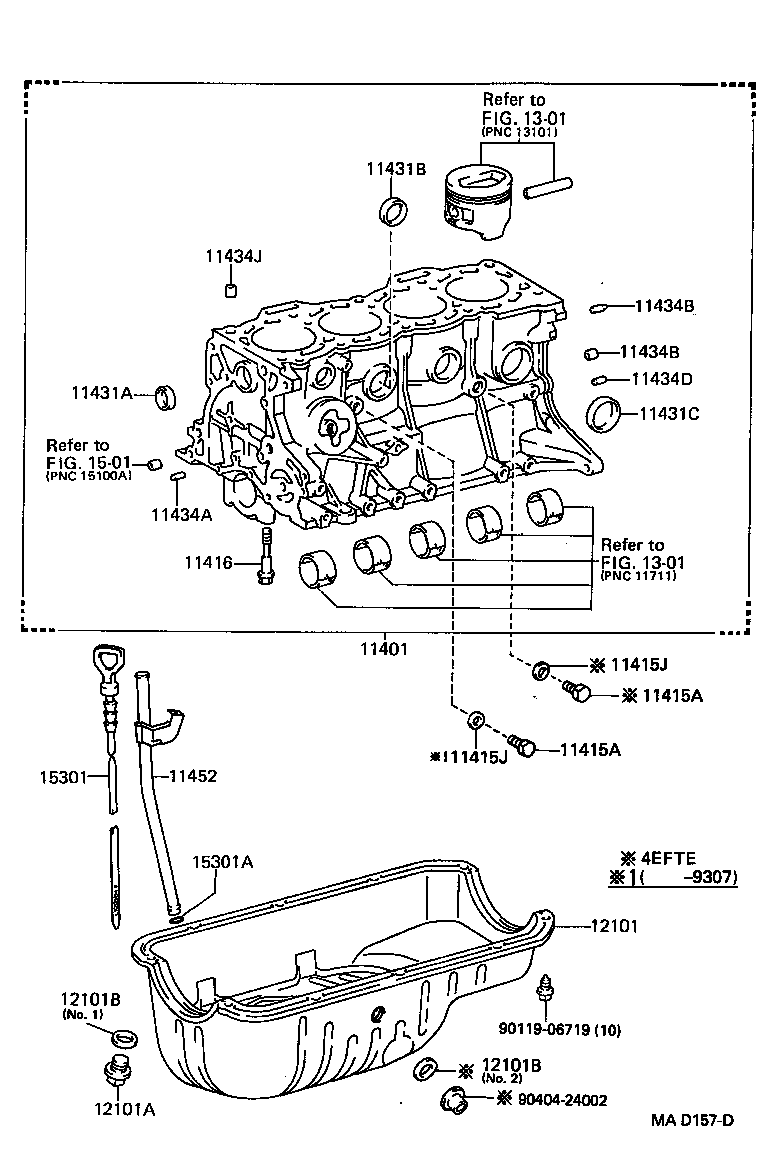

Click highlighted areas on diagram

diagram 11401 11415A 11415A 11415J 11415J 11416 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 12101B 1301 1301 1501 15301 15301A 9011906719 9040424002
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19565

4EF,4EFE..EP8#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90341-12012

4EF,4EFE..EP8#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90341-12012

4EF,4EFE..EP8#

 1
11415J - GASKET(FOR DRAIN COCK)
90430-13002

4EF,4EFE..EP8#

 1
11415J - GASKET(FOR DRAIN COCK)
90430-13002

4EF,4EFE..EP8#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

4EF#..EP8#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

4EF#..EP8#

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

4EF#..EP8#

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

4EF#..EP8#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

4EF#..EP8#

長さ=11,外径=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

4EF#..EP8#

長さ=20,外径=10

 1
90253-15003

4EF#..EP8#

長さ=17,外径=15

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

4EF#..EP8#

長さ=20,外径=10

 1
90253-15003

4EF#..EP8#

長さ=17,外径=15

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

4EF#..EP8#

長さ=11,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

4EF#..EP8#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-11040

4EF#..EP8#

 1
12101 - PAN SUB-ASSY, OIL
12101-10010

4EF,4EFE..EP82

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

4EF#..EP8#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

4EF,4EFE..EP82

 1
90430-12027

4EF#..EP82

NO.1

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

4EF,4EFE..EP82

 1
90430-12027

4EF#..EP82

NO.1

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11030

4EF,4EFE..EP82

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96711-19010

4EF#..EP8#

 1
Common parts
90119-06719
90404-24002
Linked diagrams
1301
1501
