EP82-AHKDU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

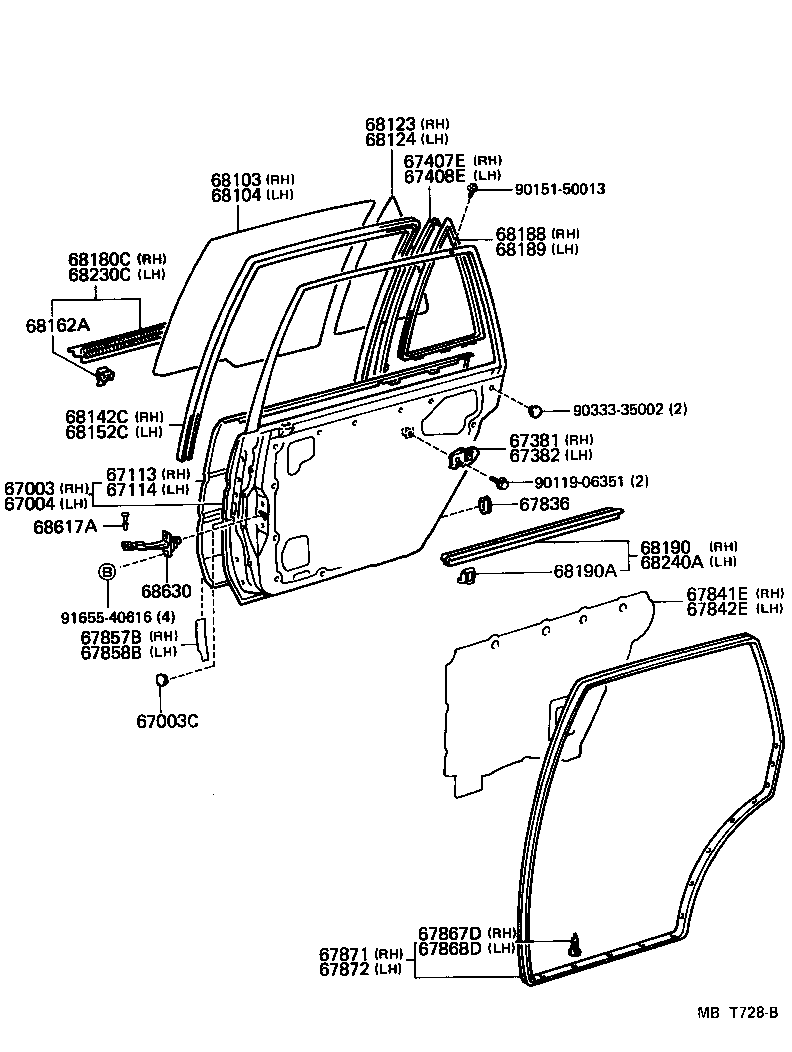

ILLUST NO. 1 OF 2(8912- )5D

Click highlighted areas on diagram

diagram 67003 67003C 67004 67113 67114 67381 67382 67407E 67408E 67836 67841E 67842E 67857B 67858B 67867D 67868D 67871 67872 68103 68104 68123 68124 68142C 68152C 68162A 68180C 68188 68189 68190 68190A 68230C 68240A 68617A 68630 9011906351 9015150013 9033335002 9165540616
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-10101

EP8#,NP80..5D..(SI,SOL,SOLL,X)

 1
67003-10100

EP82,NP80..5D

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09064

EP8#,NP80..5D

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-10110

EP82,NP80..5D..(SOL,SOLL)

 1
67004-10111

EP8#,NP80..5D..(SI,SOL,SOLL,X)

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-10090

EP8#,NP80..5D

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-10080

EP8#,NP80..5D

 1
67381 - BRACKET, REAR DOOR INSIDE PANEL, NO.1 RH
67381-10010

EP8#,NP80..5D

 1
67382 - BRACKET, REAR DOOR INSIDE PANEL, NO.1 LH
67382-10010

EP8#,NP80..5D

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-10050

EP8#,NP80..5D

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-10050

EP8#,NP80..5D

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12030

EP8#,NP80..5D

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-10040

EP8#,NP80..5D

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-10040

EP8#,NP80..5D

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-10010

EP8#,NP80..5D

 17
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67868-10010

EP8#,NP80..5D

 17
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-10070

EP82,NP80..5D

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-10070

EP82,NP80..5D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-10110

EP8#,NP80..5D..(SOL,SOLL,X)

*TEM,厚さ=3.1,ｸﾘｱ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-10110

EP8#,NP80..5D..(SOL,SOLL,X)

*TEM,厚さ=3.1,ｸﾘｱ

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-10130

EP8#,NP80..5D..(SOL,SOLL,X)

*TEM,厚さ=3.1,ｸﾘｱ

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-10130

EP8#,NP80..5D..(SOL,SOLL,X)

*TEM,厚さ=3.1,ｸﾘｱ

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-10050

EP8#,NP80..5D

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-10010

EP8#,NP80..5D

 1
68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68212-10010

EP8#,NP80..5D

左側

 6
68211-10090

EP8#,NP80..5D

右側

 6
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68180-10080

EP8#,NP80..5D

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-10040

EP8#,NP80..5D

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-10040

EP8#,NP80..5D

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-10060

EP82,NP80..5D..SOL

 1
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68211-10100

EP82,NP80..5D..SOL

右側

 4
68212-10020

EP82,NP80..5D..SOL

左側

 4
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68230-10040

EP8#,NP80..5D

 1
68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68240-10040

EP82,NP80..5D..SOL

 1
68617A - PIN, REAR DOOR CHECK
68617-12030

EP8#,NP80..5D

 2
68630 - CHECK ASSY, REAR DOOR
68630-10030

EP8#,NP80..5D

 2
Common parts
90119-06351
90151-50013
90333-35002
91655-40616

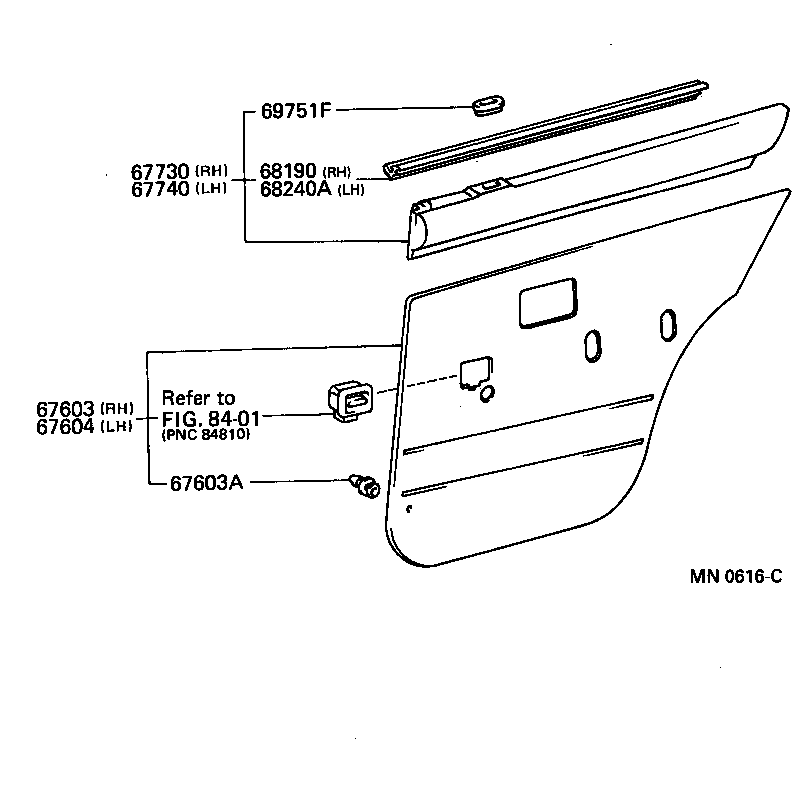

ILLUST NO. 2 OF 2(8912- )5D

Click highlighted areas on diagram

diagram 67603 67603A 67604 67730 67740 68190 68240A 69751F 8401
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1062003

EP82,NP80..5D..SOL

GRAY,TRIM1#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-89111

EP8#,NP80..5D

 18
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1062003

EP82,NP80..5D..SOL

GRAY,TRIM1#

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-10060

EP82,NP80..5D..SOL

 1
68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68240-10040

EP82,NP80..5D..SOL

 1
Linked diagrams
8401
