EP82-AHKDU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )EP82..MTM..CBR,EFI

Click highlighted areas on diagram

C140,C141,C150

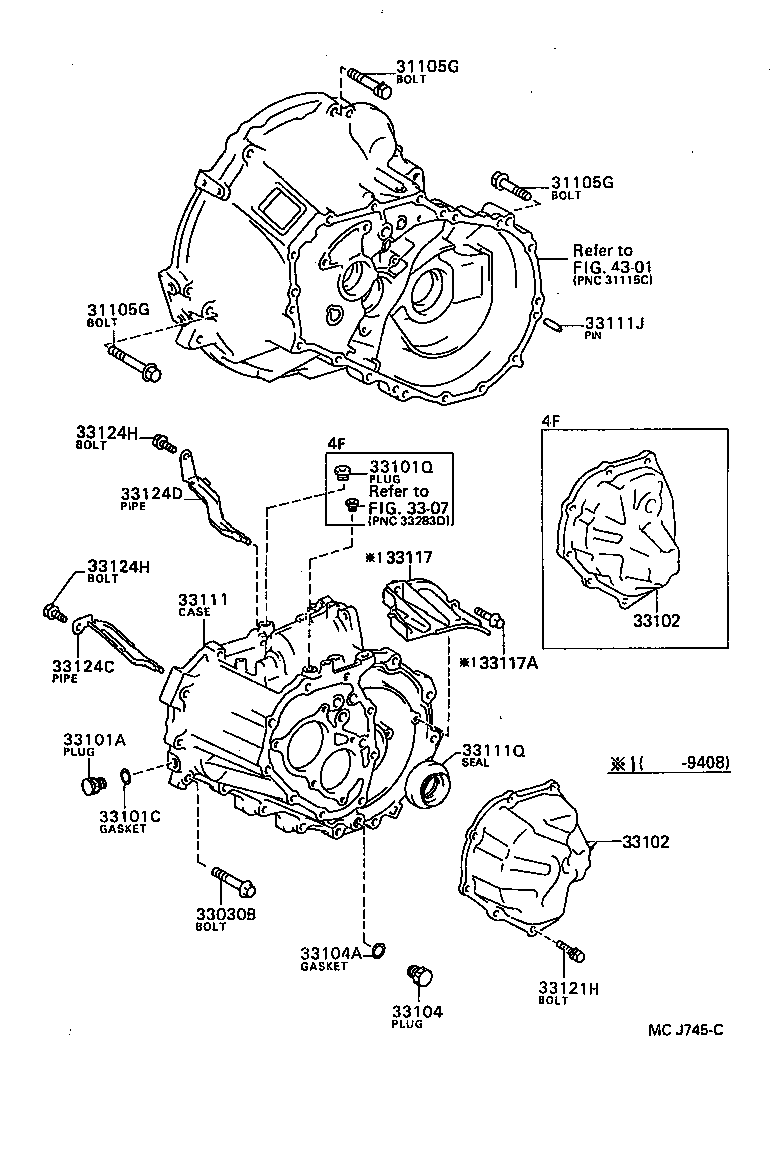

diagram 31105G 31105G 31105G 33030B 3307 33101A 33101C 33101Q 33102 33102 33104 33104A 33111 33111J 33111Q 33117 33117A 33121H 33124C 33124D 33124H 33124H 4301
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61260

EP8#..MTM

*12−1.25PX60−30

 3
91611-61025

EP82..MTM

*10−1.25PX25−25

 1
91621-60614

EP82..MTM

*6−1.00PX14−14

 2
90105-10097

EP8#..MTM

*10−1.25PX60−22

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61260

EP8#..MTM

*12−1.25PX60−30

 3
91611-61025

EP82..MTM

*10−1.25PX25−25

 1
91621-60614

EP82..MTM

*6−1.00PX14−14

 2
90105-10097

EP8#..MTM

*10−1.25PX60−22

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61260

EP8#..MTM

*12−1.25PX60−30

 3
91611-61025

EP82..MTM

*10−1.25PX25−25

 1
91621-60614

EP82..MTM

*6−1.00PX14−14

 2
90105-10097

EP8#..MTM

*10−1.25PX60−22

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

EP82,NP80..MTM..(CBR,DSL,EFI)

*8−1.25PX45−27.5

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

EP82,NP80..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

EP8#,NP80..MTM

 1
33101Q - PLUG, NO.1(FOR TRANSMISSION CASE)
90341-14008

EP82..4F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-10010

EP82..4F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-10010

EP82..4F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

EP8#,NP80..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

EP8#,NP80..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-10071

EP82,NP80..MTM..(CBR,DSL,EFI)

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

EP8#,NP80..MTM

長さ=23,外径=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34017

EP8#,NP80..MTM

 1
90311-34008

EP8#,NP80..MTM

 1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-17010

EP8#,NP80..MTM

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

EP8#,NP80..MTM

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08494

EP82,NP80..MTM..(CBR,DSL,EFI)

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-10010

EP82,NP80..MTM..(CBR,DSL,EFI)

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

EP82,NP80..MTM..(CBR,DSL,EFI)

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

EP82,NP80..MTM..(CBR,DSL,EFI)

 1
Linked diagrams
3307
4301
