EP82-AHKDK (1992)
Toyota Starlet
Production
Jan 1992
-
Jan 1996
Engine
4EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )

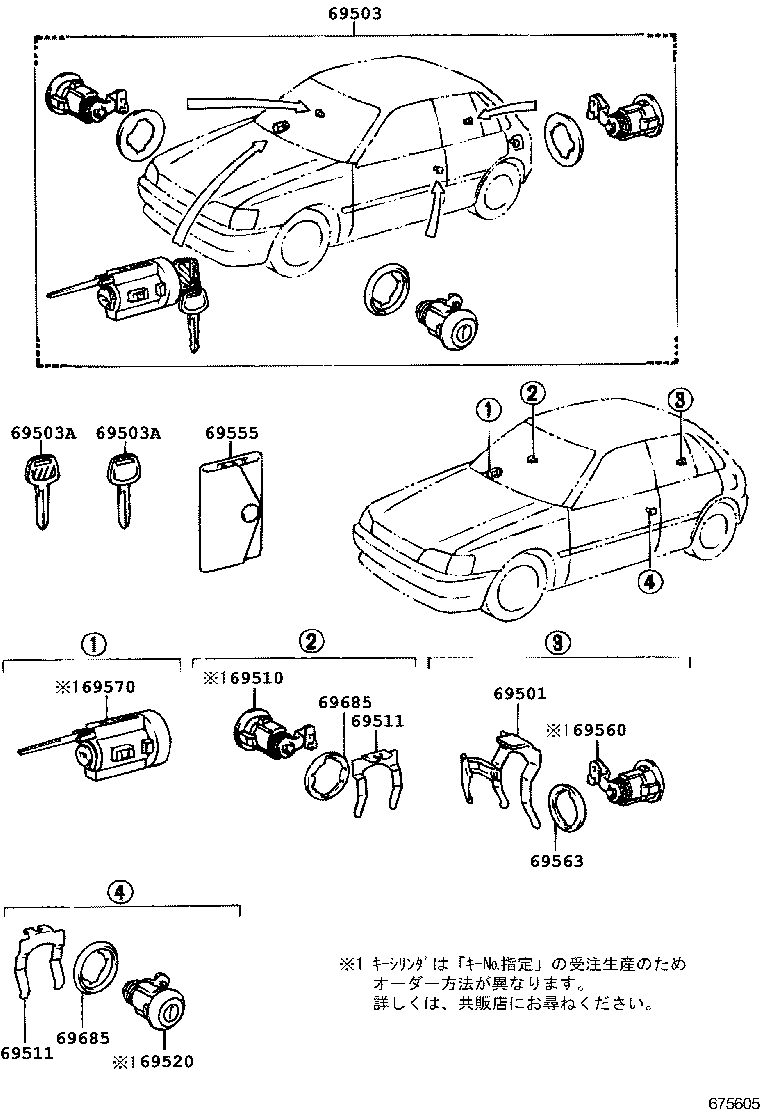

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69501 - RETAINER SUB-ASSY, BACK DOOR CYLINDER | ||||
| 69501-10040 |
EP8#,NP80 |
1 | ||
| 69501-10030 |
EP8#,NP80 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-10230 |
EP82,NP80..SOL |
1 | ||
| 69005-10291 |
EP8#,NP80 |
1 | ||
| 69005-10240 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 69005-10290 |
EP8#,NP80 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
EP8#,NP80 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
EP8#,NP80 ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00163 |
EP8#,NP80 ﾏｽﾀｰｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
EP8#,NP80 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
EP8#,NP80 ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00163 |
EP8#,NP80 ﾏｽﾀｰｷｰ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-10060 |
EP8#,NP80 |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
EP8#,NP80 |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
EP8#,NP80 |
2 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-10060 |
EP8#,NP80 |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
EP8#,NP80 |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-10150 |
EP8#,NP80 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-18011 |
EP8#,NP80 |
1 | ||
| 69570-18011 |
EP8#,NP80 |
1 | ||
