EP82-AHKDK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

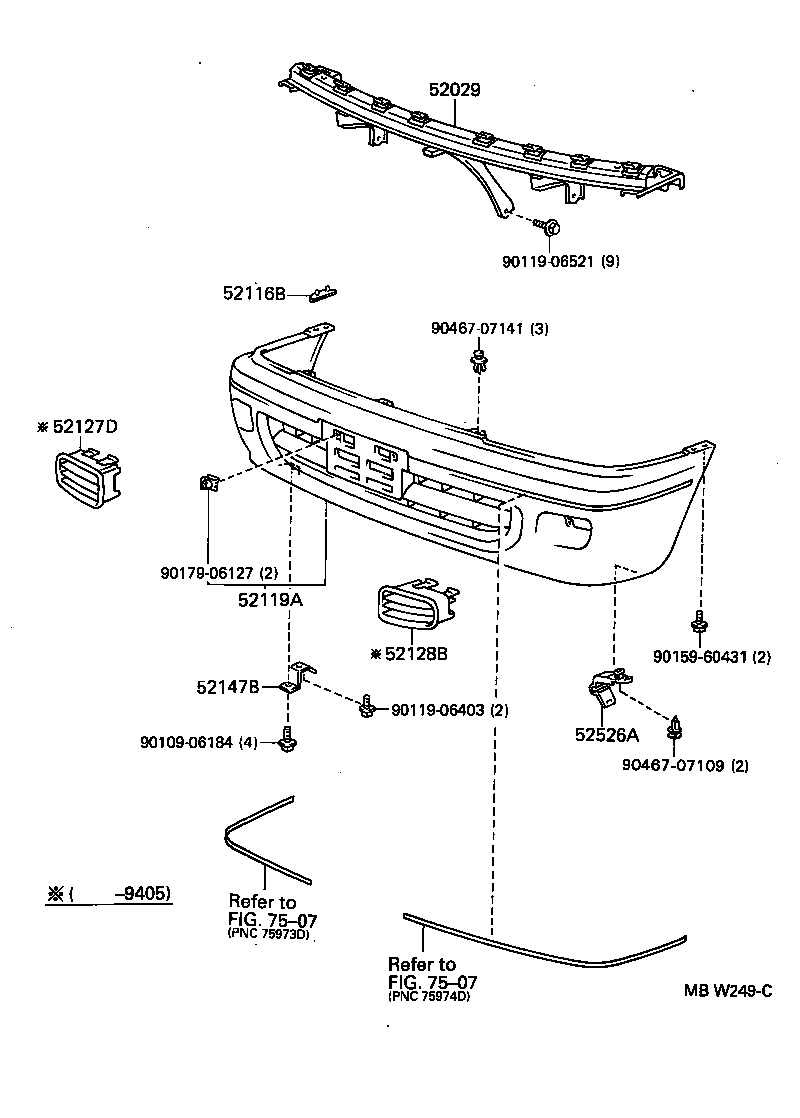

Click highlighted areas on diagram

diagram 52029 52116B 52119A 52127D 52128B 52147B 52526A 7507 7507 9010906184 9011906403 9011906521 9015960431 9017906127 9046707109 9046707141
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-10031

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

 1
52029-10030

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

 1
52029-10010

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

 1
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#,NP80

 2
52119A - COVER, FRONT BUMPER
52119-1018002

EP8#,NP80..S,SI,SOLL,X,XLTD

ｱﾘ(ﾄｿ-),SUPER RED 2,3E5

 1
52119-1018004

EP8#,NP80..S,SI,SOLL,X,XLTD

ｱﾘ(ﾄｿ-),GRAYSH BLUE,8H1

 1
52119-10130

EP8#,NP80..S,SI,SOL,SOLL,X,XLTD

 1
52119-1018012

EP8#,NP80..S,SI,SOLL,X,XLTD

ｱﾘ(ﾄｿ-),RED MICA,3H4

 1
52119-1018008

EP8#,NP80..S,SI,SOLL,X,XLTD

ｱﾘ(ﾄｿ-),SUPER WHITE 2,040

 1
52119-1018013

EP8#..S,SI,SOLL

ｱﾘ(ﾄｿ-),BLUISH GRAY.M,185 ,186 ,541

 1
52119-10240C0

EP8#..S,SOLL

BLACK M,205

 1
52119-10240C0

EP8#..S

BLACK M,205

 1
52119-10240D0

EP8#..CAN,S,SOLL

SUPER RED 2,3E5

 1
52119-10240B0

EP8#,NP80..CAN,S,SOLL,XLTD

BLUISH GRAY M,182

 1
52119-10240C0

EP8#..S

BLACK M,205

 1
52119-10230

EP82,NP80..SOL

 1
52119-10240A0

EP8#,NP80..CAN,S,SOLL,XLTD

SUPER WHITE 2,040

 1
52119-10280B0

EP8#,NP80..S,SOLL,XLTD

SILVER M,199

 1
52119-10270

EP8#,NP80..S,SOL,SOLL,XLTD

 1
52119-10280C0

EP8#..S,SOLL

BLACK M,205

 1
52119-10280H0

EP8#,NP80..S,SOLL,XLTD

TURQUOISE M.M,746

 1
52119-10280J0

EP8#,NP80..S,SOLL,XLTD

DARK BLUE M.M,8K0

 1
52119-10240J0

EP8#,NP80..S,SOLL,XLTD

DARK BLUE M M,8G5

 1
52119-10240G0

EP8#,NP80..S,SOLL,XLTD

GREEN M,6M6

 1
52119-10280A0

EP8#,NP80..S,SOLL,XLTD

SUPER WHITE 2,040

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-10010

EP8#,NP80..SOL,SOLL

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-10010

EP8#,NP80..SOL,SOLL

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16060

EP8#,NP80

 2
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-10030

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

 2
Common parts
90109-06184
90119-06403
90119-06521
90159-60431
90179-06127
90467-07109
90467-07141
Linked diagrams
7507
