Toyota Starlet EP82 WINDSHIELD WASHER

Manufacturers Home
Toyota
JP
STARLET
EP82-AHHNU (1989)
8503 - WINDSHIELD WASHER

EP82-AHHNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992

Engine 4EF

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8912-9601)

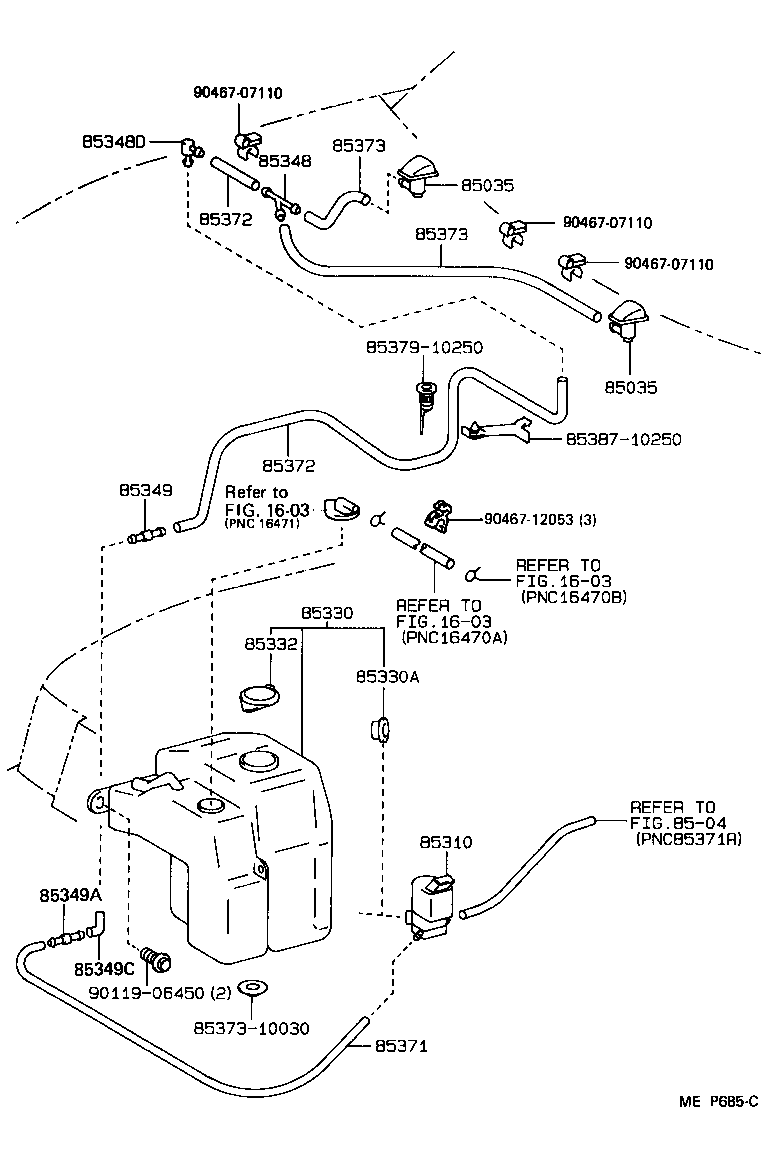

Click highlighted areas on diagram

ﾅｼ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-10010	EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD	12/1989 - 01/1992	2
85381-10040	EP85;EP82..CANSI,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	2
85381-10040	EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-10010	EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD	12/1989 - 01/1992	2
85381-10040	EP85;EP82..CANSI,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	2
85381-10040	EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10220	EP85;EP82,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD	12/1989 - 09/1992	1
85310-20170	EP82..SOL,SOLL ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85310-20170	EP82..(CAN,SOL)..EFI;EP85,NP80..S,SOLL,XLTD;EP82..CANSI,GI,GT,S,SI,X,XLTD ｱﾘ(*66)	12/1989 - 09/1992	1
85330-10220	EP82,NP80..SOL,SOLL ｱﾘ(ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	12/1989 - 09/1992	1
85310-20200	EP82,NP80..SOL,SOLL	12/1989 - 05/1994	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-10170	EP8#,NP80	12/1989 - 05/1994	1
85315-10190	EP82..SOL,SOLL ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85315-10190	EP85;EP82..(CAN,SOL,SOLL)..EFI;EP82..CANSI,GI,GT,S,SI,X,XLTD ｱﾘ(*66)	12/1989 - 01/1996	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	EP8#,NP80	12/1989 - 01/1996	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-10190	EP85;EP82..(CAN,SOL,SOLL)..EFI;EP82..CANSI,GI,GT,S,SI,X,XLTD ｱﾘ(*66)	12/1989 - 10/1993	1
85316-10160	EP82,NP80	12/1989 - 07/1990	1
85316-10190	EP82..SOL,SOLL ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	EP82	01/1990 - 04/1990	1
85348-14390	EP8#	04/1990 - 01/1992	1
85348-12250	EP82,NP80	12/1989 - 01/1990	1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85376-10250	EP8#	01/1990 - 01/1992	1
85376-10250	EP82,NP80	12/1989 - 01/1990	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	1
85375-10260	EP8# ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	1
85349-89122	EP82,NP80	12/1989 - 01/1990	1
85349-89122	EP8#	01/1990 - 01/1992	1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122	EP8#,NP80	12/1989 - 05/1994	1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20070	EP8#,NP80	12/1989 - 01/1992	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001	EP8#,NP80	12/1989 - 01/1992	1
90446-06013	EP85,NP80..S,SOLL,XLTD;EP82..(CAN,SOL,SOLL)..EFI;EP82..CANSI,GI,GT,S,SI,X,XLTD 長さ=450,ｱﾘ(*66)	12/1989 - 05/1994	1
90446-06013	EP82..SOL,SOLL 長さ=450,ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-07001	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	1
90446-07001	EP82,NP80	12/1989 - 01/1990	1
90446-07001	EP82	01/1990 - 04/1990	1
90446-07001	EP8# ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-07001	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	1
90446-07001	EP82,NP80	12/1989 - 01/1990	1
90446-07001	EP82	01/1990 - 04/1990	1
90446-07001	EP8# ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EP82..CANSI,S,SI,X L=1450,ｱﾘ(*66)	12/1989 - 01/1990	1
90099-33080	EP8# L=1450	01/1990 - 01/1992	1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EP82..CANSI,S,SI,X L=1450,ｱﾘ(*66)	12/1989 - 01/1990	1
90099-33080	EP8# L=1450	01/1990 - 01/1992	1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
Common parts
85373-10030
85379-10250
85387-10250
90119-06450
90467-07110
90467-12053
Linked diagrams
1603
8504

(8912-9601)EP8#

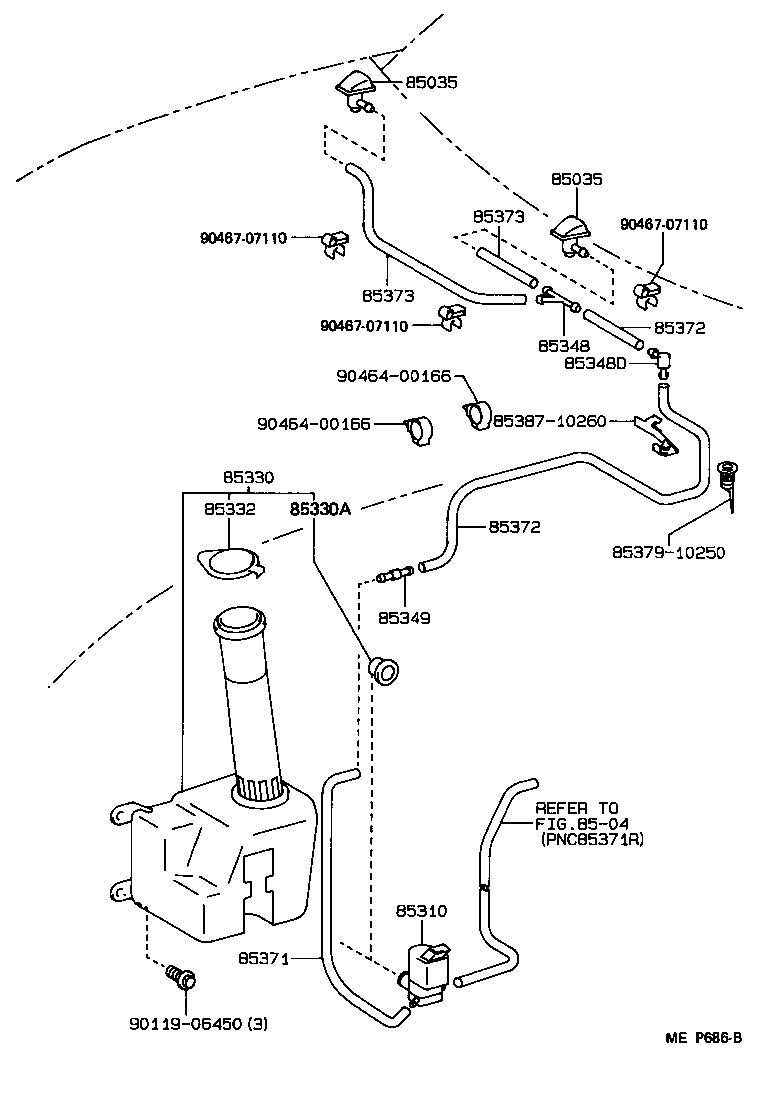

Click highlighted areas on diagram

ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-10010	EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD	12/1989 - 01/1992	2
85381-10040	EP85;EP82..CANSI,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	2
85381-10040	EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-10010	EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD	12/1989 - 01/1992	2
85381-10040	EP85;EP82..CANSI,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	2
85381-10040	EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10220	EP85;EP82,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD	12/1989 - 09/1992	1
85310-20170	EP82..SOL,SOLL ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85310-20170	EP82..(CAN,SOL)..EFI;EP85,NP80..S,SOLL,XLTD;EP82..CANSI,GI,GT,S,SI,X,XLTD ｱﾘ(*66)	12/1989 - 09/1992	1
85330-10220	EP82,NP80..SOL,SOLL ｱﾘ(ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	12/1989 - 09/1992	1
85310-20200	EP82,NP80..SOL,SOLL	12/1989 - 05/1994	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-10170	EP8#,NP80	12/1989 - 05/1994	1
85315-10190	EP82..SOL,SOLL ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85315-10190	EP85;EP82..(CAN,SOL,SOLL)..EFI;EP82..CANSI,GI,GT,S,SI,X,XLTD ｱﾘ(*66)	12/1989 - 01/1996	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	EP8#,NP80	12/1989 - 01/1996	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-10190	EP85;EP82..(CAN,SOL,SOLL)..EFI;EP82..CANSI,GI,GT,S,SI,X,XLTD ｱﾘ(*66)	12/1989 - 10/1993	1
85316-10160	EP82,NP80	12/1989 - 07/1990	1
85316-10190	EP82..SOL,SOLL ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	EP82	01/1990 - 04/1990	1
85348-14390	EP8#	04/1990 - 01/1992	1
85348-12250	EP82,NP80	12/1989 - 01/1990	1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85376-10250	EP8#	01/1990 - 01/1992	1
85376-10250	EP82,NP80	12/1989 - 01/1990	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	1
85375-10260	EP8# ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	1
85349-89122	EP82,NP80	12/1989 - 01/1990	1
85349-89122	EP8#	01/1990 - 01/1992	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001	EP8#,NP80	12/1989 - 01/1992	1
90446-06013	EP85,NP80..S,SOLL,XLTD;EP82..(CAN,SOL,SOLL)..EFI;EP82..CANSI,GI,GT,S,SI,X,XLTD 長さ=450,ｱﾘ(*66)	12/1989 - 05/1994	1
90446-06013	EP82..SOL,SOLL 長さ=450,ｱﾘ(*66 & ﾘﾔｳｲﾝﾄﾞﾜｲﾊﾟ)	09/1990 - 01/1992	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-07001	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	1
90446-07001	EP82,NP80	12/1989 - 01/1990	1
90446-07001	EP82	01/1990 - 04/1990	1
90446-07001	EP8# ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-07001	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	12/1989 - 09/1990	1
90446-07001	EP82,NP80	12/1989 - 01/1990	1
90446-07001	EP82	01/1990 - 04/1990	1
90446-07001	EP8# ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)	09/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EP82..CANSI,S,SI,X L=1450,ｱﾘ(*66)	12/1989 - 01/1990	1
90099-33080	EP8# L=1450	01/1990 - 01/1992	1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	EP82..CANSI,S,SI,X L=1450,ｱﾘ(*66)	12/1989 - 01/1990	1
90099-33080	EP8# L=1450	01/1990 - 01/1992	1
90446-06013	EP8# 長さ=450	01/1990 - 01/1992	1
90446-06013	EP82,NP80 長さ=450	12/1989 - 01/1990	1
Common parts
85379-10250
85387-10260
90119-06450
90464-00166
90467-07110
Linked diagrams
8504

EP82-AHHNU (1989)

(8912-9601)

(8912-9601)EP8#
