EP82-AHHNU (1989)
Toyota Starlet

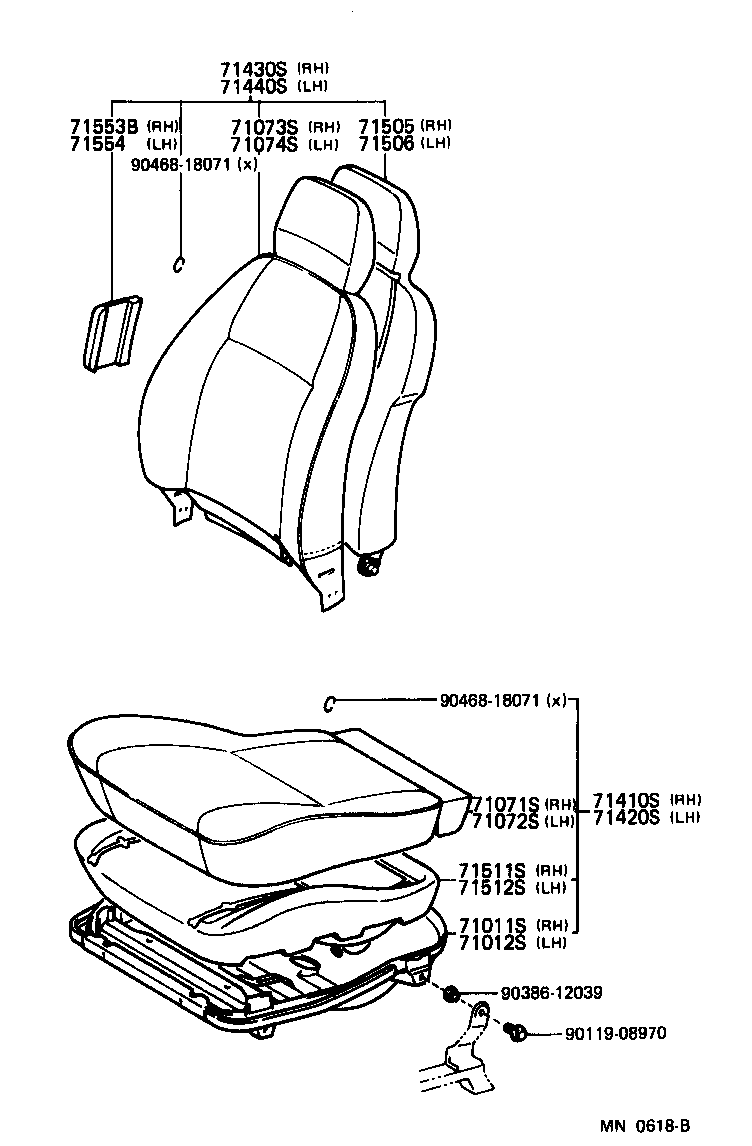

ILLUST NO. 1 OF 2(8912- )SOL,SOLL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10100 |
EP82,NP80 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-10060 |
EP82,NP80 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1C16003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71071-1C17003 |
EP82..CAN,CANSI,S,SI GRAY,TRIM1# |
1 | ||
| 71071-1C17004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71071-1C340J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71071-1C15003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71071-1C16006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1051003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71072-1053003 |
EP82..CAN,CANSI,S,SI GRAY,TRIM1# |
1 | ||
| 71072-1052006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71072-10690J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71072-1053004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71072-1052003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1C11003 |
EP82..S,SI GRAY,TRIM1# |
1 | ||
| 71073-1C320J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71073-1C09003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71073-1C11004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71073-1C10003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71073-1C10006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-10710J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71074-1048003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71074-1049006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71074-1049003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71074-1050004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71074-1050003 |
EP82..S,SI GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1C26003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71410-1C28004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71410-1C27003 |
EP82..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71410-1C27006 |
EP82..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71410-1C28003 |
EP82..CAN,CANSI,S,SI ***,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1C05003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71420-1C06006 |
EP82..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71420-1C07004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71420-1C06003 |
EP82..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71420-1C07003 |
EP82..CAN,CANSI,S,SI ***,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1C21004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71430-1C20006 |
EP8#..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71430-1C20003 |
EP8#..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71430-1C21003 |
EP82..S,SI ***,GRAY,TRIM1# |
1 | ||
| 71430-1C19003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1C17006 |
EP8#..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71440-1C17003 |
EP8#..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71440-1C16003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71440-1C18004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71440-1C18003 |
EP82..S,SI ***,GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-10060 |
EP82..CAN,CANSI,GI,S,SI |
1 | ||
| 71505-10050 |
EP8#,NP80..SOL,SOLL |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-10050 |
EP8#,NP80..SOL,SOLL |
1 | ||
| 71506-10060 |
EP82..CAN,CANSI,GI,S,SI |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-10160 |
EP8#,NP80..SOL,SOLL,X,XLTD |
1 | ||
| 71511-10230 |
EP8#..CAN,CANSI,GI,GT,S,SI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-10160 |
EP8#,NP80..SOL,SOLL,X,XLTD |
1 | ||
| 71511-10230 |
EP8#..CAN,CANSI,GI,GT,S,SI |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-10030 |
EP8#,NP80 |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71553-10030 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||

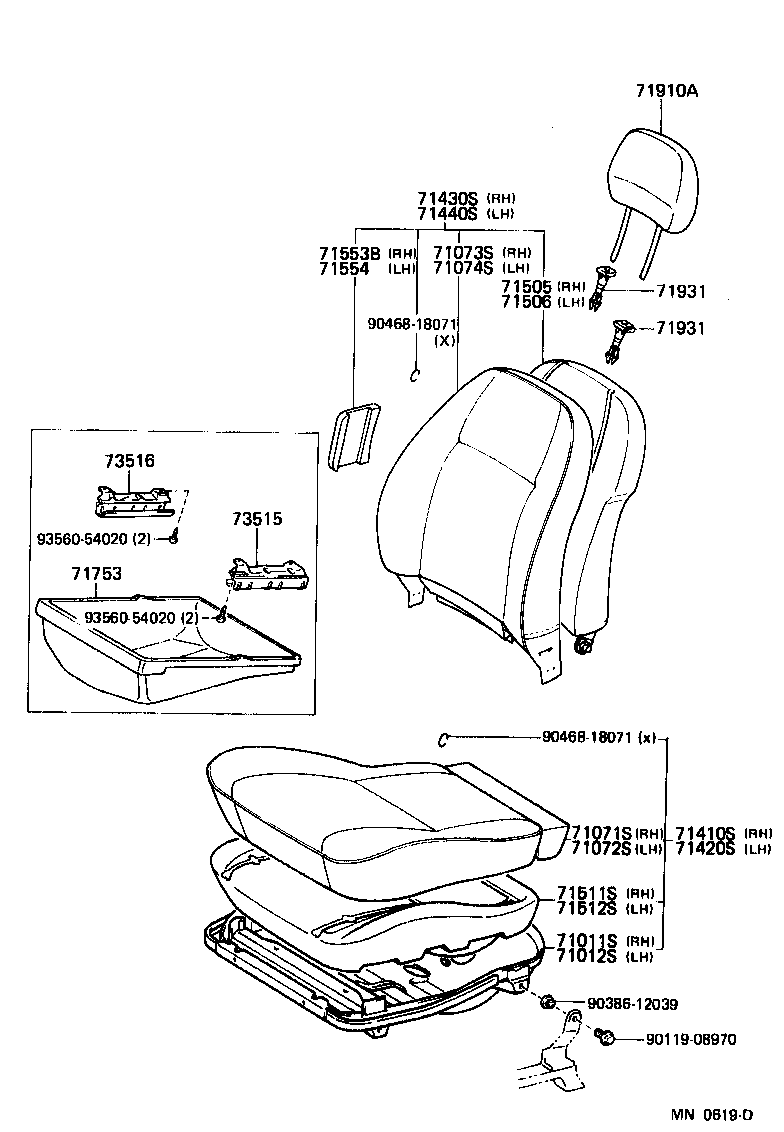

ILLUST NO. 1 OF 2(8912- )CAN,CANSI,GI,S,SI,X,XLTD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10100 |
EP82,NP80 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-10060 |
EP82,NP80 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1C16003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71071-1C17003 |
EP82..CAN,CANSI,S,SI GRAY,TRIM1# |
1 | ||
| 71071-1C17004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71071-1C340J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71071-1C15003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71071-1C16006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1051003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71072-1053003 |
EP82..CAN,CANSI,S,SI GRAY,TRIM1# |
1 | ||
| 71072-1052006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71072-10690J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71072-1053004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71072-1052003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1C11003 |
EP82..S,SI GRAY,TRIM1# |
1 | ||
| 71073-1C320J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71073-1C09003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71073-1C11004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71073-1C10003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71073-1C10006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-10710J0 |
EP82..SOLL ｿﾚｲﾕ L,BLUE,TRIM8# |
1 | ||
| 71074-1048003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 71074-1049006 |
EP8#..SOLL SABLE,TRIM4# |
1 | ||
| 71074-1049003 |
EP8#..SOLL GRAY,TRIM1# |
1 | ||
| 71074-1050004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 71074-1050003 |
EP82..S,SI GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1C26003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71410-1C28004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71410-1C27003 |
EP82..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71410-1C27006 |
EP82..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71410-1C28003 |
EP82..CAN,CANSI,S,SI ***,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1C05003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71420-1C06006 |
EP82..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71420-1C07004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71420-1C06003 |
EP82..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71420-1C07003 |
EP82..CAN,CANSI,S,SI ***,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1C21004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71430-1C20006 |
EP8#..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71430-1C20003 |
EP8#..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71430-1C21003 |
EP82..S,SI ***,GRAY,TRIM1# |
1 | ||
| 71430-1C19003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1C17006 |
EP8#..SOLL ***,SABLE,TRIM4# |
1 | ||
| 71440-1C17003 |
EP8#..SOLL ***,GRAY,TRIM1# |
1 | ||
| 71440-1C16003 |
EP82,NP80..SOL ***,GRAY,TRIM1# |
1 | ||
| 71440-1C18004 |
EP82..S,SI ***,BLUE,TRIM8# |
1 | ||
| 71440-1C18003 |
EP82..S,SI ***,GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-10060 |
EP82..CAN,CANSI,GI,S,SI |
1 | ||
| 71505-10050 |
EP8#,NP80..SOL,SOLL |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-10050 |
EP8#,NP80..SOL,SOLL |
1 | ||
| 71506-10060 |
EP82..CAN,CANSI,GI,S,SI |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-10160 |
EP8#,NP80..SOL,SOLL,X,XLTD |
1 | ||
| 71511-10230 |
EP8#..CAN,CANSI,GI,GT,S,SI |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-10160 |
EP8#,NP80..SOL,SOLL,X,XLTD |
1 | ||
| 71511-10230 |
EP8#..CAN,CANSI,GI,GT,S,SI |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-10030 |
EP8#,NP80 |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71553-10030 |
EP8#,NP80 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-12010 |
EP82..CAN..EFI;EP82,NP80..CANSI,S,SI,XLTD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1015004 |
EP82..GI,S,SI BLUE,TRIM8# |
2 | ||
| 71910-1015003 |
EP82..CAN,CANSI,GI,S,SI GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007003 |
EP8#,NP80..CAN,CANSI,GI,S,SI,X,XLTD ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-1002003 |
EP8#,NP80..CAN,CANSI,GI,S,SI,X,XLTD ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-1007004 |
EP82..GI,S,SI ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931-1002004 |
EP82..GI,S,SI ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007003 |
EP8#,NP80..CAN,CANSI,GI,S,SI,X,XLTD ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-1002003 |
EP8#,NP80..CAN,CANSI,GI,S,SI,X,XLTD ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-1007004 |
EP82..GI,S,SI ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931-1002004 |
EP82..GI,S,SI ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73515-10030 |
EP82..CAN..EFI;EP85..XLTD..CBR;EP82,NP80..CANSI,S,SI,XLTD |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73516-10030 |
EP82..CAN..EFI;EP85..XLTD..CBR;EP82,NP80..CANSI,S,SI,XLTD |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||
| 93560-54020 | ||||

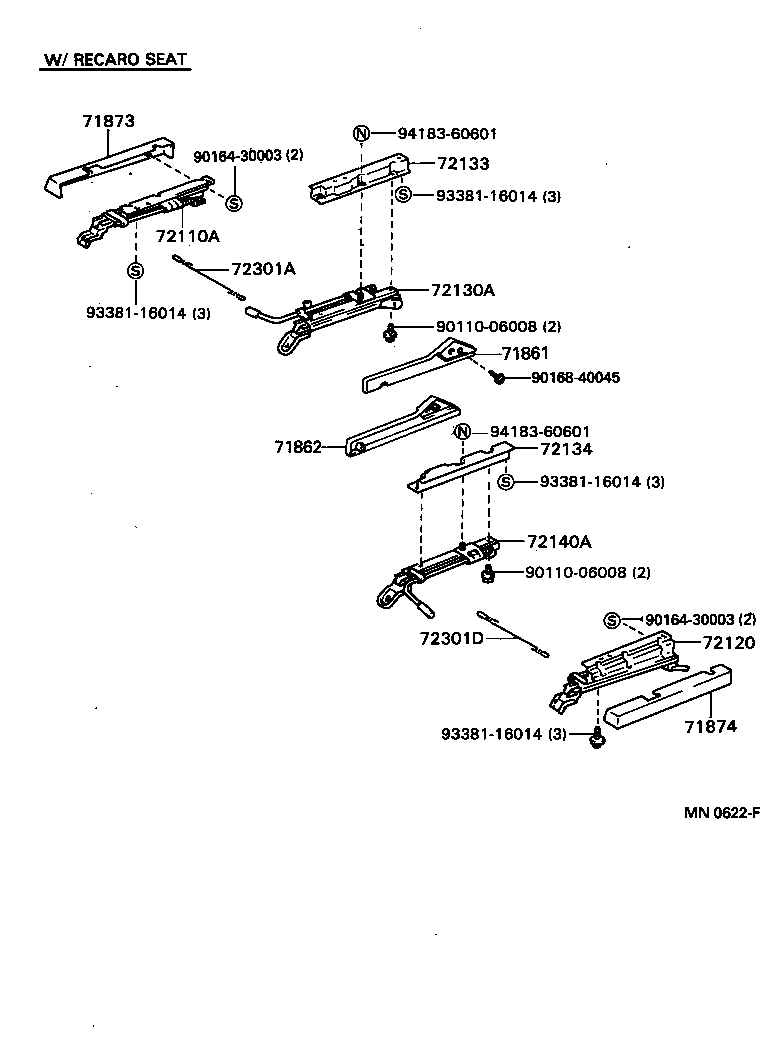

ILLUST NO. 2 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-10410 |
EP82..S |
1 | ||
| 72130-10290 |
EP82,NP80..CAN,CANSI,GI,GT,SI,SOL,SOLL,X |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-10260 |
EP82..5D..SI;EP82..(SOL,SOLL,XLTD)..EFI;EP82,NP80..(CAN,SOL,SOLL,X,XLTD)..(CBR,DSL) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12040 |
EP82,NP80..S,XLTD |
1 | ||
| Common parts | ||||
| 90110-06008 | ||||
| 90164-30003 | ||||
| 90168-40045 | ||||
| 93381-16014 | ||||
| 94183-60601 | ||||

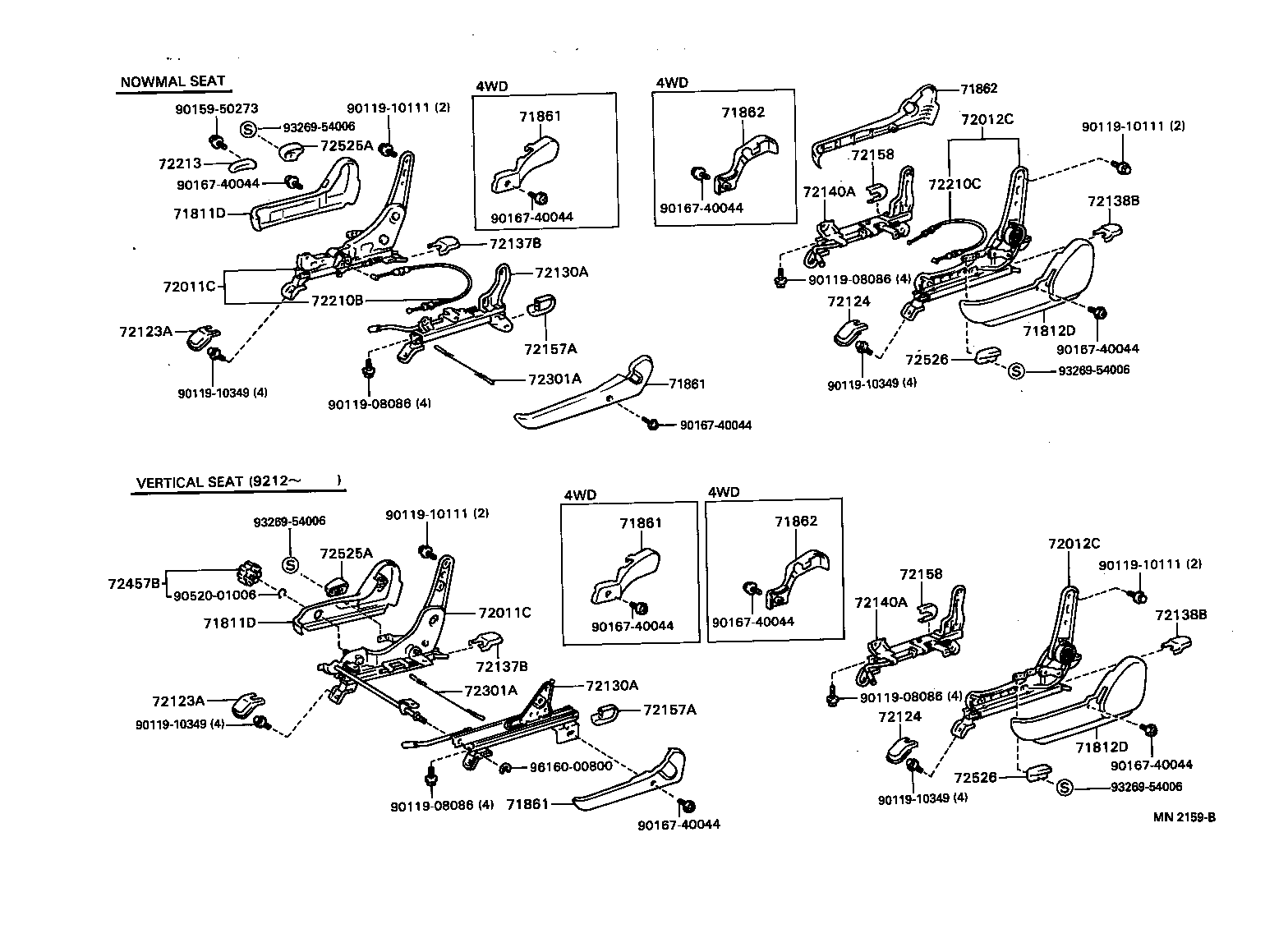

ILLUST NO. 2 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1012004 |
EP82..GI,GT,SI,SOLL BLUE,TRIM8# |
1 | ||
| 71811-1019004 |
EP82..S BLUE,TRIM8# |
1 | ||
| 71811-1012006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 71811-1012003 |
EP85;EP82,NP80..CAN,CANSI,GI,GT,SI,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 71811-1019003 |
EP82..S GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1012004 |
EP82..GI,GT,SI,SOLL BLUE,TRIM8# |
1 | ||
| 71811-1019004 |
EP82..S BLUE,TRIM8# |
1 | ||
| 71811-1012006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 71811-1012003 |
EP85;EP82,NP80..CAN,CANSI,GI,GT,SI,SOL,SOLL,X GRAY,TRIM1# |
1 | ||
| 71811-1019003 |
EP82..S GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1013006 |
EP85..5D..XLTD;EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 71812-1013004 |
EP82..SOLL;EP82..5D..EFI BLUE,TRIM8# |
1 | ||
| 71812-1013003 |
EP85..SOLL;EP82..5D..SI;EP85..5D..XLTD;EP82..(SOL,SOLL,XLTD)..EFI;EP82,NP80..(CAN,SOL,SOLL,X,XLTD)..(CBR,DSL) GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1013006 |
EP85..5D..XLTD;EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 71812-1013004 |
EP82..SOLL;EP82..5D..EFI BLUE,TRIM8# |
1 | ||
| 71812-1013003 |
EP85..SOLL;EP82..5D..SI;EP85..5D..XLTD;EP82..(SOL,SOLL,XLTD)..EFI;EP82,NP80..(CAN,SOL,SOLL,X,XLTD)..(CBR,DSL) GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-10200 |
EP85;EP82,NP80..CAN,CANSI,GI,GT,SI,SOL,SOLL,X |
1 | ||
| 72010-10310 |
EP82..S |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-10200 |
EP85;EP82,NP80..CAN,CANSI,GI,GT,SI,SOL,SOLL,X |
1 | ||
| 72010-10310 |
EP82..S |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-10180 |
EP85..SOLL;EP82..5D..SI;EP85..5D..XLTD;EP82..(SOL,SOLL,XLTD)..EFI;EP82,NP80..(CAN,SOL,SOLL,X,XLTD)..(CBR,DSL) |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-10180 |
EP85..SOLL;EP82..5D..SI;EP85..5D..XLTD;EP82..(SOL,SOLL,XLTD)..EFI;EP82,NP80..(CAN,SOL,SOLL,X,XLTD)..(CBR,DSL) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10090 |
EP8#,NP80 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10090 |
EP8#,NP80 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EP8#,NP80 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EP8#,NP80 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-10410 |
EP82..S |
1 | ||
| 72130-10290 |
EP82,NP80..CAN,CANSI,GI,GT,SI,SOL,SOLL,X |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-10410 |
EP82..S |
1 | ||
| 72130-10290 |
EP82,NP80..CAN,CANSI,GI,GT,SI,SOL,SOLL,X |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-10010 |
EP8#,NP80 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-10010 |
EP8#,NP80 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-10010 |
EP8#,NP80 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-10010 |
EP8#,NP80 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-10260 |
EP82..5D..SI;EP82..(SOL,SOLL,XLTD)..EFI;EP82,NP80..(CAN,SOL,SOLL,X,XLTD)..(CBR,DSL) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-10260 |
EP82..5D..SI;EP82..(SOL,SOLL,XLTD)..EFI;EP82,NP80..(CAN,SOL,SOLL,X,XLTD)..(CBR,DSL) |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-10040 |
EP8#,NP80 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-10040 |
EP8#,NP80 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-10010 |
EP8#,NP80 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-10010 |
EP8#,NP80 |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-10090 |
EP82..S |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-10120 |
EP8#..CAN,GI,GT,S |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-1004003 |
EP82..S GRAY,TRIM1# |
1 | ||
| 72213-1004004 |
EP82..S BLUE,TRIM8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12040 |
EP82,NP80..S,XLTD |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12040 |
EP82,NP80..S,XLTD |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72525-1004003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 72525-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 72525-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72525-1004004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72525-1004003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 72525-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 72525-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72525-1004004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 72526-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72526-1004003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 72526-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72526-1004004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 72526-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72526-1004003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 72526-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 72526-1004004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90159-50273 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 93269-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
