EP82-AHHNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

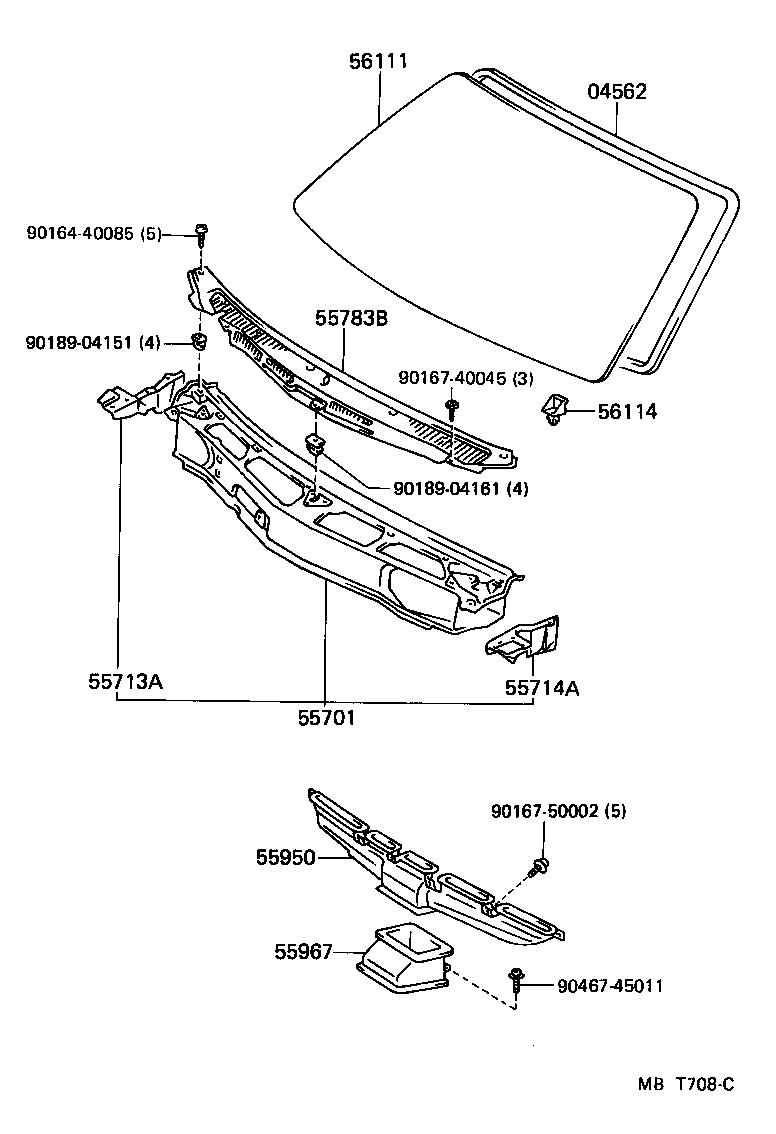

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55783B 55950 55967 56111 56114 9016440085 9016740045 9016750002 9018904151 9018904161 9046745011
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

EP8#,NP80

 1
55701 - PANEL SUB-ASSY, COWL
55700-10260

EP8#..CBR

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-10050

EP8#,NP80

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-10040

EP8#,NP80

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-10020

EP8#,NP80

 1
55708-10030

EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-10050

EP8#,NP80

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-10020

EP8#,NP80

 1
56111 - GLASS, WINDSHIELD
56111-10290

EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

*LAM,T=4.7,ｸﾘｱ,ｱﾘ(ｼｴ-ﾄﾞ)

 1
56111-10330

EP8#,NP80..CAN,GI,GT,S,SI,SOL,SOLL,X

*LAM,T=4.7,ｸﾘｱ

 1
56111-10350

EP8#,NP80..CAN,GI,GT,S,SI,SOLL,X

*LAM,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-10010

EP8#,NP80

 2
Common parts
90164-40085
90167-40045
90167-50002
90189-04151
90189-04161
90467-45011
