EP82-AHHNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)4EF

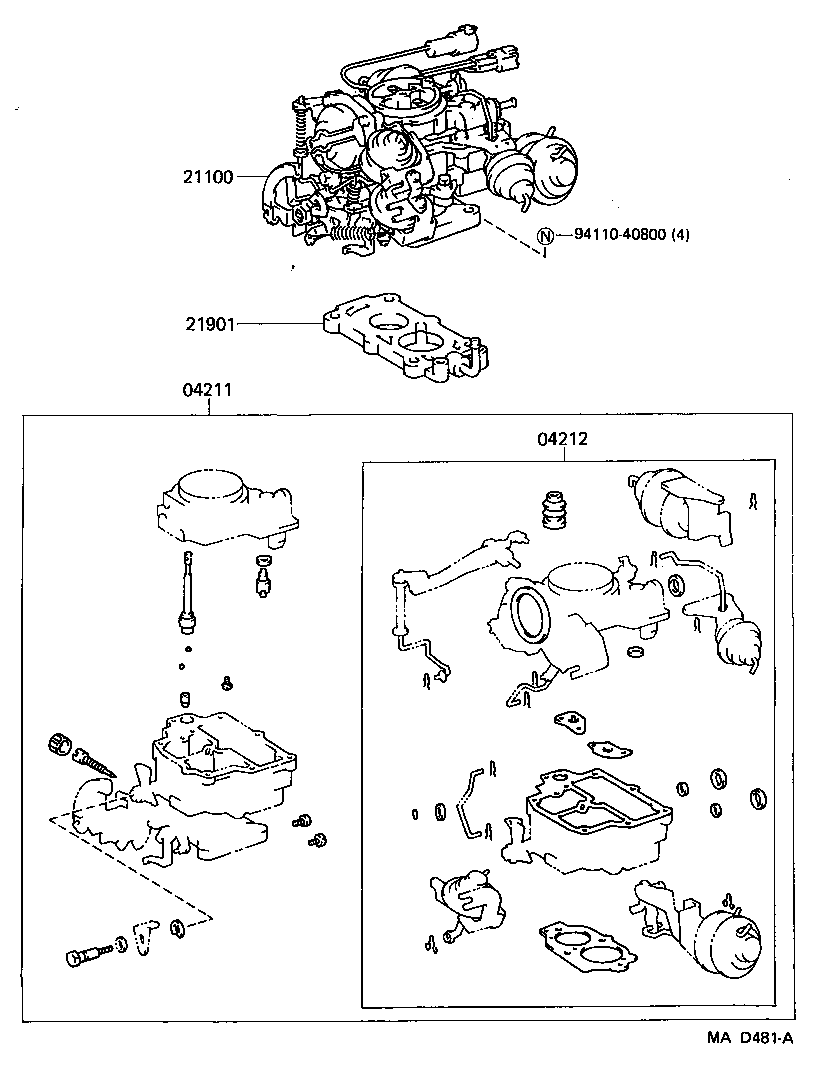

Click highlighted areas on diagram

diagram 04211 04212 21100 21901 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-11151

4EF..EP8#

 1
04212 - GASKET KIT, CARBURETOR
04212-11071

4EF..EP8#

 1
21100 - CARBURETOR ASSY
21100-11740

4EF..EP82..3FC

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-11080

4EF..EP8#

 1
Common parts
94110-40800
