EP82-AHHDU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )CAN,S,SOL,SOLL,X

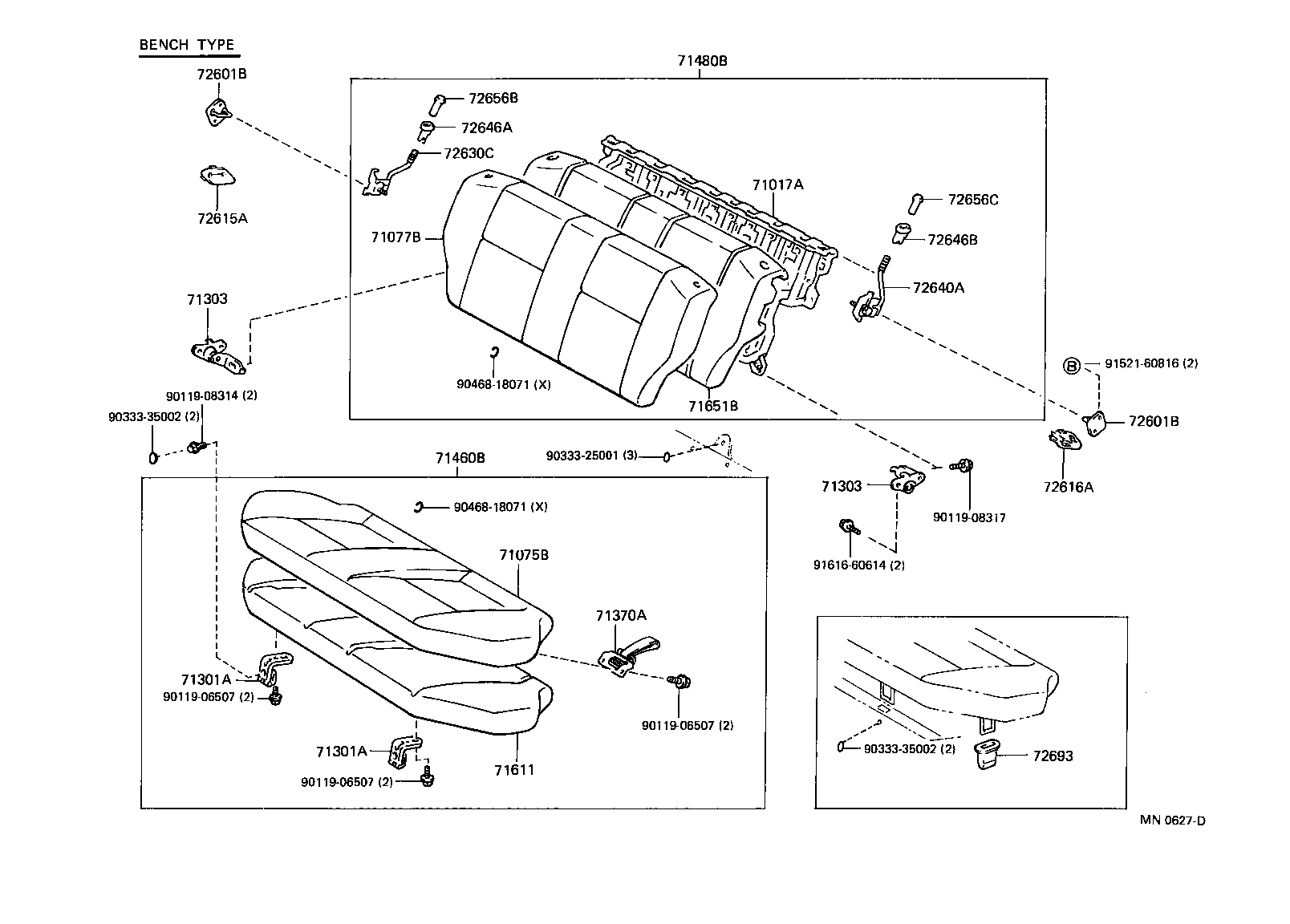

Click highlighted areas on diagram

diagram 71017A 71075B 71077B 71301A 71301A 71303 71303 71370A 71460B 71480B 71611 71651B 72601B 72601B 72615A 72616A 72630C 72640A 72646A 72646B 72656B 72656C 72693 9011906507 9011906507 9011906507 9011908314 9011908317 9033325001 9033335002 9033335002 9046818071 9046818071 9152160816 9161660614
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-10070

EP82..CBR;EP85,NP80..S,SOL,SOLL,X;EP82..(S,SOL,SOLL)..EFI

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1020004

EP82..S,SI

BLUE,TRIM8#

 1
71065-1021003

EP82,NP80..SOL

ｱﾘ(ﾍﾞﾝﾁ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),GRAY,TRIM1#

 1
71065-1018003

EP82,NP80..SOL

GRAY,TRIM1#

 1
71065-1020003

EP82..CAN,CANSI,S,SI

GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1C39003

EP82,NP80..SOL

GRAY,TRIM1#

 1
71077-1C42003

EP82..CAN,S

GRAY,TRIM1#

 1
71077-1C42004

EP82..S

BLUE,TRIM8#

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-10080

EP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)

左側

 1
71301-10090

EP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)

右側

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-10080

EP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)

左側

 1
71301-10090

EP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)

右側

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10030

EP8#,NP80

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10030

EP8#,NP80

 2
71370A - HOLDER ASSY, REAR SEAT CUSHION
71370-1001003

EP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)

GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-1015003

EP82,NP80..SOL

***,ｱﾘ(ﾍﾞﾝﾁ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),GRAY,TRIM1#

 1
71560-1014003

EP82,NP80..SOL

***,GRAY,TRIM1#

 1
71560-1018003

EP82..CAN,CANSI,S,SI

***,GRAY,TRIM1#

 1
71560-1018004

EP82..S,SI

***,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1C44003

EP82..CAN,S

***,GRAY,TRIM1#

 1
71480-1C37003

EP82,NP80..SOL

***,GRAY,TRIM1#

 1
71480-1C44004

EP82..S

***,BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71503-10020

EP82,NP80

 1
71503-10030

EP82,NP80..CAN,SOL,SOLL

ｱﾘ(ﾍﾞﾝﾁ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ)

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-10210

EP82..CBR;EP85,NP80..S,SOL,SOLL,X;EP82..(S,SOL,SOLL)..EFI

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-10060

EP8#,NP80

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-10060

EP8#,NP80

 2
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-10080

EP8#,NP80

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-10070

EP8#,NP80

 1
72646A - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1001003

EP8#,NP80

GRAY,TRIM1#

 1
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72646B - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72646-1001003

EP8#,NP80

GRAY,TRIM1#

 1
72656B - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001047

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72656-2001023

EP8#,NP80

GRAY,TRIM1#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72656C - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001047

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72656-2001023

EP8#,NP80

GRAY,TRIM1#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-10010

EP8#,NP80

 4
Common parts
90119-06507
90119-08314
90119-08317
90333-25001
90333-35002
90468-18071
91521-60816
91616-60614

(8912- )CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD

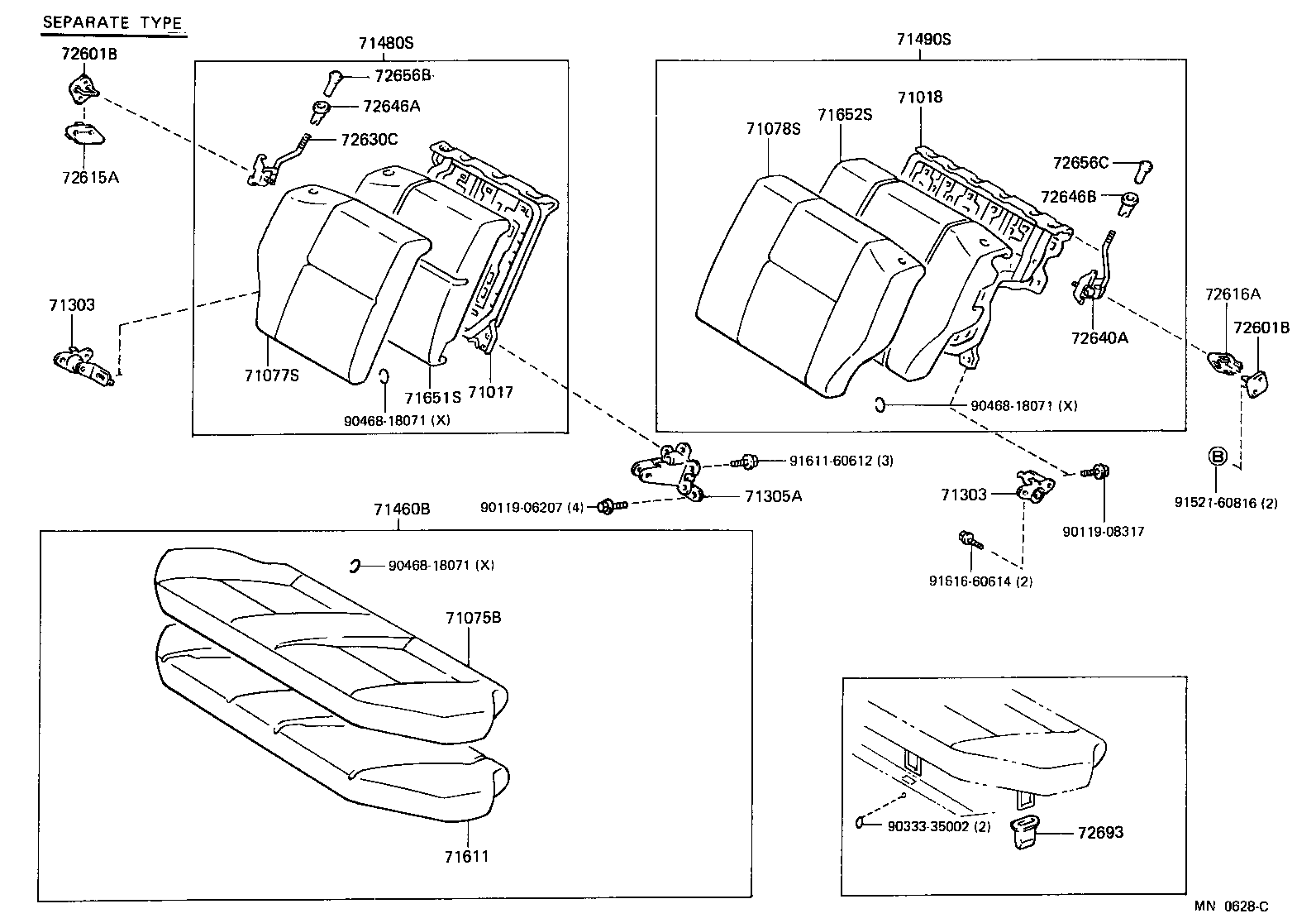

Click highlighted areas on diagram

diagram 71017 71018 71075B 71077S 71078S 71303 71303 71305A 71460B 71480S 71490S 71611 71651S 71652S 72601B 72601B 72615A 72616A 72630C 72640A 72646A 72646B 72656B 72656C 72693 9011906207 9011908317 9033335002 9046818071 9046818071 9046818071 9152160816 9161160612 9161660614
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-10080

EP8#..(CAN,GT,S,SOLL,XLTD)..(CBR,TBO);EP8#,NP80..(CAN,CANSI,GI,SI,X,XLTD)..(DSL,EFI)

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-10030

EP8#..(CAN,GT,S,SOLL,XLTD)..(CBR,TBO);EP8#,NP80..(CAN,CANSI,GI,SI,X,XLTD)..(DSL,EFI)

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1020004

EP82..S,SI

BLUE,TRIM8#

 1
71065-1021003

EP82,NP80..SOL

ｱﾘ(ﾍﾞﾝﾁ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),GRAY,TRIM1#

 1
71065-1018003

EP82,NP80..SOL

GRAY,TRIM1#

 1
71065-1020003

EP82..CAN,CANSI,S,SI

GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1C45004

EP82..S,SI

BLUE,TRIM8#

 1
71077-1C45003

EP82..CAN,CANSI,S,SI

GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1068004

EP82..S,SI

BLUE,TRIM8#

 1
71078-1068003

EP82..CAN,CANSI,S,SI

GRAY,TRIM1#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10030

EP8#,NP80

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10030

EP8#,NP80

 2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-10030

EP8#..(CAN,CANSI,GI,SI,XLTD)..EFI;EP8#,NP80..(CAN,GT,S,SOLL,X,XLTD)..(CBR,DSL,TBO)

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-1015003

EP82,NP80..SOL

***,ｱﾘ(ﾍﾞﾝﾁ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),GRAY,TRIM1#

 1
71560-1014003

EP82,NP80..SOL

***,GRAY,TRIM1#

 1
71560-1018003

EP82..CAN,CANSI,S,SI

***,GRAY,TRIM1#

 1
71560-1018004

EP82..S,SI

***,BLUE,TRIM8#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1C41003

EP82..CAN,CANSI,S,SI

***,GRAY,TRIM1#

 1
71480-1C41004

EP82..S,SI

***,BLUE,TRIM8#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1071004

EP82..S,SI

***,BLUE,TRIM8#

 1
71490-1071003

EP82..CAN,CANSI,S,SI

***,GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-10020

EP82,NP80

 1
71503-10030

EP82,NP80..CAN,SOL,SOLL

ｱﾘ(ﾍﾞﾝﾁ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ)

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-10260

EP8#..(CAN,GT,S,SOLL,XLTD)..(CBR,TBO);EP82,NP80..(CAN,CANSI,GI,SI,X)..(DSL,EFI)

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-10150

EP8#..(CAN,GT,S,SOLL,XLTD)..(CBR,TBO);EP82,NP80..(CAN,CANSI,GI,SI,X)..(DSL,EFI)

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-10060

EP8#,NP80

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-10060

EP8#,NP80

 2
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-10080

EP8#,NP80

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-10070

EP8#,NP80

 1
72646A - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1001003

EP8#,NP80

GRAY,TRIM1#

 1
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72646B - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72646-1001004

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72646-1001003

EP8#,NP80

GRAY,TRIM1#

 1
72656B - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001047

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72656-2001023

EP8#,NP80

GRAY,TRIM1#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72656C - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001047

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72656-2001023

EP8#,NP80

GRAY,TRIM1#

 1
72656-2001047

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-10010

EP8#,NP80

 4
Common parts
90119-06207
90119-08317
90333-35002
90468-18071
91521-60816
91611-60612
91616-60614
