EP82-AHHDU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)4EF# ; (9201- )4EF#

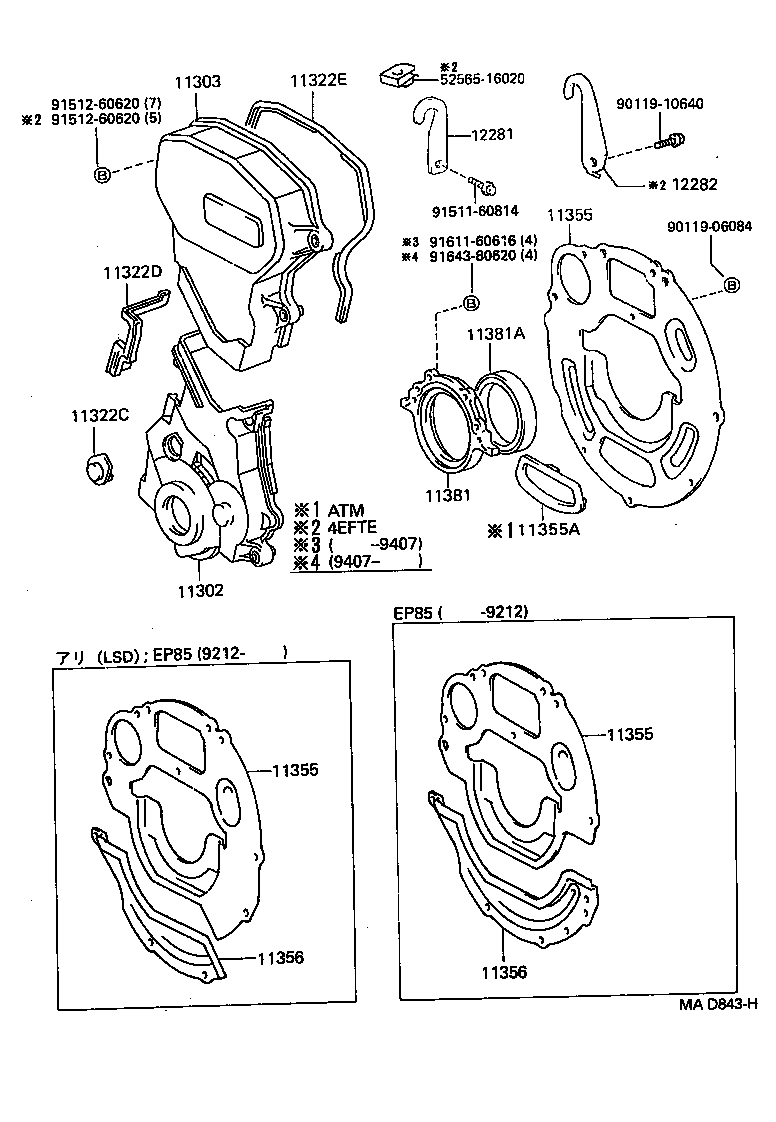

Click highlighted areas on diagram

diagram 11302 11303 11322C 11322D 11322E 11355 11355 11355 11355A 11356 11356 11381 11381A 12281 12282 5256516020 9011906084 9011910640 9151160814 9151260620 9151260620 9161160616 9164380620
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-11060

4EF#..EP8#

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-11030

4EF,4EFE..EP8#

 1
11322C - COVER, TIMING BELT, NO.3
11323-10011

4EF#..EP8#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-11040

4EF#..EP8#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-11010

4EF#..EP8#

 1
11355 - PLATE, REAR END
11355-11011

4EF#..EP82..ATM

 1
11355 - PLATE, REAR END
11355-11011

4EF#..EP82..ATM

 1
11355 - PLATE, REAR END
11355-11011

4EF#..EP82..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01548

4EF#..EP82..ATM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-10020

4EF#..EP8#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75004

4EF#..EP8#

 1
Common parts
52565-16020
90119-06084
90119-10640
91511-60814
91512-60620
91611-60616
91643-80620
