EP82-AGPXK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

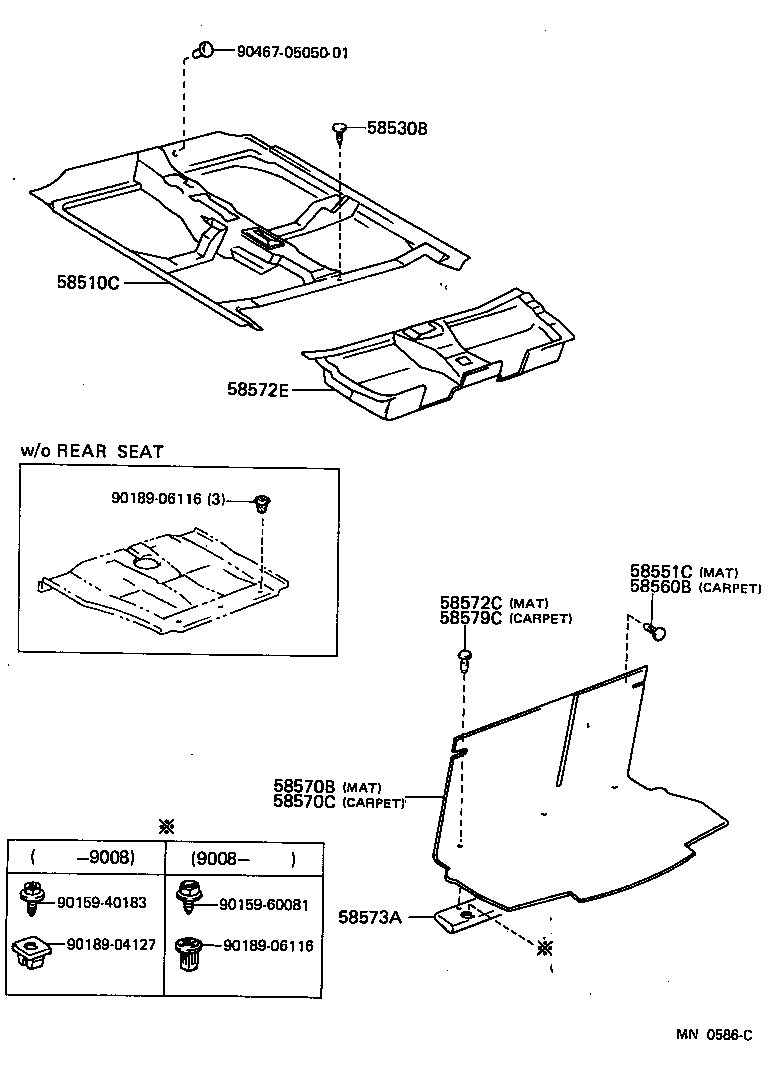

Click highlighted areas on diagram

diagram 58510C 58530B 58551C 58560B 58570B 58570C 58572C 58572E 58573A 58579C 9015940183 9015960081 9018904127 9018906116 9018906116 904670505001
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1C09003

EP82,NP80..3D..(CAN,SOL,SOLL)

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#

 1
58510-1C14003

EP82..3D..(CANSI,GI,GT,S,SI)

GRAY,TRIM1#

 1
58510-1C14004

EP82..3D..(GI,GT,S,SI)

BLUE,TRIM8#

 1
58510-1C12003

NP80..3D;EP82..3D..(CAN,SOLL)

GRAY,TRIM1#

 1
58510-1C36003

EP82..3D..(CANSI,GI,GT,S,SI)

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#

 1
58510-1C091P0

EP82,NP80..3D..(CAN,SOL,SOLL)

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#

 1
58510-1C36004

EP82..3D..(GI,GT,S,SI)

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
58510-1C121P0

NP80..3D;EP82..3D..(CAN,SOLL)

GRAY,TRIM1#

 1
58510-1C141W3

EP82..3D..(GI,GT,S,SI)

BLUE,TRIM8#

 1
58510-1C141P0

EP82..3D..(CANSI,GI,GT,S,SI)

GRAY,TRIM1#

 1
58510-1C361P0

EP82..3D..(CANSI,GI,GT,S,SI)

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#

 1
58510-1C361W3

EP82..3D..(GI,GT,S,SI)

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0601601

EP82..GI,GT,S,SI

BLACK,TRIM1#,8#

 3
90467-0601601

EP82,NP80..SOLL,X

BLACK,TRIM1#,4#

 3
90467-0601601

EP82,NP80..CAN,CANSI,SOL

BLACK,TRIM1#

 3
90467-0601601

EP82,NP80..X

BLACK,TRIM1#,4#

 3
90467-0601601

EP82,NP80..SOLL,X

BLACK,TRIM1#,4#

 3
58551C - CLIP(FOR FLOOR MAT, REAR)
90467-0601601

EP82,NP80..CAN,SOL

BLACK,TRIM1#

 15
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-0601601

EP82,NP80..X

BLACK,TRIM1#,4#

 13
90467-0601601

EP82..GI,GT,SI

BLACK,TRIM1#,8#

 14
90467-0601601

EP82,NP80..X

ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),BLACK,TRIM1#,4#

 14
90467-0601601

EP82..CAN,CANSI

BLACK,TRIM1#

 14
90467-0601601

EP82..S

ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),BLACK,TRIM1#,8#

 14
90467-0601601

EP82..S

BLACK,TRIM1#,8#

 13
58570B - MAT ASSY, REAR FLOOR
58570-1031003

EP82..(3FC,4F)..(CAN,SOL,SOLL)

GRAY,TRIM1#

 1
58570C - CARPET ASSY, REAR FLOOR
58570-1022004

EP82..GI,GT,SI

BLUE,TRIM8#

 1
58570-1022003

EP82,NP80..S,X

ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),GRAY,TRIM1#

 1
58570-1022006

EP82,NP80..X

ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),SABLE,TRIM4#

 1
58570-1029004

EP82..S

BLUE,TRIM8#

 1
58570-1029006

EP82,NP80..X

SABLE,TRIM4#

 1
58570-1022004

EP82..GI,GT,SI

BLUE,TRIM8#

 1
58570-1022004

EP82..S

ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ),BLUE,TRIM8#

 1
58570-1022003

EP82..(CAN,CANSI,GI,SI,XLTD)..EFI;EP82,NP80..(CAN,GT,SOLL,XLTD)..(CBR,DSL,TBO)

ｱﾘ(ｵｳｷﾕｳﾖｳ ﾀｲﾔ),GRAY,GRAY,TRIM1#

 1
58570-1022004

EP82..GI,GT,SI,SOLL

BLUE,TRIM8#

 1
58570-1029003

EP82,NP80..S,X

GRAY,TRIM1#

 1
58572C - CLIP, REAR FLOOR MAT SET
90467-0903243

EP82..(3FC,4F)..(CAN,SOL,SOLL)

GRAY,TRIM1#

 3
58573A - PLATE, REAR FLOOR MAT SUPPORT
58573-10010

EP8#,NP80

 1
58579C - CLIP, REAR FLOOR CARPET SET
90467-0903234

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 3
90467-0903234

EP82..GI,GT,S,SI

BLUE,TRIM8#

 3
90467-0903243

EP82..(4FC,5F)..EFI;EP85,NP80..S,SOLL,X,XLTD;EP82..(CAN,GT,S,SOLL,X)..(CBR,TBO)

GRAY,TRIM1#

 3
90467-0903234

EP82..GI,GT,S,SI

BLUE,TRIM8#

 3
90467-0903236

EP8#,NP80..SOLL,X,XLTD

SABLE,TRIM4#

 3
Common parts
90159-40183
90159-60081
90189-04127
90189-06116
90467-0505001
