EP82-AGPXK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )4EF,4EFE

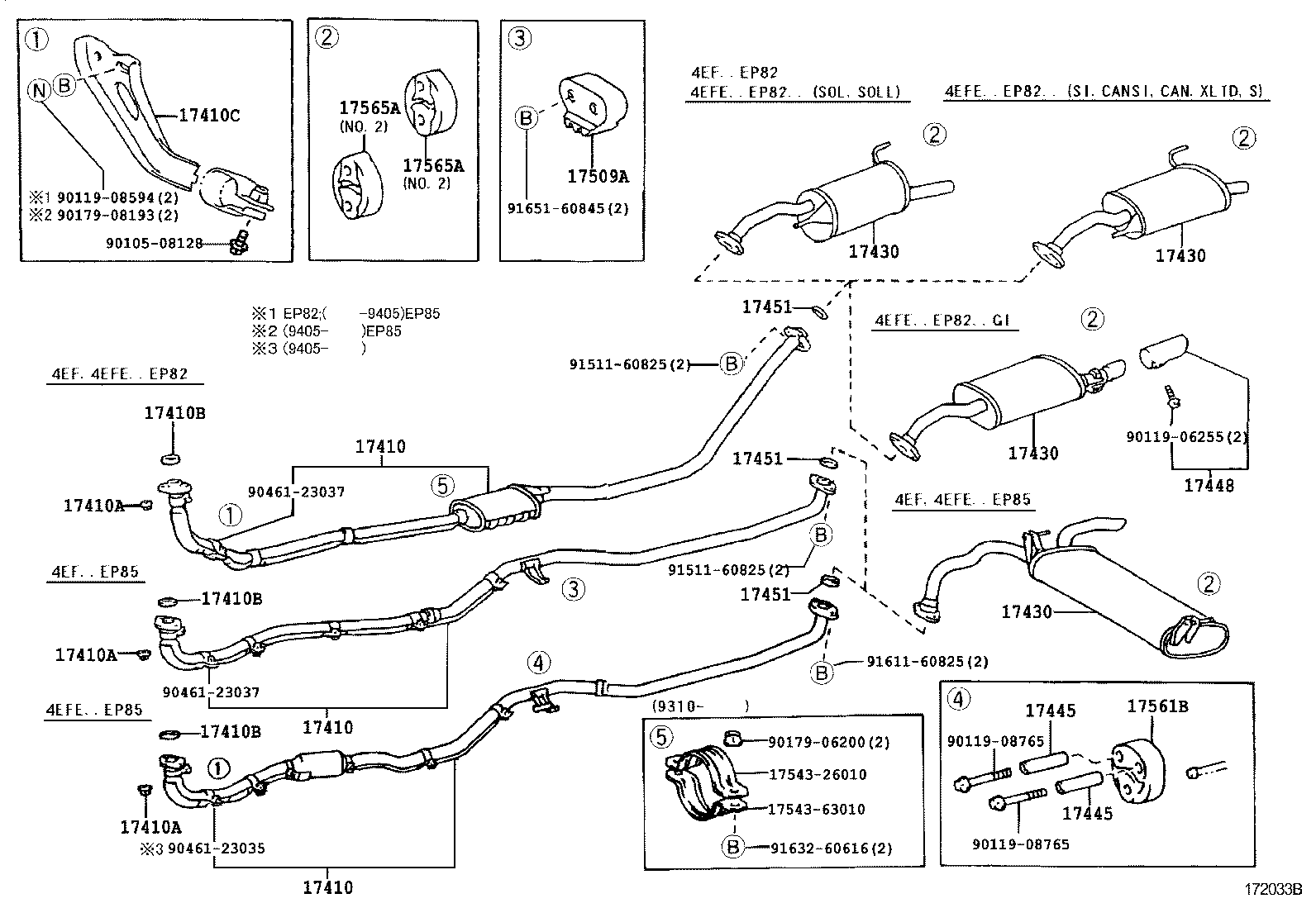

Click highlighted areas on diagram

diagram 17410 17410 17410 17410A 17410A 17410A 17410B 17410B 17410B 17410C 17430 17430 17430 17430 17445 17445 17448 17451 17451 17451 17509A 1754326010 1754363010 17561B 17565A 17565A 9010508128 9011906255 9011908594 9011908765 9011908765 9017906200 9017908193 9046123035 9046123037 9046123037 9151160825 9151160825 9161160825 9163260616 9165160845
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11390

4EF,4EFE..EP82

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11390

4EF,4EFE..EP82

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11390

4EF,4EFE..EP82

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4EF,4EFE,1N..EP8#,NP80

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4EF,4EFE,1N..EP8#,NP80

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4EF,4EFE,1N..EP8#,NP80

 2
17410B - GASKET, EXHAUST PIPE
90917-06039

4EF,4EFE,1N..EP8#,NP80

 1
17410B - GASKET, EXHAUST PIPE
90917-06039

4EF,4EFE,1N..EP8#,NP80

 1
17410B - GASKET, EXHAUST PIPE
90917-06039

4EF,4EFE,1N..EP8#,NP80

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-11070

4EF,4EFE..EP82

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11400

4EF..EP82;4EFE..EP82..SOL,SOLL

 1
17430-11410

4EFE..EP82..CAN,CANSI,S,SI,XLTD

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11400

4EF..EP82;4EFE..EP82..SOL,SOLL

 1
17430-11410

4EFE..EP82..CAN,CANSI,S,SI,XLTD

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11400

4EF..EP82;4EFE..EP82..SOL,SOLL

 1
17430-11410

4EFE..EP82..CAN,CANSI,S,SI,XLTD

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11400

4EF..EP82;4EFE..EP82..SOL,SOLL

 1
17430-11410

4EFE..EP82..CAN,CANSI,S,SI,XLTD

 1
17451 - GASKET, EXHAUST PIPE
90917-06060

4EF,4EFE,1N..EP8#,NP80

 1
17451 - GASKET, EXHAUST PIPE
90917-06060

4EF,4EFE,1N..EP8#,NP80

 1
17451 - GASKET, EXHAUST PIPE
90917-06060

4EF,4EFE,1N..EP8#,NP80

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63120

4EF#,1N..EP8#,NP80

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63120

4EF#,1N..EP8#,NP80

NO.2

 2
Common parts
17543-26010
17543-63010
90105-08128
90119-06255
90119-08594
90119-08765
90179-06200
90179-08193
90461-23035
90461-23037
91511-60825
91611-60825
91632-60616
91651-60845
