EP82-AGPVK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9601)

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914067 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

(8912-9201)CBR,EFI

Click highlighted areas on diagram

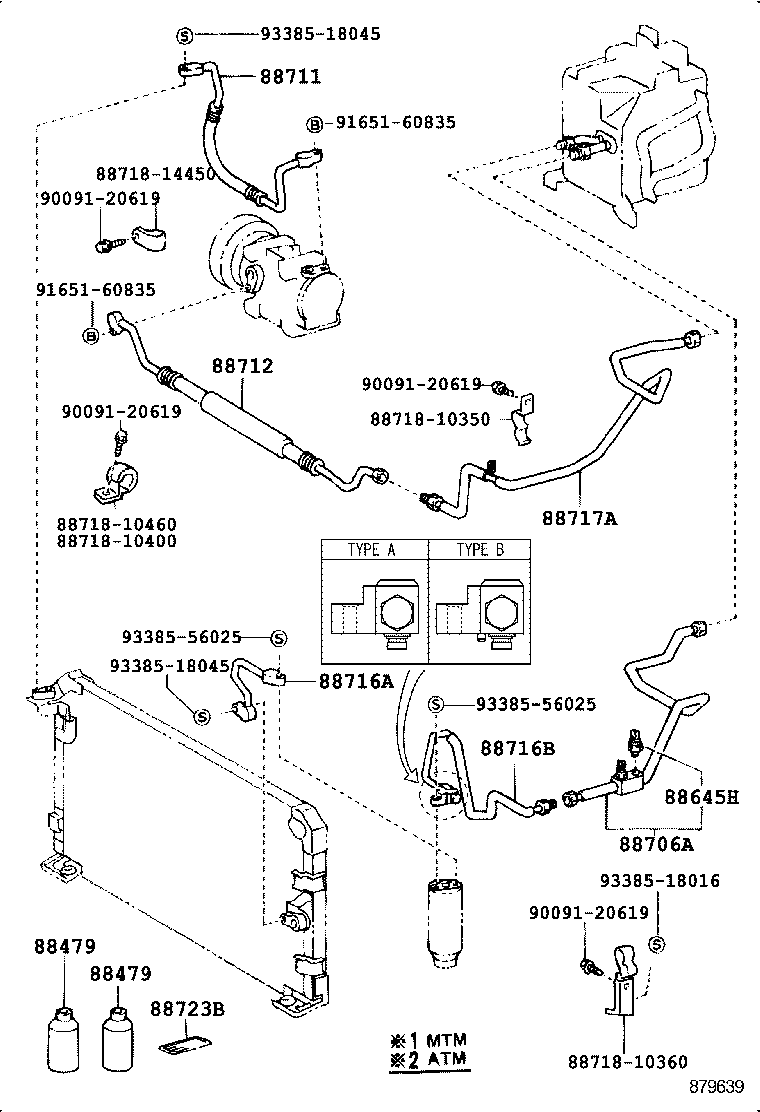

PIPING(2)

diagram 88479 88479 88645H 88706A 88711 88712 88716A 88716B 88717A 8871810350 8871810360 8871810400 8871810460 8871814450 88723B 9009120619 9009120619 9009120619 9009120619 9165160835 9165160835 9338518016 9338518045 9338518045 9338556025 9338556025
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008

EP8#..EFI

200G

 3
90986-02007

EP8#,NP80

250G

 3
90986-02004

EP8#,NP80

250G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008

EP8#..EFI

200G

 3
90986-02007

EP8#,NP80

250G

 3
90986-02004

EP8#,NP80

250G

 2
88645H - SWITCH, PRESSURE NO.1
88645-10030

EP8#

 1
88645-20050

EP8#

 1
88645-20050

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-10030

EP8#

 1
88706-10120

EP8#..(4F,4FC,5F)..(CAN,GI,S,SOL,XLTD)

 1
88706-10130

EP8#..(4F,4FC,5F)..(CAN,GI,S,SOL,XLTD)

 1
88706-10170

EP8#..(4F,4FC,5F)..(CAN,GI,S,SOL,XLTD)

 1
88706-10170

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88706-10170

EP82..GI

*AAC---*PHC OR *AAC---*LHC(DEALER OPT)

 1
88706-10150

EP8#..GI,S,XLTD

ｱﾘ(ﾒ-ｶｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88706-10170

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10170

EP85..5F..SOLL;EP82..(4F,4FC,5F)..(CAN,CANSI,GI,S,SI,SOL,SOLL)

 1
88711-10230

EP8#

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10231

EP82..GI,GT

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10200

EP82..GI

ﾒ-ｶｵﾌﾟｼﾖﾝ

 1
88711-10190

EP8#

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10231

EP82..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ｵ-ﾄｴｱｺﾝ

 1
88711-10250

EP82..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ﾏﾆﾕｱﾙｴｱｺﾝ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10160

EP82..4FC..EFI

 1
88712-10280

EP82..4FC..(GI,GT)

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88712-10390

EP8#..4FC..(GI,GT,XLTD)

*PHC

 1
88712-10390

EP82..4FC..(GI,GT)

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88712-10390

EP82..4FC..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ｵ-ﾄｴｱｺﾝ

 1
88712-10300

EP82..4FC..GI

ﾒ-ｶｵﾌﾟｼﾖﾝ

 1
88712-10410

EP82..4FC..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ﾏﾆﾕｱﾙｴｱｺﾝ

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10531

EP8#

 1
88716-10530

EP8#

 1
88716-10580

EP8#

 1
88716-10571

EP85;EP82..5D;EP82..3D..4F..SOL;EP82..3D..(3FC,4FC,5F)

 1
88716-10570

EP8#

 1
88716-10571

EP85;EP82..3D..4F..SOL;EP82..3D..3FC..SOLL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-10540

EP8#

TYPE A:ｲﾗｽﾄ参照

 1
88716-10541

EP8#

TYPE B:ｲﾗｽﾄ参照

 1
88716-10730

EP8#

ｱﾘ(ﾃﾞ-ﾗ- ｵﾌﾟｼﾖﾝ)

 1
88716-10730

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,SOL,XLTD)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10200

EP8#

 1
88717-10300

EP8#..XLTD;EP82..4FC..GI

*AAC

 1
88717-10320

EP8#..XLTD;EP82..4FC..GI

*AAC

 1
88717-10330

EP8#..GI,XLTD

*AAC

 1
88717-10330

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88717-10330

EP82..GI

*AAC

 1
88717-10330

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88717-10100

EP8#..GI,S,XLTD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010

EP8#

 1
88723-16030

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88723-16030

EP85..4FC;EP85..5F..(S,XLTD);EP82..3D..3FC..SOLL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88723-16030

EP8#..CAN,GI,GT,S,SOL,XLTD

 1
88723-16030

EP8#

 1
88723-12040

EP8#

 1
Common parts
88718-10350
88718-10360
88718-10400
88718-10460
88718-14450
90091-20619
91651-60835
93385-18016
93385-18045
93385-56025

(8912-9601)

Click highlighted areas on diagram

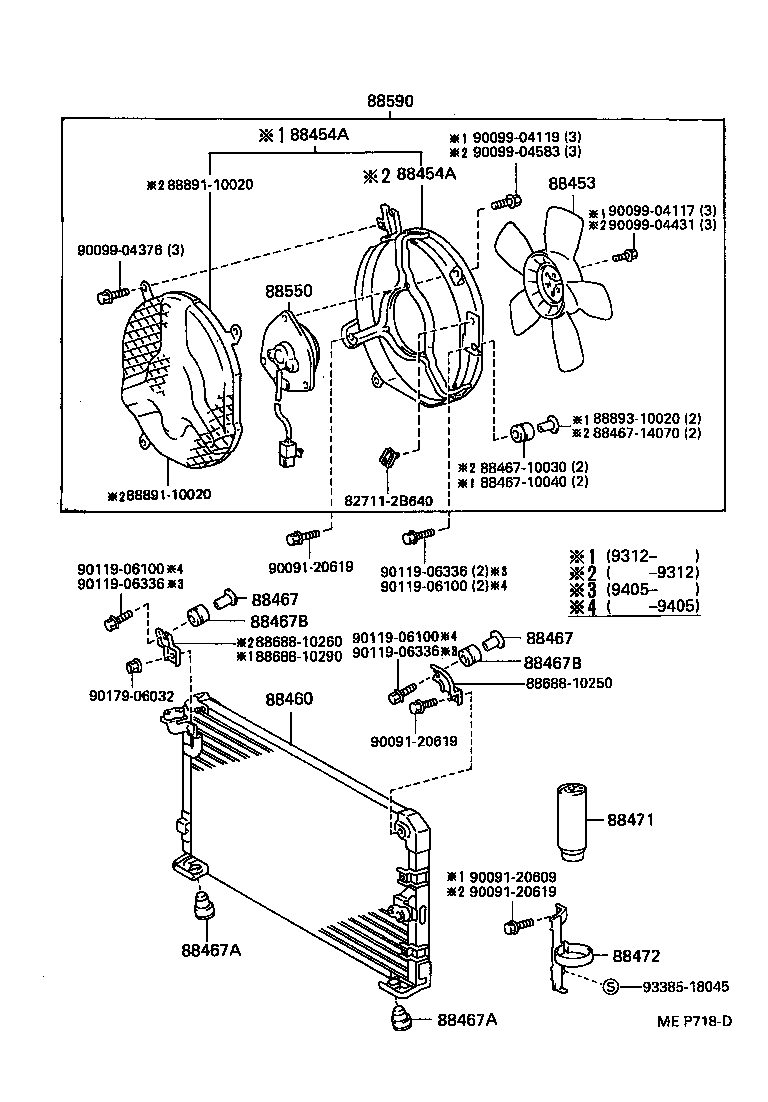

PIPING(1)

diagram 827112B640 88453 88454A 88454A 88460 88467 88467 8846710030 8846710040 8846714070 88467A 88467A 88467B 88467B 88471 88472 88550 88590 8868810250 8868810260 8868810290 8889110020 8889110020 8889310020 9009120609 9009120619 9009120619 9009120619 9009904117 9009904119 9009904376 9009904431 9009904583 9011906100 9011906100 9011906100 9011906336 9011906336 9011906336 9017906032 9338518045
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-10020

EP8#,NP80

 1
88453-10021

EP8#,NP80

 1
88454A - SHROUD, FAN
88454-10070

EP8#,NP80

 1
88454-10080

EP8#,NP80

 1
88454-10081

EP8#,NP80

 1
88454A - SHROUD, FAN
88454-10070

EP8#,NP80

 1
88454-10080

EP8#,NP80

 1
88454-10081

EP8#,NP80

 1
88460 - CONDENSER ASSY, COOLER
88460-10220

EP8#

 1
88460-10160

EP8#,NP80

 1
88460-10190

EP8#,NP80

 1
88460-10270

EP8#..EFI

ｺﾝﾌﾟﾚﾂｻ(ﾛ-ﾀｶﾞｲｹｲ=120ﾐﾘ)

 1
88460-10220

EP8#

ｺﾝﾌﾟﾚﾂｻ(ﾛｰﾀｶﾞｲｹｲ=150ﾐﾘ)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14070

EP8#

 2
88893-10020

EP8#

 2
88893-10020

EP8#

 2
88893-10020

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,SOL,XLTD)

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14070

EP8#

 2
88893-10020

EP8#

 2
88893-10020

EP8#

 2
88893-10020

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,SOL,XLTD)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-10020

EP8#

 2
88467-10020

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-10020

EP8#

 2
88467-10020

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-20040

EP8#

 2
88467-10030

EP8#

 2
88467-10030

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,SOL,XLTD)

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-20040

EP8#

 2
88467-10030

EP8#

 2
88467-10030

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,SOL,XLTD)

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

EP8#,NP80

 1
88471-16040

EP8#,NP80

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10181

EP8#,NP80

 1
88472-10180

EP8#,NP80

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-10050

EP8#

 1
88550-12130

EP8#

 1
88550-12150

EP8#

 1
88550-12150

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88590 - BLOWER ASSY, W/SHROUD
88590-10010

EP8#,NP80

 1
88590-10021

EP8#,NP80

 1
88590-10020

EP8#,NP80

 1
Common parts
82711-2B640
88467-10030
88467-10040
88467-14070
88688-10250
88688-10260
88688-10290
88891-10020
88893-10020
90091-20609
90091-20619
90099-04117
90099-04119
90099-04376
90099-04431
90099-04583
90119-06100
90119-06336
90179-06032
93385-18045

(9201-9601)EFI

Click highlighted areas on diagram

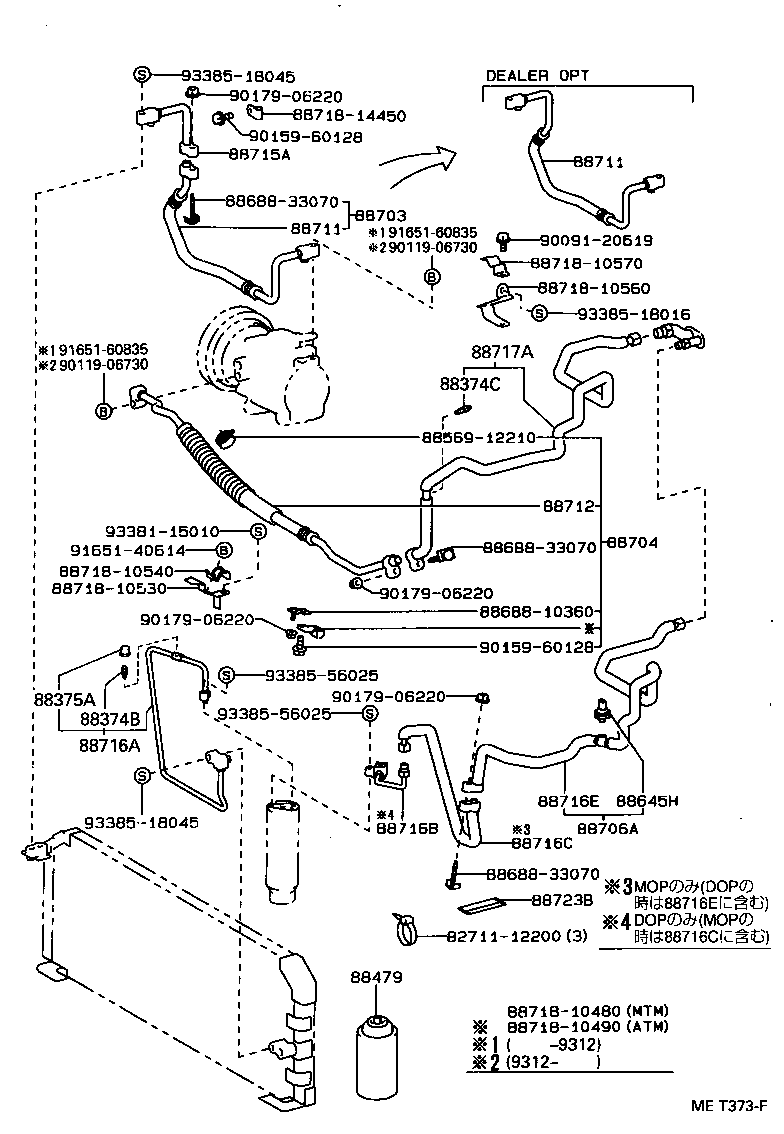

PIPING(2)

diagram 8271112200 88374B 88374C 88375A 88479 8856912210 88645H 8868810360 8868833070 8868833070 8868833070 88703 88704 88706A 88711 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 8871810480 8871810490 8871810530 8871810540 8871810560 8871810570 8871814450 88723B 9009120619 9011906730 9011906730 9015960128 9015960128 9017906220 9017906220 9017906220 9017906220 9165140614 9165160835 9165160835 9338115010 9338518016 9338518045 9338518045 9338556025 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

EP8#..EFI

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

EP8#..EFI

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010

EP8#

 1
88375-30280

EP8#..EFI

 1
88375-30280

EP8#..GI,S,SOLL,XLTD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008

EP8#..EFI

200G

 3
90986-02007

EP8#,NP80

250G

 3
90986-02004

EP8#,NP80

250G

 2
88645H - SWITCH, PRESSURE NO.1
88645-10030

EP8#

 1
88645-20050

EP8#

 1
88645-20050

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-10040

EP8#..GI,S,SOLL,XLTD

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-10110

EP8#..ATM..(CAN,GI,GT,S,SOL,XLTD)

 1
88704-10150

EP8#..ATM..(CAN,GI,GT,S,SOL,XLTD)

 1
88704-10150

EP82..4FC..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88704-10130

EP8#..4FC..(GI,S,XLTD)

 1
88704-10150

EP82..4FC..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-10030

EP8#

 1
88706-10120

EP8#..(4F,4FC,5F)..(CAN,GI,S,SOL,XLTD)

 1
88706-10130

EP8#..(4F,4FC,5F)..(CAN,GI,S,SOL,XLTD)

 1
88706-10170

EP8#..(4F,4FC,5F)..(CAN,GI,S,SOL,XLTD)

 1
88706-10170

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88706-10170

EP82..GI

*AAC---*PHC OR *AAC---*LHC(DEALER OPT)

 1
88706-10150

EP8#..GI,S,XLTD

ｱﾘ(ﾒ-ｶｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88706-10170

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10170

EP85..5F..SOLL;EP82..(4F,4FC,5F)..(CAN,CANSI,GI,S,SI,SOL,SOLL)

 1
88711-10230

EP8#

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10231

EP82..GI,GT

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10200

EP82..GI

ﾒ-ｶｵﾌﾟｼﾖﾝ

 1
88711-10190

EP8#

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10231

EP82..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ｵ-ﾄｴｱｺﾝ

 1
88711-10250

EP82..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ﾏﾆﾕｱﾙｴｱｺﾝ

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10170

EP85..5F..SOLL;EP82..(4F,4FC,5F)..(CAN,CANSI,GI,S,SI,SOL,SOLL)

 1
88711-10230

EP8#

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10231

EP82..GI,GT

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10200

EP82..GI

ﾒ-ｶｵﾌﾟｼﾖﾝ

 1
88711-10190

EP8#

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88711-10231

EP82..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ｵ-ﾄｴｱｺﾝ

 1
88711-10250

EP82..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ﾏﾆﾕｱﾙｴｱｺﾝ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10160

EP82..4FC..EFI

 1
88712-10280

EP82..4FC..(GI,GT)

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88712-10390

EP8#..4FC..(GI,GT,XLTD)

*PHC

 1
88712-10390

EP82..4FC..(GI,GT)

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ

 1
88712-10390

EP82..4FC..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ｵ-ﾄｴｱｺﾝ

 1
88712-10300

EP82..4FC..GI

ﾒ-ｶｵﾌﾟｼﾖﾝ

 1
88712-10410

EP82..4FC..GI

ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ,ﾏﾆﾕｱﾙｴｱｺﾝ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-10061

EP8#..GI,S,XLTD

 1
88715-10050

EP8#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10531

EP8#

 1
88716-10530

EP8#

 1
88716-10580

EP8#

 1
88716-10571

EP85;EP82..5D;EP82..3D..4F..SOL;EP82..3D..(3FC,4FC,5F)

 1
88716-10570

EP8#

 1
88716-10571

EP85;EP82..3D..4F..SOL;EP82..3D..3FC..SOLL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-10540

EP8#

TYPE A:ｲﾗｽﾄ参照

 1
88716-10541

EP8#

TYPE B:ｲﾗｽﾄ参照

 1
88716-10730

EP8#

ｱﾘ(ﾃﾞ-ﾗ- ｵﾌﾟｼﾖﾝ)

 1
88716-10730

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,SOL,XLTD)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-10590

EP8#..EFI

 1
88716-10610

EP8#..GI,S,XLTD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10750

EP8#..CAN,GI,S,SOL,XLTD

 1
88716-10680

EP8#..CAN,GI,S,SOL,XLTD

 1
88716-10670

EP8#..CAN,GI,S,SOL,XLTD

 1
88716-10750

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88716-10750

EP82..GI

*AAC

 1
88716-10850

EP8#..GI,S,XLTD

 1
88716-10750

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10200

EP8#

 1
88717-10300

EP8#..XLTD;EP82..4FC..GI

*AAC

 1
88717-10320

EP8#..XLTD;EP82..4FC..GI

*AAC

 1
88717-10330

EP8#..GI,XLTD

*AAC

 1
88717-10330

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88717-10330

EP82..GI

*AAC

 1
88717-10330

EP82..GI

ｱﾘ(ﾃﾞｲ-ﾗｵﾌﾟｼﾖﾝ ｴｱｺﾝ)

 1
88717-10100

EP8#..GI,S,XLTD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010

EP8#

 1
88723-16030

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88723-16030

EP85..4FC;EP85..5F..(S,XLTD);EP82..3D..3FC..SOLL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88723-16030

EP8#..CAN,GI,GT,S,SOL,XLTD

 1
88723-16030

EP8#

 1
88723-12040

EP8#

 1
Common parts
82711-12200
88569-12210
88688-10360
88688-33070
88718-10480
88718-10490
88718-10530
88718-10540
88718-10560
88718-10570
88718-14450
90091-20619
90119-06730
90159-60128
90179-06220
91651-40614
91651-60835
93381-15010
93385-18016
93385-18045
93385-56025
