Toyota Starlet EP82 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82600H - FUSE, FUSE BLOCK
90982-09002	EP8# 10A	12/1989 - 05/1995	1
88510 - UNIT ASSY, COOLER
88510-10240	EP8#	12/1989 - 12/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10090	EP8#	12/1989 - 05/1995	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1C060	EP82..S,X ｱﾘ(ｵ-ﾄｴｱｺﾝ---ﾚﾊﾞ- ﾀｲﾌﾟﾋ-ﾀｺﾝﾄﾛ-ﾙ)	12/1989 - 01/1992	1
88605-1C050	EP82..CAN,S,SOL ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	12/1989 - 01/1992	1
88605-1C090	EP82..S,X ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & AAC---LHC)	12/1989 - 01/1992	1
88605-1C120	EP82..GI,SI ｱﾘ(ｵ-ﾄｴｱｺﾝ---ﾚﾊﾞ-ﾀｲﾌﾟﾋ-ﾀｺﾝﾄﾛ-ﾙ)	12/1989 - 01/1992	1
88605-1C110	EP82..GI,SI ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	12/1989 - 01/1992	1
88605-1C140	EP82..GI,SI ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & ﾏﾆﾕｱﾙｴｱｺﾝ---*LHC)	12/1989 - 01/1992	1
88605-1C080	EP82..CAN,S,SOL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & ﾏﾆﾕｱﾙｴｱｺﾝ---*LHC)	12/1989 - 01/1992	1
88605-1C150	EP82..GI,SI ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & AAC---LHC)	12/1989 - 01/1992	1
88605-1C300	EP82..GI,SI ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & ｴｱｺﾝｽｲﾂﾁ= 1 ﾎﾞﾀﾝ)	12/1989 - 01/1992	1
88605-1C290	EP82..GI,SI ｱﾘ(ｴｱｺﾝｽｲﾂﾁ= 1 ﾎﾞﾀﾝ)	12/1989 - 01/1992	1
88605-1C270	EP82..CAN,S,SOL,X ｱﾘ(ｴｱｺﾝｽｲﾂﾁ= 1 ﾎﾞﾀﾝ)	12/1989 - 01/1992	1
88605-1C280	EP82..CAN,S,SOL,X ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & ｴｱｺﾝｽｲﾂﾁ= 1 ﾎﾞﾀﾝ)	12/1989 - 01/1992	1
88630 - RELAY ASSY, COOLER
88630-95702	EP82..5F..(EFI,TBO);EP8#..ATM..(CANSI,GI,GT,SI,X,XLTD)	12/1989 - 01/1992	4
88630-95702	EP85;EP82..CBR,TBO;EP82..(CAN,CANSI,GI,S,SI,SOLL,XLTD)..EFI	12/1989 - 05/1994	2
88630 - RELAY ASSY, COOLER
88630-95702	EP82..5F..(EFI,TBO);EP8#..ATM..(CANSI,GI,GT,SI,X,XLTD)	12/1989 - 01/1992	4
88630-95702	EP85;EP82..CBR,TBO;EP82..(CAN,CANSI,GI,S,SI,SOLL,XLTD)..EFI	12/1989 - 05/1994	2
88630A - RELAY ASSY, COOLER
88630-10090	EP8#	12/1989 - 01/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10260	EP82..CAN,CANSI,GI,GT,S,SI,SOL,X ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	12/1989 - 01/1992	1
88650-10270	EP82..CAN,CANSI,GI,GT,S,SI,SOL,X	12/1989 - 01/1992	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10300	EP8#	12/1989 - 01/1992	1
88891 - PACKING (FOR COOLER)
88578-10090	EP8#	12/1989 - 01/1992	1
Common parts
82711-95704
88569-10020
88569-17090
88569-22250
90168-50032
90179-06234
90480-24008
90480-26022
93540-54010
Linked diagrams
8401
8715

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10100	EP8#	12/1989 - 12/1993	1
88515 - VALVE, COOLER EXPANSION
88515-14062	EP8#	08/1990 - 02/1991	1
88515-14061	EP82	12/1989 - 08/1990	1
88515-14061	EP8#	02/1991 - 08/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-24050	EP8#	12/1989 - 05/1995	1
88645G - SWITCH, PRESSURE
88645-30320	EP8#	12/1989 - 12/1993	1
88648 - WIRING, COOLER, NO.1
88648-10290	EP8#	12/1989 - 12/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-10060	EP8#	12/1989 - 12/1993	1
Common parts
87116-14010
90099-00968

EP82-AGPSK (1989)

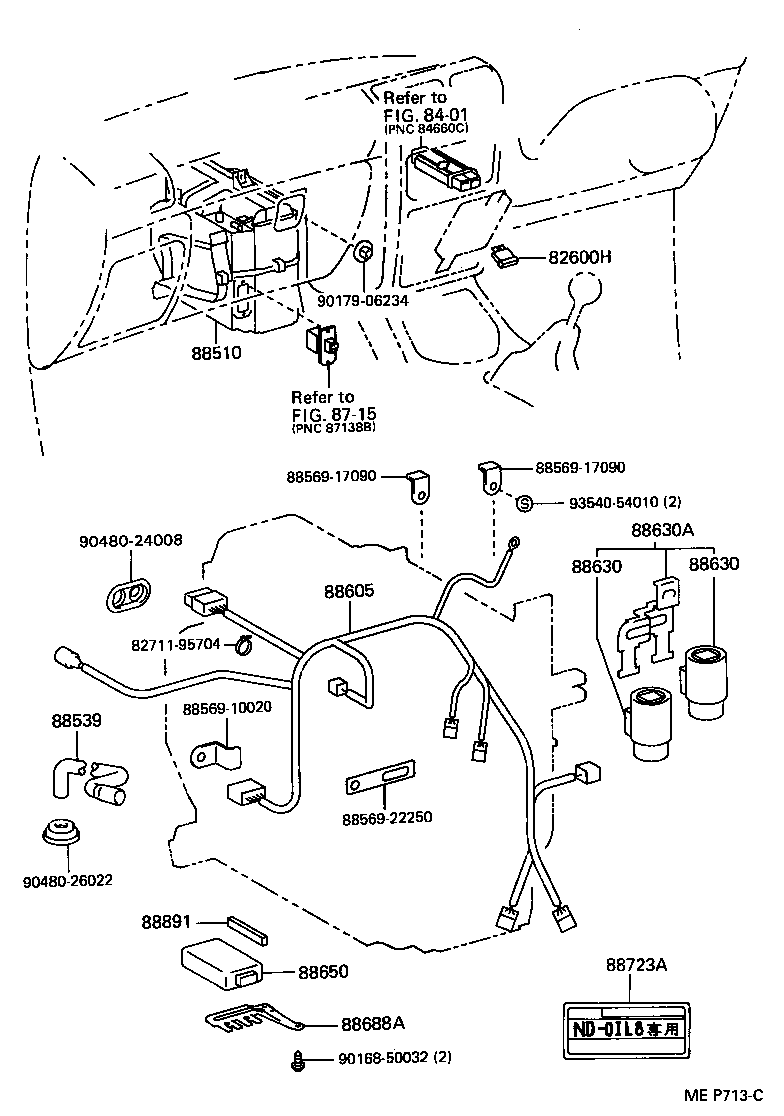

ILLUST NO. 1 OF 2(8912-9601)

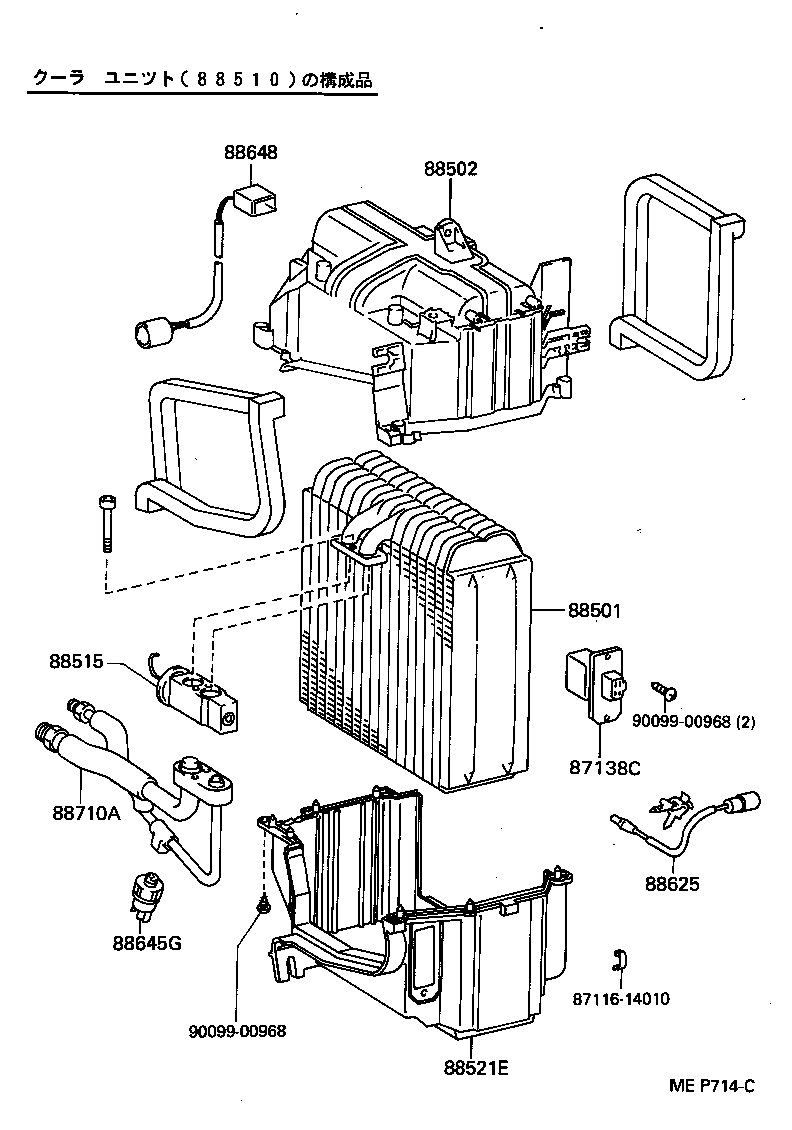

ILLUST NO. 2 OF 2(8912-9601)
