EP82-AGPSK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)4EF

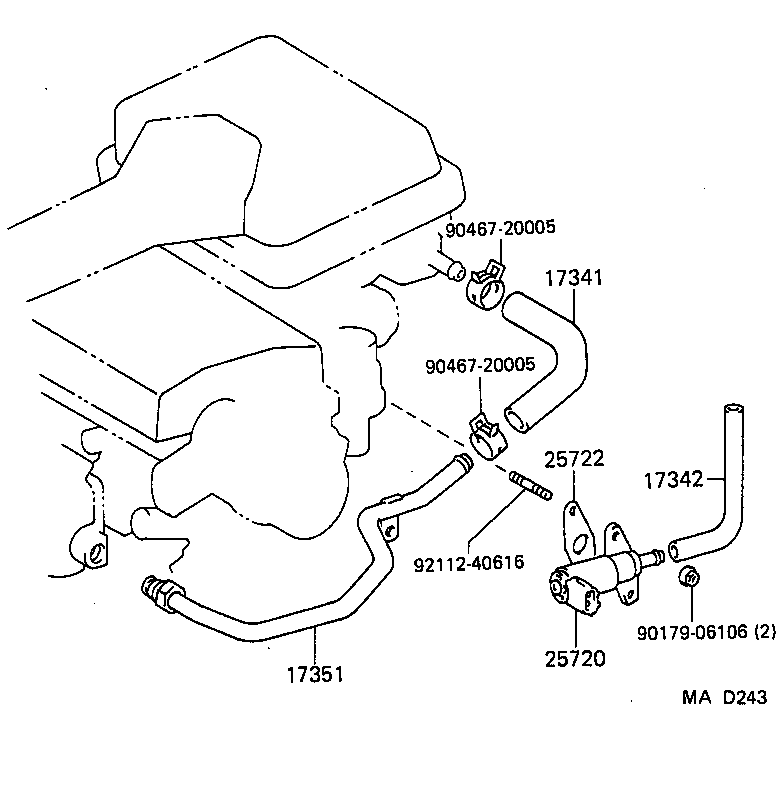

Click highlighted areas on diagram

diagram 17341 17342 17351 25720 25722 9017906106 9046720005 9046720005 9211240616
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-11170

4EF..EP8#

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-11120

4EF..EP8#

 1
17351 - MANIFOLD, AIR INJECTION
17306-11080

4EF..EP8#

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-11080

4EF..EP8#

 1
25722 - GASKET, ELECTRIC AIR CONTROL VALVE
25722-11010

4EF..EP8#

 1
Common parts
90179-06106
90467-20005
92112-40616
