EP82-AGPSK (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1992
Engine
4EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

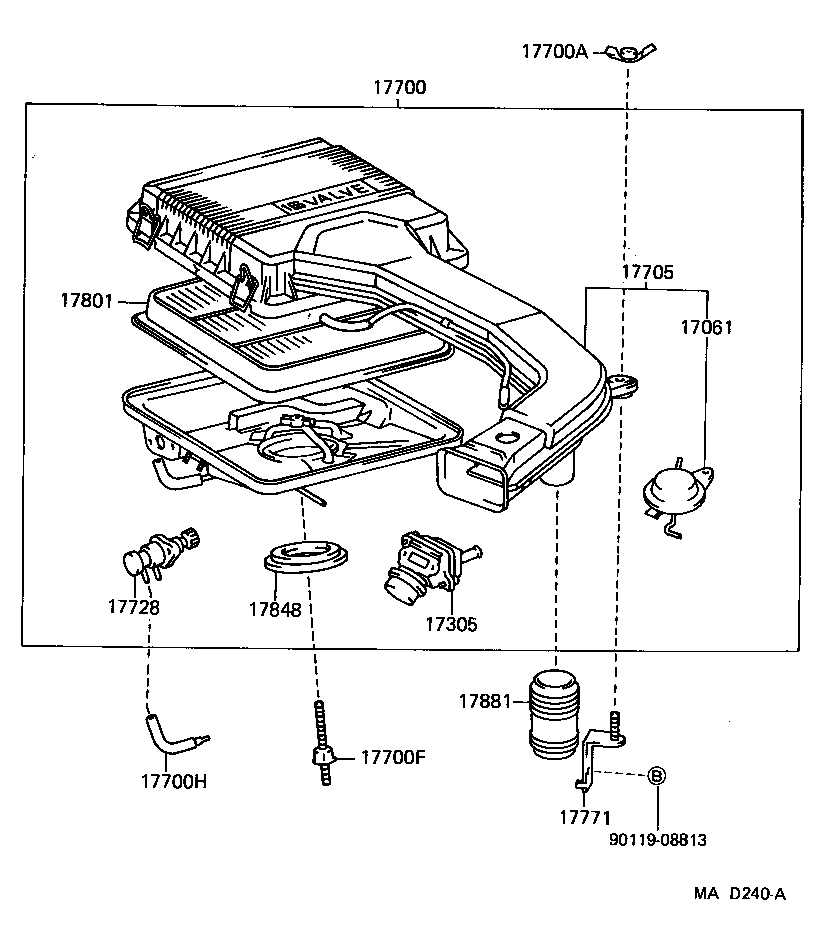

(8912-9201)4EF
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-11010 |
4EF..EP8# |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17350-11080 |
4EF..EP8# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11580 |
4EFE..EP82 |
1 | ||
| 17700-11590 |
4EF..EP82 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06016 |
4EF..EP8# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06120 |
4EF..EP8# |
1 | ||
| 17700H - HOSE, AIR | ||||
| 17341-11150 |
4EF..EP8# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11390 |
4EFE..EP82 |
1 | ||
| 17705-11430 |
4EF..EP8# |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-11100 |
4EF..EP8# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-11050 |
4EFE,4EFTE..EP82 |
1 | ||
| 17771-11070 |
4EF..EP8# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-11070 |
4EF..EP8# |
1 | ||
| 17801-11050 |
4EFE,4EFTE..EP8# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-10021 |
4EF..EP8# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-11220 |
4EFE..EP8# |
1 | ||
| 17881-11122 |
4EF..EP8# |
1 | ||
| 17881-11121 |
4EF..EP8# |
1 | ||
| Common parts | ||||
| 90119-08813 | ||||

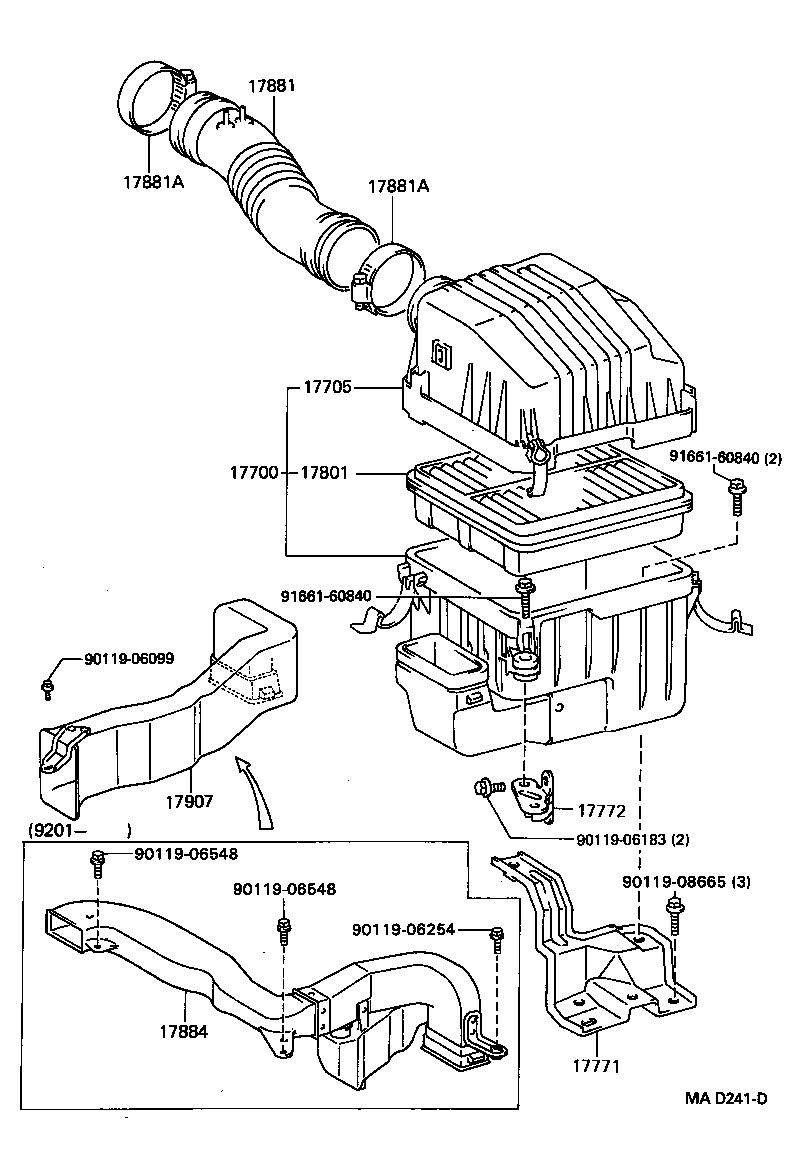

(8912- )4EFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11580 |
4EFE..EP82 |
1 | ||
| 17700-11590 |
4EF..EP82 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11390 |
4EFE..EP82 |
1 | ||
| 17705-11430 |
4EF..EP8# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-11050 |
4EFE,4EFTE..EP82 |
1 | ||
| 17771-11070 |
4EF..EP8# |
1 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-11010 |
4EFE,4EFTE..EP82 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-11070 |
4EF..EP8# |
1 | ||
| 17801-11050 |
4EFE,4EFTE..EP8# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-11220 |
4EFE..EP8# |
1 | ||
| 17881-11122 |
4EF..EP8# |
1 | ||
| 17881-11121 |
4EF..EP8# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70003 |
4EFE,4EFTE..EP8# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70003 |
4EFE,4EFTE..EP8# |
2 | ||
| 17907 - INLET SUB-ASSY, COOL AIR | ||||
| 17907-11010 |
4EFE,4EFTE..EP82 |
1 | ||
| Common parts | ||||
| 90119-06099 | ||||
| 90119-06183 | ||||
| 90119-06254 | ||||
| 90119-06548 | ||||
| 90119-08665 | ||||
| 91661-60840 | ||||
