Toyota Starlet EP82 BACK DOOR PANEL & GLASS

EP82-AGPSK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996

Engine 4EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

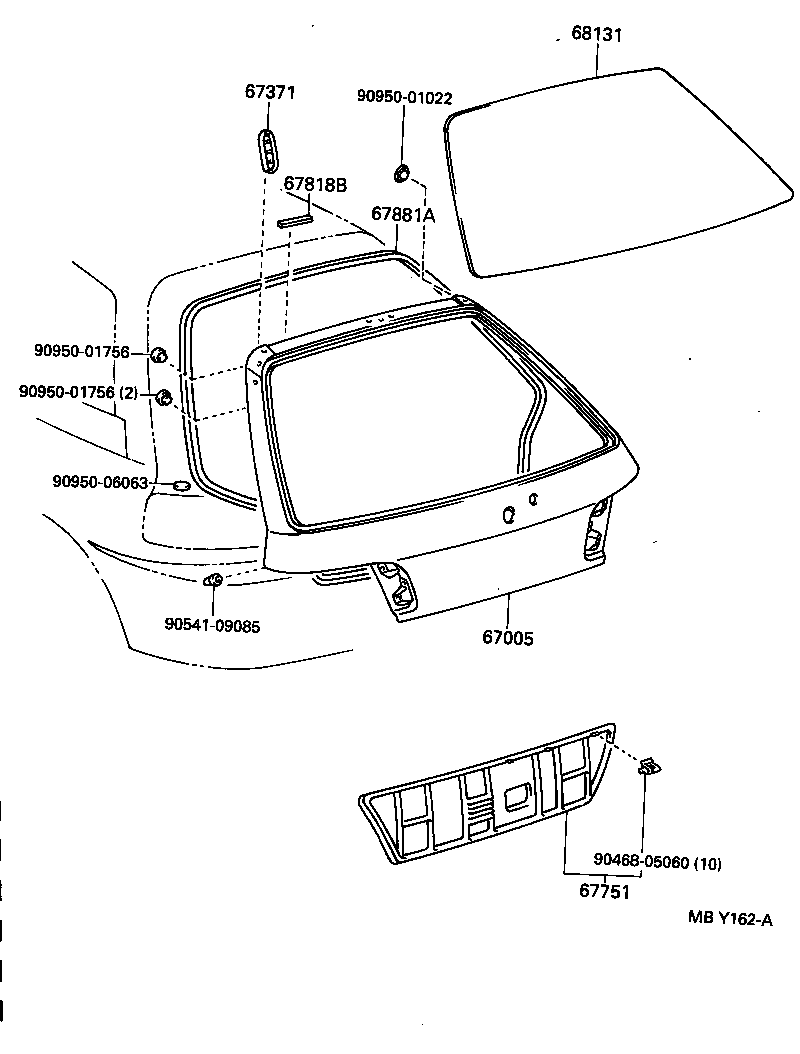

Click highlighted areas on diagram

Part #	Description	Period	Qty
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1C100	EP82,NP80..CANSI,GI,S,SI,X	12/1989 - 02/1990	1
67005-1C330	EP8#..S	01/1992 - 05/1994	1
67005-1C520	EP8#..S	05/1994 - 01/1996	1
67371 - DUCT, BACK DOOR VENTILATOR
67371-10010	EP8#,NP80	12/1989 - 01/1996	4
67371-10020	EP8#,NP80 ﾎﾞｳｼﾞﾝﾀｲｻｸﾖｳ	12/1989 - 01/1996	4
67751 - BOARD, BACK DOOR TRIM
67751-1003004	EP82..GI,GT,S,SI BLUE,TRIM8#	12/1989 - 10/1991	1
67751-1006003	EP8#,NP80 ｱﾘ(ﾊﾞﾙﾌﾞｼｷﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),GRAY,GRAY,TRIM1#	01/1992 - 05/1994	1
67751-1003003	EP8#,NP80 GRAY,TRIM1#	12/1989 - 01/1993	1
67751-1003003	EP8#..CAN,GI,GT,S GRAY,TRIM1#	01/1993 - 05/1994	1
67751-1003003	EP8#,NP80 GRAY,TRIM1#	01/1993 - 05/1994	1
67751-1003003	EP8#,NP80 GRAY,TRIM1#	05/1994 - 01/1996	1
67881A - WEATHERSTRIP, BACK DOOR
67881-10070	EP8#,NP80	12/1989 - 01/1996	1
68131 - GLASS, BACK DOOR
68131-10370	EP8#,NP80..GI,GT,S,SOLL,XLTD *EHT,厚さ=3.1,ｸﾘｱ	05/1994 - 01/1996	1
68131-10390	EP82..3D..SI;EP8#,NP80..CAN,GI,GT,S,SOLL,X *EHTT,厚さ=3.1,ﾌﾞﾛﾝｽﾞ	12/1989 - 01/1992	1
68131-10370	EP82..3D..SI;EP8#,NP80..CAN,GI,GT,S,SOLL,X *EHT,厚さ=3.1,ｸﾘｱ	12/1989 - 05/1994	1
76835A - PROTECTOR, BACK DOOR FINISH PANEL, NO.1
76835-10010	EP8#,NP80	12/1989 - 09/1991	1
Common parts
90333-20001
90468-05060
90541-09085
90950-01022
90950-01756
90950-06063

Click highlighted areas on diagram

Part #	Description	Period	Qty
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1C100	EP82,NP80..CANSI,GI,S,SI,X	12/1989 - 02/1990	1
67005-1C330	EP8#..S	01/1992 - 05/1994	1
67005-1C520	EP8#..S	05/1994 - 01/1996	1
67371 - DUCT, BACK DOOR VENTILATOR
67371-10010	EP8#,NP80	12/1989 - 01/1996	4
67371-10020	EP8#,NP80 ﾎﾞｳｼﾞﾝﾀｲｻｸﾖｳ	12/1989 - 01/1996	4
67751 - BOARD, BACK DOOR TRIM
67751-1003004	EP82..GI,GT,S,SI BLUE,TRIM8#	12/1989 - 10/1991	1
67751-1006003	EP8#,NP80 ｱﾘ(ﾊﾞﾙﾌﾞｼｷﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),GRAY,GRAY,TRIM1#	01/1992 - 05/1994	1
67751-1003003	EP8#,NP80 GRAY,TRIM1#	12/1989 - 01/1993	1
67751-1003003	EP8#..CAN,GI,GT,S GRAY,TRIM1#	01/1993 - 05/1994	1
67751-1003003	EP8#,NP80 GRAY,TRIM1#	01/1993 - 05/1994	1
67751-1003003	EP8#,NP80 GRAY,TRIM1#	05/1994 - 01/1996	1
67881A - WEATHERSTRIP, BACK DOOR
67881-10070	EP8#,NP80	12/1989 - 01/1996	1
68131 - GLASS, BACK DOOR
68131-10370	EP8#,NP80..GI,GT,S,SOLL,XLTD *EHT,厚さ=3.1,ｸﾘｱ	05/1994 - 01/1996	1
68131-10390	EP82..3D..SI;EP8#,NP80..CAN,GI,GT,S,SOLL,X *EHTT,厚さ=3.1,ﾌﾞﾛﾝｽﾞ	12/1989 - 01/1992	1
68131-10370	EP82..3D..SI;EP8#,NP80..CAN,GI,GT,S,SOLL,X *EHT,厚さ=3.1,ｸﾘｱ	12/1989 - 05/1994	1
Common parts
90468-05060
90541-09085
90950-01022
90950-01756
90950-06063
