EP82-AGPQY (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 4EFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

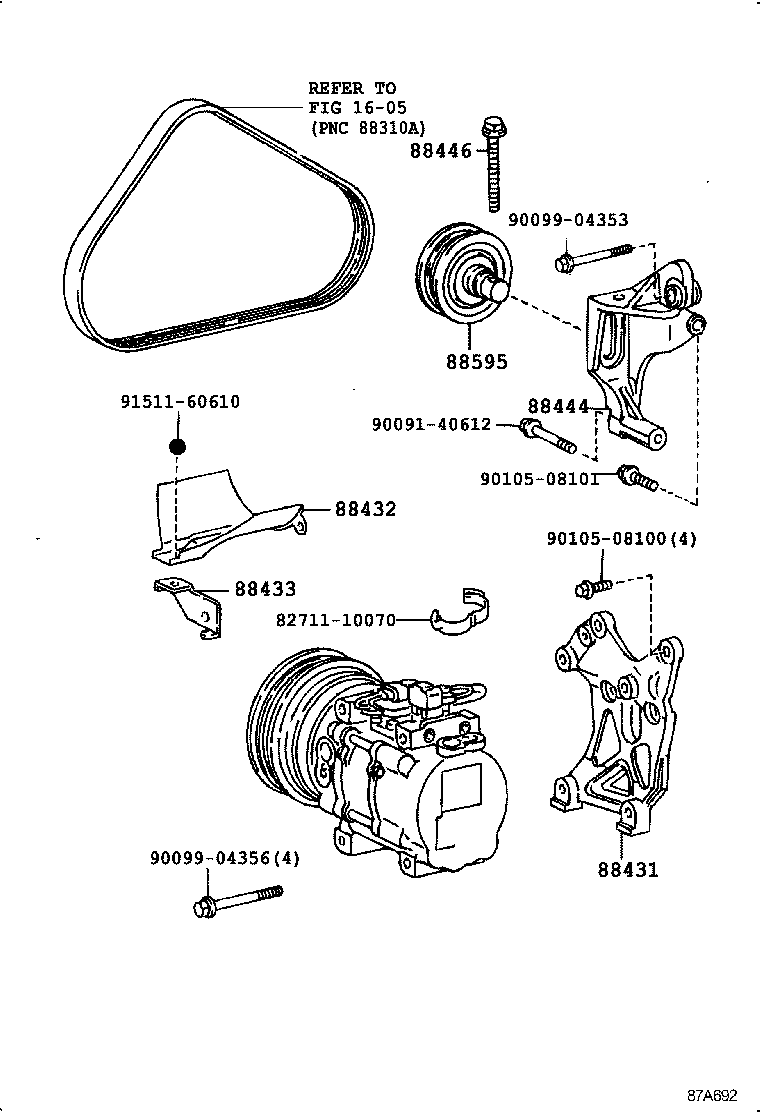

ILLUST NO. 1 OF 2(8912-9601)TBO

Click highlighted areas on diagram

diagram 1605 8271110070 88431 88432 88433 88444 88446 88595 9009140612 9009904353 9009904356 9010508100 9010508101 9151160610
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-10052

EP82..TBO

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88688-10200

EP82..TBO

 1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
88688-10130

EP82..TBO

 1
88444 - BRACKET, IDLE PULLEY
88444-10041

EP82..TBO

 1
88446 - BOLT, IDLE PULLEY
88446-12030

EP82..CAN,CANSI,GI,GT,S,SI,SOL,X

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-17010

EP82..CAN,CANSI,GI,GT,S,SI,SOL,X

 1
Common parts
82711-10070
90091-40612
90099-04353
90099-04356
90105-08100
90105-08101
91511-60610
Linked diagrams
1605

ILLUST NO. 2 OF 2(8912-9601)

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-10130

EP82..4FC..TBO

 1
88412-16060

EP82..4FC..TBO

 1
88412-16060

EP82..TBO

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-16050

EP8#

 1
88411-1A040

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88411-1A040

EP8#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-10220

EP82..TBO

*PHC

 1
88320-10210

EP82..TBO

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ & *PHC)

 1
88320-10300

EP82..TBO

 1
88320-10320

EP82..TBO

 1
88320-10390

EP82..TBO

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

EP8#,NP80

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

EP8#

 1
88403-1A010

EP8#

 1
88403-1A010

EP85;EP82..3D..SOLL;EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GI,GT,S,SOL,XLTD)

 1
88410 - CLUTCH ASSY, MAGNET
88410-10160

EP82..4FC..TBO

 1
88410-16100

EP82..4FC..TBO

 1
88410-16260

EP82..4FC..TBO

 1
88410-16260

EP82..TBO

 1
Common parts
90099-04349
90099-07114
90099-07125
