EP82-AGPQY (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
4EFTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9601)TBO

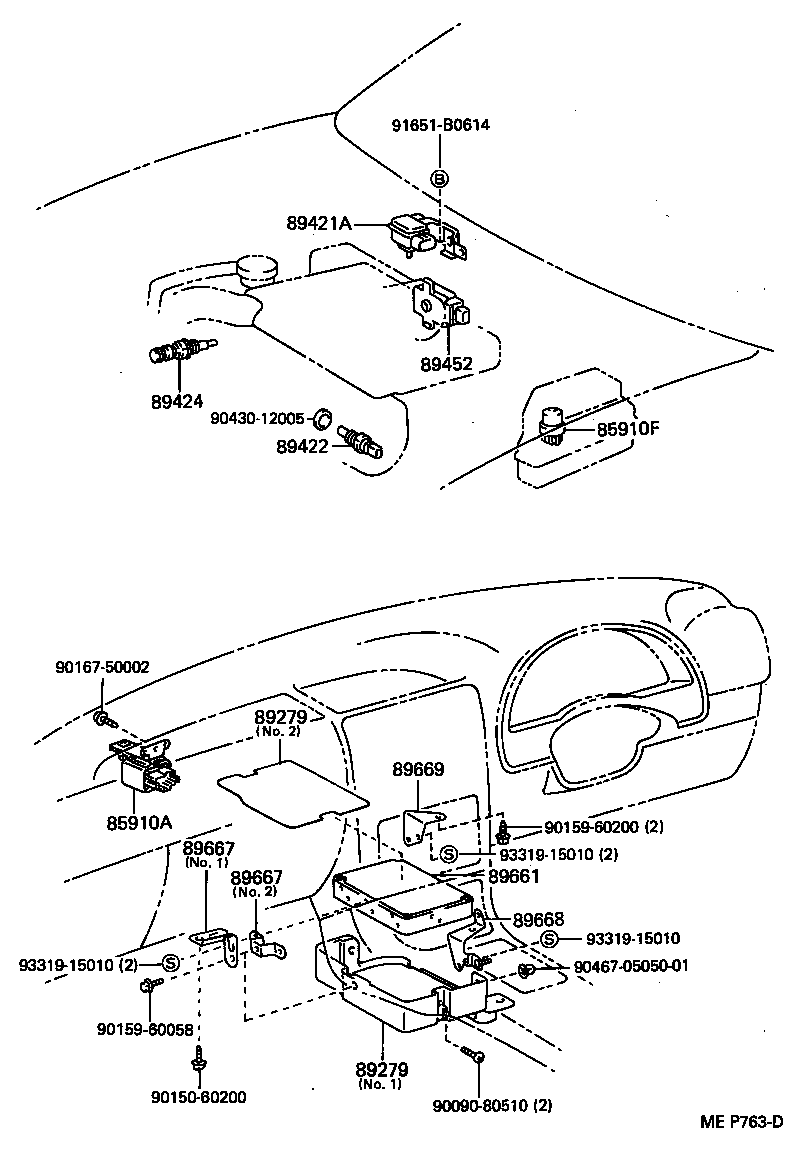

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-10010 |
EP8#..EFI,TBO |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
EP82..EFI,TBO |
1 | ||
| 90987-02009 |
EP8# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-10030 |
EP82..EFI,TBO |
1 | ||
| 89279-10030 |
EP8# NO.1 |
1 | ||
| 89279-10050 |
EP8# NO.2 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-10030 |
EP82..EFI,TBO |
1 | ||
| 89279-10030 |
EP8# NO.1 |
1 | ||
| 89279-10050 |
EP8# NO.2 |
1 | ||
| 89421A - SENSOR, TURBO PRESSURE | ||||
| 89420-10050 |
EP82..TBO |
1 | ||
| 89420-10020 |
EP82..TBO |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
EP8#..EFI,TBO |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
EP82..TBO |
1 | ||
| 89424-24010 |
EP82..TBO |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-14020 |
EP82..EFI,TBO |
1 | ||
| 89452-22090 |
EP82..4FC..TBO |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-10040 |
EP82..TBO |
1 | ||
| 89661-10110 |
EP82..4FC..TBO |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-10020 |
EP8# NO.1 |
1 | ||
| 89667-10040 |
EP8# NO.2 |
1 | ||
| 89667-10020 |
EP82..EFI,TBO |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-10020 |
EP8# NO.1 |
1 | ||
| 89667-10040 |
EP8# NO.2 |
1 | ||
| 89667-10020 |
EP82..EFI,TBO |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-10020 |
EP8#..(4FC,5F)..(CANSI,GI,GT,SI,SOLL,XLTD) |
1 | ||
| 89668-10040 |
EP8# |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-10030 |
EP82..4FC..TBO |
1 | ||
| 89669-10010 |
EP8#..(4FC,5F)..(CANSI,GI,GT,SI,SOLL,XLTD) |
1 | ||
| Common parts | ||||
| 90090-80510 | ||||
| 90150-60200 | ||||
| 90159-60058 | ||||
| 90159-60200 | ||||
| 90167-50002 | ||||
| 90430-12005 | ||||
| 90467-0505001 | ||||
| 91651-B0614 | ||||
| 93319-15010 | ||||
