EP82-AGPQY (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 4EFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)4EF,4EFE ; (9201- )4EFE

Click highlighted areas on diagram

diagram 15600A 15601
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19007

4EF,4EFE..EP8#

 1
90404-19007

4EF,4EFE..EP8#

 1
15601 - FILTER SUB-ASSY, OIL
90915-10001

4EFTE..EP82

 1
90915-10001

4EFTE..EP82

 1
90915-10001

4EF#..EP8#

 1
90915-10001

4EF#..EP8#

 1
90915-03001

4EF#..EP8#

 1
90915-03001

4EF#..EP8#

 1

(8912- )4EFTE

Click highlighted areas on diagram

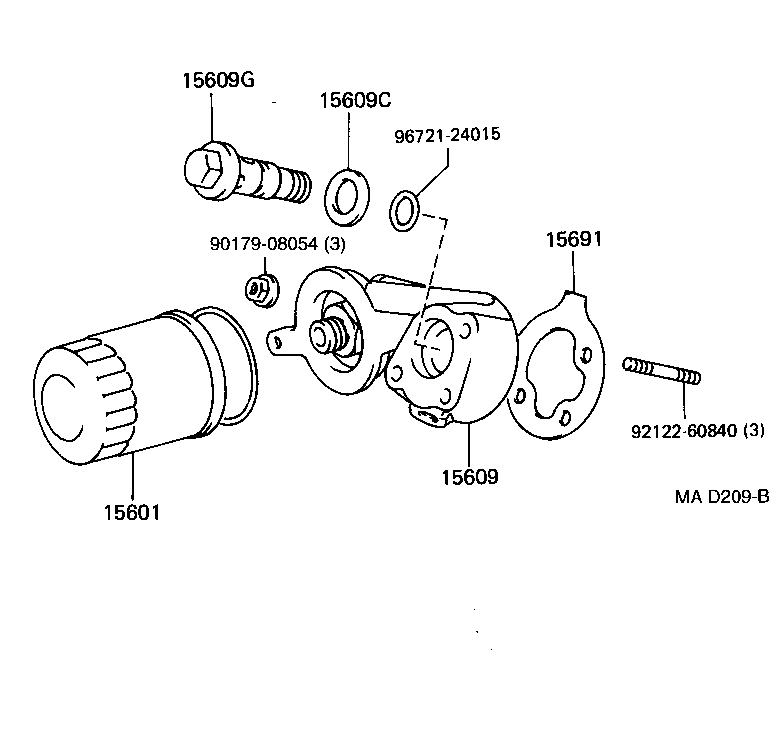

diagram 15601 15609 15609C 15609G 15691 9017908054 9212260840 9672124015
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-10001

4EFTE..EP82

 1
90915-10001

4EF#..EP8#

 1
90915-03001

4EF#..EP8#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15677-11011

4EFTE..EP82

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-24008

4EFTE..EP82

 1
90430-22008

4EFTE..EP82

 1
15609G - BOLT, UNION(FOR OIL FILTER BRACKET)
90401-19001

4EFTE..EP82

 1
15691 - GASKET, OIL FILTER
15692-11020

4EFTE..EP82

 1
Common parts
90179-08054
92122-60840
96721-24015
