EP82-AGMSU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

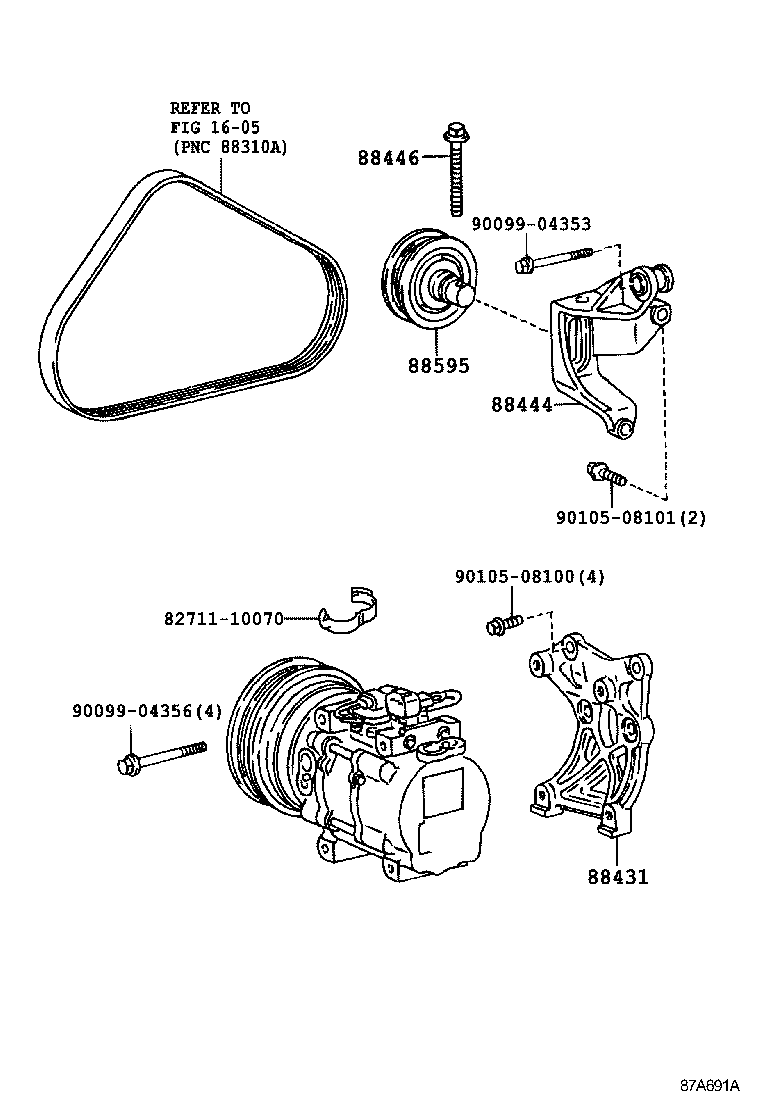

ILLUST NO. 1 OF 2(8912-9601)CBR,EFI

Click highlighted areas on diagram

diagram 8271110070 88431 88444 88446 88595 9009904353 9009904356 9010508100 9010508101
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16060

EP8#..CBR,EFI

 1
88444 - BRACKET, IDLE PULLEY
88444-10031

EP82..CAN,CANSI,GI,S,SI,SOL,X

 1
88446 - BOLT, IDLE PULLEY
88446-12030

EP82..CAN,CANSI,GI,GT,S,SI,SOL,X

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-17010

EP82..CAN,CANSI,GI,GT,S,SI,SOL,X

 1
Common parts
82711-10070
90099-04353
90099-04356
90105-08100
90105-08101

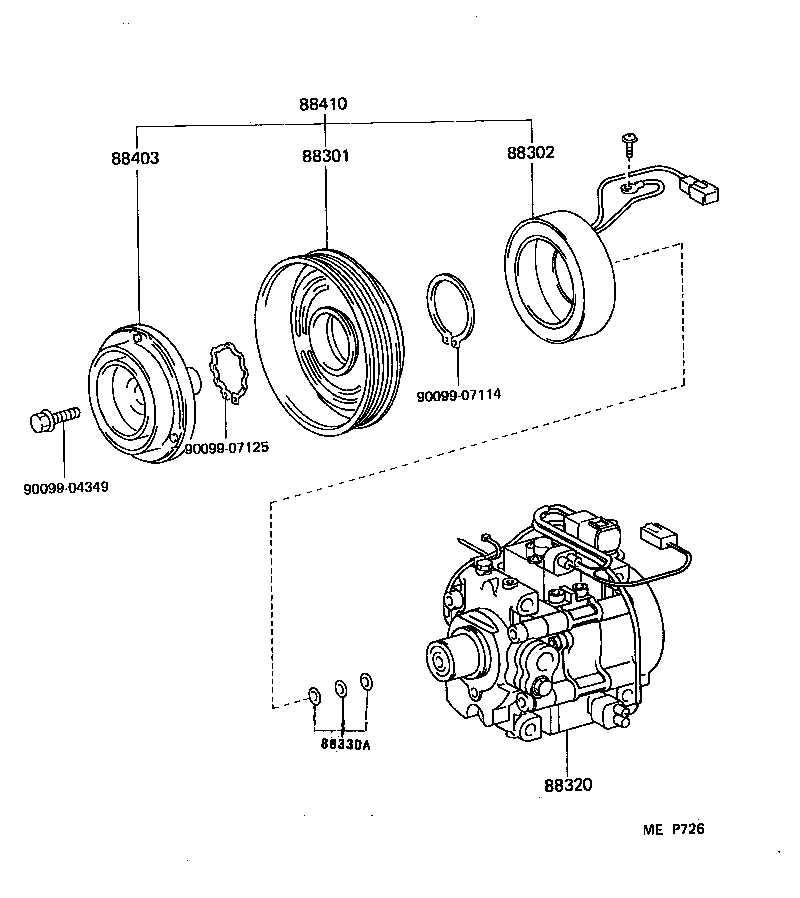

ILLUST NO. 2 OF 2(8912-9601)

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-10230

EP82..S

ｱﾘ(ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ)

 1
88320-10250

EP82..S

*LHC OR *AIC ｽｲﾂﾁ=1 ﾎﾞﾀﾝ

 1
88410 - CLUTCH ASSY, MAGNET
88410-10230

EP82..5F..S

ｱﾘ(ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ)

 1
88410-10200

EP82..5F..S

*LHC OR *AIC ｽｲﾂﾁ=1 ﾎﾞﾀﾝ

 1
Common parts
90099-04349
90099-07114
90099-07125
