EP82-AGMSU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

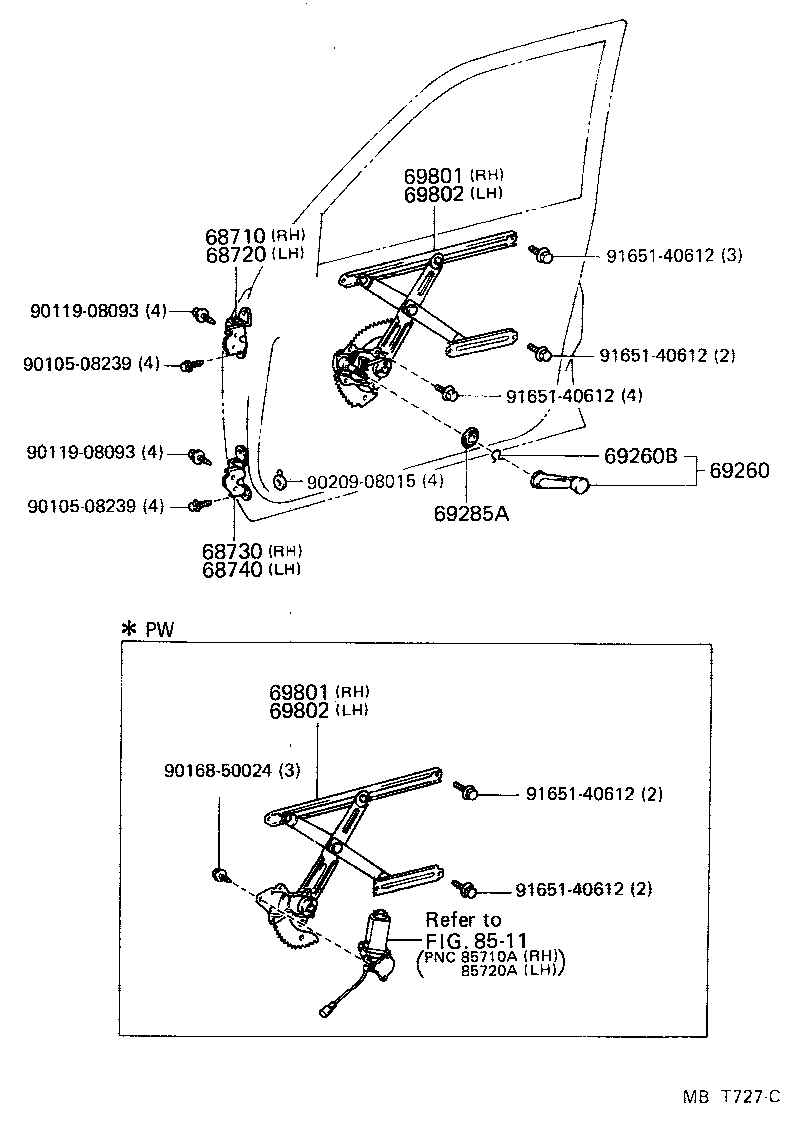

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69285A 69801 69801 69802 69802 8511 9010508239 9010508239 9011908093 9011908093 9016850024 9020908015 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-10030

EP8#,NP80

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-10030

EP8#,NP80

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-10030

EP8#,NP80

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-10030

EP8#,NP80

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004007

EP82..GI,GT,S,SI

DARK BLUE,TRIM8#

 2
69260-1004007

EP82..GI,GT,S,SI,SOLL

DARK BLUE,TRIM8#

 2
69260-1004007

EP82..GI,GT,S,SI

DARK BLUE,TRIM8#

 2
69260-1004043

EP85..CBR;EP8#..(CANSI,GI,S,SI,SOL,SOLL)..EFI;EP82,NP80..(CAN,GT,S,SOL,SOLL,X)..(CBR,DSL,TBO)

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

EP8#,NP80

 2
69285A - PLATE, DOOR VENT WINDOW CONTROL HANDLE
69285-2201008

EP82..3D..(GI,GT,S,SI)

NATURAL WHITE,TRIM1#,8#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-10050

EP8#..3D..(CAN,CANSI,GI,GT,S,SI,SOLL,XLTD)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69810-10080

EP85..CBR;EP8#..(CANSI,GI,S,SI,SOL,SOLL)..EFI;EP82,NP80..(CAN,GT,S,SOL,SOLL,X)..(CBR,DSL,TBO)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-10050

EP8#..3D..(CAN,CANSI,GI,GT,S,SI,SOLL,XLTD)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69810-10080

EP85..CBR;EP8#..(CANSI,GI,S,SI,SOL,SOLL)..EFI;EP82,NP80..(CAN,GT,S,SOL,SOLL,X)..(CBR,DSL,TBO)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-10090

EP85..CBR;EP8#..(CANSI,GI,S,SI,SOL,SOLL)..EFI;EP82,NP80..(CAN,GT,S,SOL,SOLL,X)..(CBR,DSL,TBO)

 1
69802-10050

EP8#..3D..(CAN,CANSI,GI,GT,S,SI,SOLL,XLTD)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-10090

EP85..CBR;EP8#..(CANSI,GI,S,SI,SOL,SOLL)..EFI;EP82,NP80..(CAN,GT,S,SOL,SOLL,X)..(CBR,DSL,TBO)

 1
69802-10050

EP8#..3D..(CAN,CANSI,GI,GT,S,SI,SOLL,XLTD)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
Common parts
90105-08239
90119-08093
90168-50024
90209-08015
91651-40612
Linked diagrams
8511
