EP82-AGMSU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)CAN,S,X

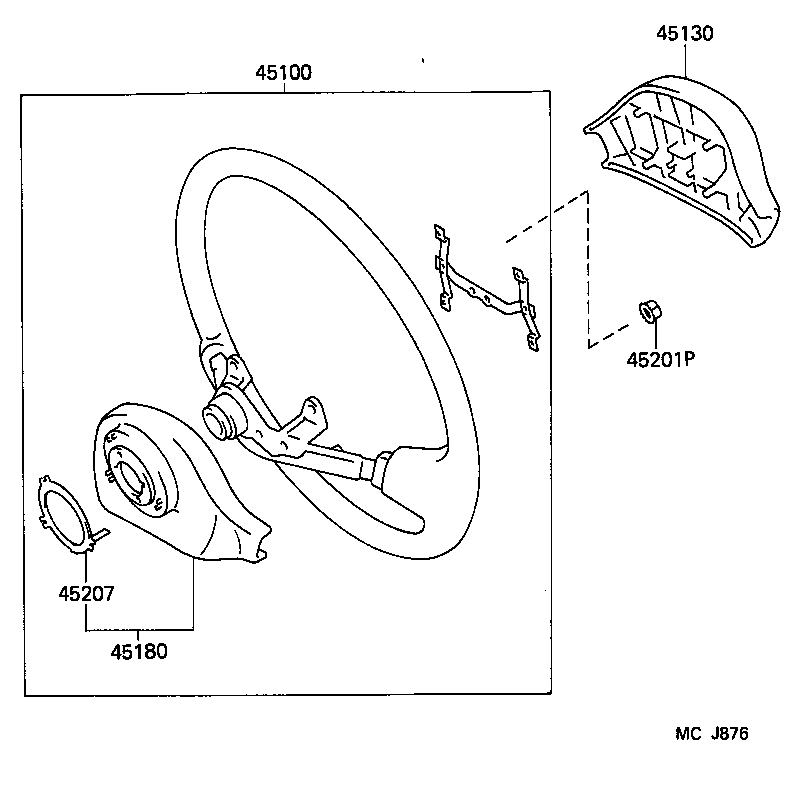

Click highlighted areas on diagram

2-SPOKE,ｳﾚﾀﾝ

diagram 45100 45130 45180 45201P 45207
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1032003

EP82,NP80..CAN,S,X

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,2-SPOKE,ｳﾚﾀﾝ,GRAY,GRAY,TRIM1#

 1
45100-1032004

EP82..S

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,2-SPOKE,ｳﾚﾀﾝ,BLUE,BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-1017003

EP82,NP80..CAN,S,X

2-SPOKE,ｳﾚﾀﾝ,GRAY,GRAY,TRIM1#

 1
45130-1017004

EP82..S

2-SPOKE,ｳﾚﾀﾝ,BLUE,BLUE,TRIM8#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1002003

EP85;EP82,NP80..CAN,S,X

GRAY,TRIM1#

 1
45180-1002004

EP82..S

BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP8#,NP80

 1
45207 - RING, HORN CONTACT
45176-24020

EP85;EP82,NP80..CAN,S,X

 1
