EP82-AGMSK (1992)
Toyota Starlet
ILLUST NO. 1 OF 2(8912-9601)

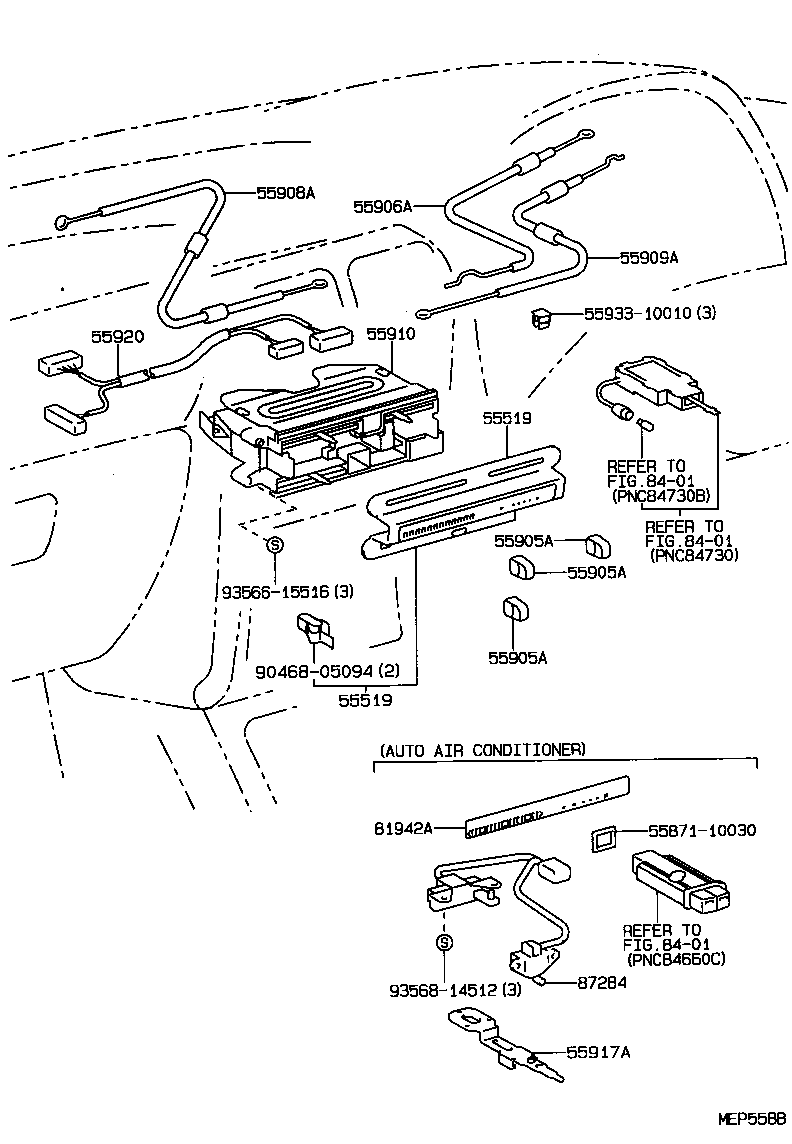

LEVER TYPE CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-10130 |
EP8#..GI,S ﾅｼ(*AIC) |
1 | ||
| 55519-10130 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55519-10130 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55519-10150 |
EP8#..GI,S *AAC---*LHC |
1 | ||
| 55519-10200 |
EP8#..GI,S |
1 | ||
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-10130 |
EP8#..GI,S ﾅｼ(*AIC) |
1 | ||
| 55519-10130 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55519-10130 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55519-10150 |
EP8#..GI,S *AAC---*LHC |
1 | ||
| 55519-10200 |
EP8#..GI,S |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EP8#,NP80..GI,S,SOL,SOLL |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,S,SOL,SOLL |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EP8#,NP80..GI,S,SOL,SOLL |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,S,SOL,SOLL |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EP8#,NP80..GI,S,SOL,SOLL |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,S,SOL,SOLL |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-10170 |
EP8#,NP80..GI,S,SOL,SOLL |
1 | ||
| 55906-10170 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55906-10170 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-10090 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55908-10090 |
EP8#,NP80..GI,S,SOL,SOLL |
1 | ||
| 55908-10090 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-10080 |
EP8#,NP80 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-10310 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55910-10400 |
EP8#..GI,S *AAC---*LHC |
1 | ||
| 55910-10310 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55910-10310 |
EP8#,NP80..GI,S,SOL,SOLL |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-10060 |
EP8#..GI,S,XLTD |
1 | ||
| 55917-10060 |
EP82..3FC..S;EP8#..SOLL..EFI;EP8#,NP80..(4FC,5F)..(CAN,CANSI,GI,GT,S,SI,X,XLTD) |
1 | ||
| 55920 - HARNESS ASSY, HEATER CONTROL SUB WIRE | ||||
| 55920-10010 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55920-10010 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55920-10010 |
EP8#,NP80..GI,S,SOL,SOLL |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-10050 |
NP80..X;EP82..GI,S,SI |
1 | ||
| 81942-10050 |
EP8#..CAN,S,SOLL |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-10050 |
EP82..GI,S,SI |
1 | ||
| 88032-10050 |
EP82..S *AAC---*LHC |
1 | ||
| 88032-10050 |
EP8#..CAN,S,SOLL |
1 | ||
| 88605-1M210 |
EP8#..GI,S ｱﾘ(ﾚﾊﾞ- ｼｷ ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88032-10050 |
EP8#..GI,S *AAC---*LHC(DEALER OPT) |
1 | ||
| Common parts | ||||
| 55871-10030 | ||||
| 55933-10010 | ||||
| 90468-05094 | ||||
| 93566-15516 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8912-9601)

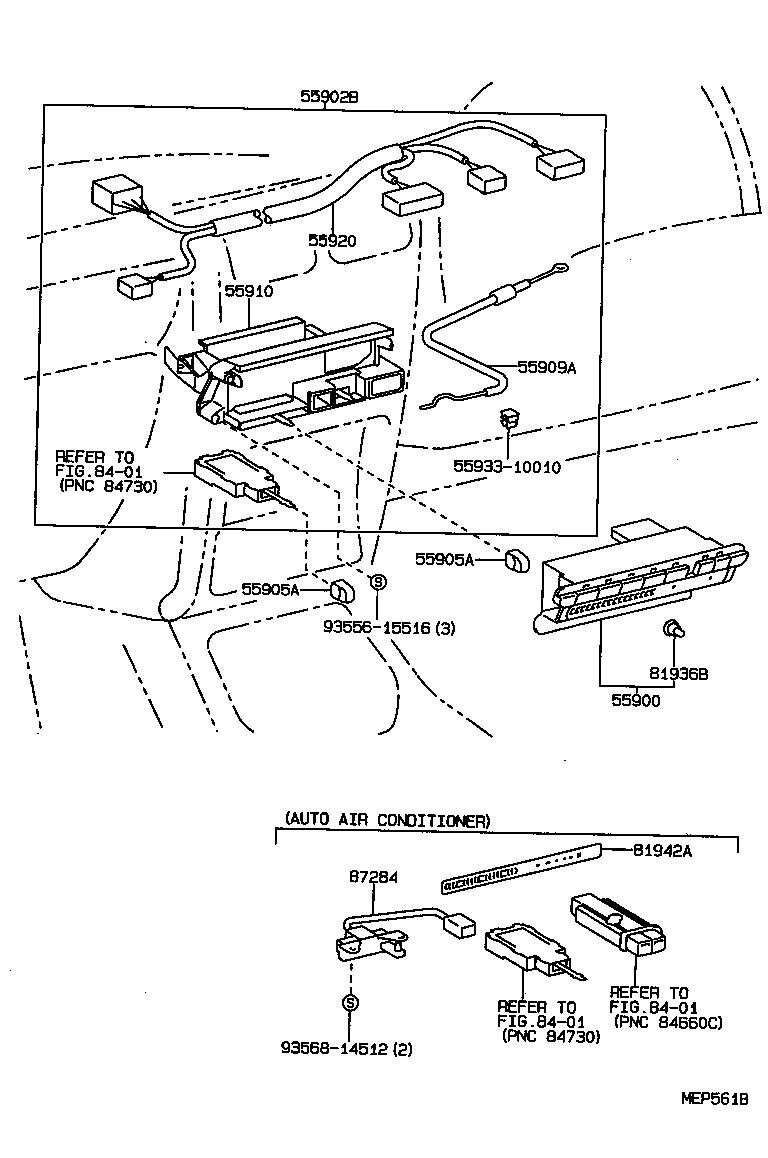

PUSH TYPE CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EP8#,NP80..GI,S,SOL,SOLL |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,S,SOL,SOLL |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EP8#,NP80..GI,S,SOL,SOLL |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
4 | ||
| 55905-89115 |
EP8#,NP80..CAN,S,SOL,SOLL |
4 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-10080 |
EP8#,NP80 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-10310 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55910-10400 |
EP8#..GI,S *AAC---*LHC |
1 | ||
| 55910-10310 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55910-10310 |
EP8#,NP80..GI,S,SOL,SOLL |
1 | ||
| 55920 - HARNESS ASSY, HEATER CONTROL SUB WIRE | ||||
| 55920-10010 |
EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X |
1 | ||
| 55920-10010 |
EP8#,NP80..CAN,S,SOL,SOLL |
1 | ||
| 55920-10010 |
EP8#,NP80..GI,S,SOL,SOLL |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-10050 |
NP80..X;EP82..GI,S,SI |
1 | ||
| 81942-10050 |
EP8#..CAN,S,SOLL |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-10050 |
EP82..GI,S,SI |
1 | ||
| 88032-10050 |
EP82..S *AAC---*LHC |
1 | ||
| 88032-10050 |
EP8#..CAN,S,SOLL |
1 | ||
| 88605-1M210 |
EP8#..GI,S ｱﾘ(ﾚﾊﾞ- ｼｷ ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88032-10050 |
EP8#..GI,S *AAC---*LHC(DEALER OPT) |
1 | ||
| Common parts | ||||
| 55933-10010 | ||||
| 93556-15516 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8912-9601)

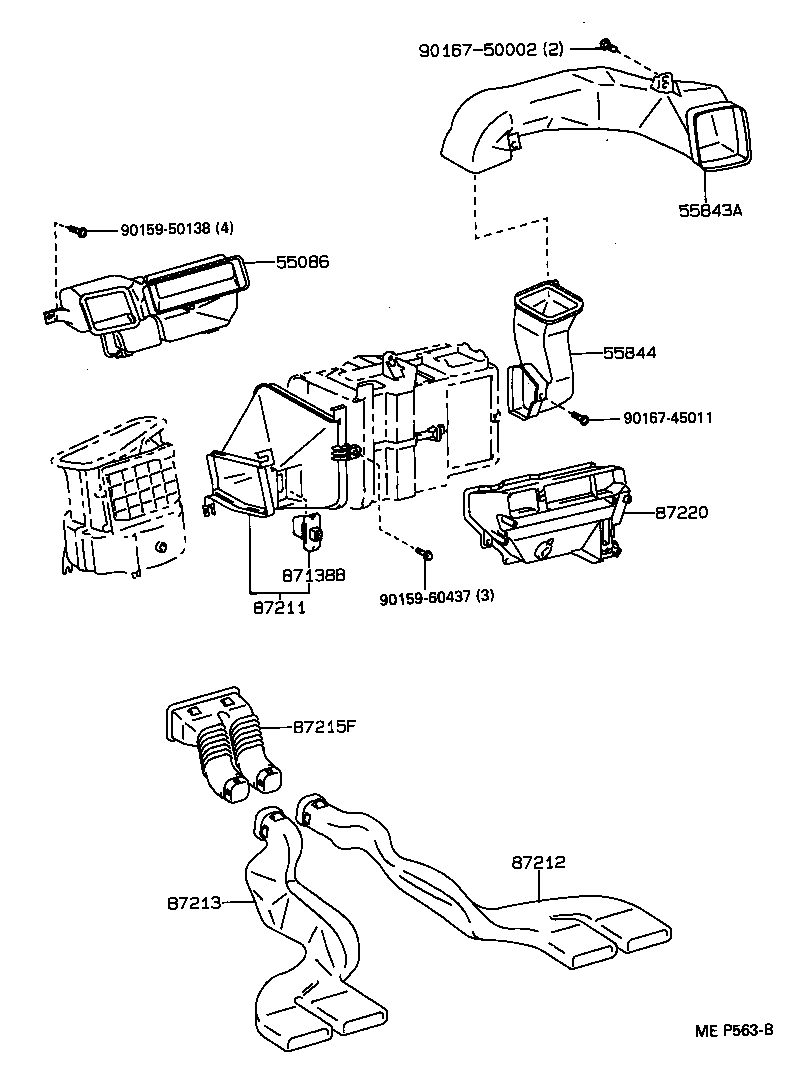

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-10070 |
EP8#,NP80 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-10070 |
EP8#,NP80 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-10070 |
EP8#,NP80 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-18020 |
EP82..S;EP85..5D..SOLL *AAC---*LHC |
1 | ||
| 87138-18020 |
EP8#..CAN,S,SOLL ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87138-10140 |
EP8#,NP80 |
1 | ||
| 87138-10140 |
EP8#..GI,S,XLTD ﾅｼ(*AIC) |
1 | ||
| 87138-18020 |
EP85..3D;EP82..S,SOLL *AAC---*LHC(DEALER OPT) |
1 | ||
| 87138-18020 |
NP80..X;EP82..GI,S,SI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-10120 |
EP8#,NP80 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-10100 |
EP8#,NP80 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-10090 |
EP8#,NP80 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-10010 |
EP8#,NP80 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-10010 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-60437 | ||||
| 90167-45011 | ||||
| 90167-50002 | ||||
ILLUST NO. 2 OF 2(8912-9601)

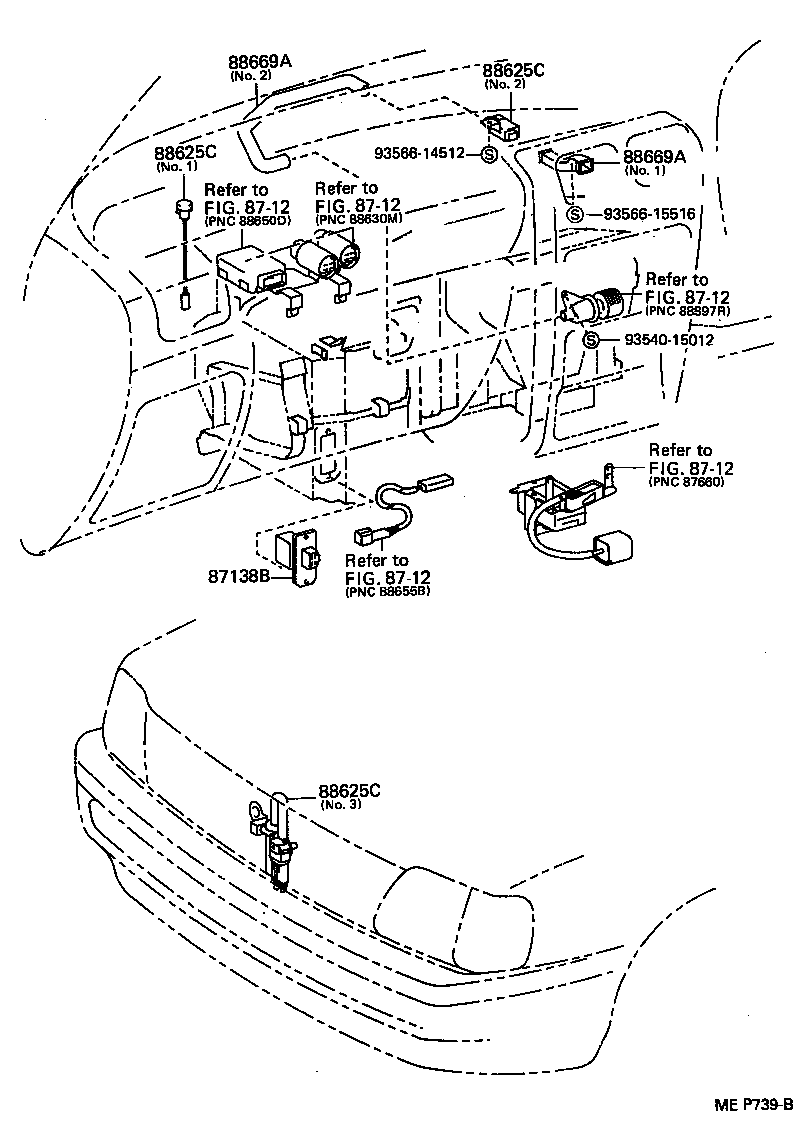

AUTO AIR CONDITIONER PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-18020 |
EP82..S;EP85..5D..SOLL *AAC---*LHC |
1 | ||
| 87138-18020 |
EP8#..CAN,S,SOLL ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87138-10140 |
EP8#,NP80 |
1 | ||
| 87138-10140 |
EP8#..GI,S,XLTD ﾅｼ(*AIC) |
1 | ||
| 87138-18020 |
EP85..3D;EP82..S,SOLL *AAC---*LHC(DEALER OPT) |
1 | ||
| 87138-18020 |
NP80..X;EP82..GI,S,SI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-10120 |
EP8#..CAN,S,SOLL OUT-AIR(NO.3) |
1 | ||
| 88625-10090 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD SOLAR(NO.1) |
1 | ||
| 88625-10100 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD IN-AIR(NO.2) |
1 | ||
| 88625-10110 |
EP8#..CANSI,GI,GT,S,SI,X,XLTD OUT-AIR(NO.3) |
1 | ||
| 88625-10120 |
EP8#..S OUT-AIR(NO.3) |
1 | ||
| 88625-10100 |
EP8#..S IN-AIR(NO.2) |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-10120 |
EP8#..CAN,S,SOLL OUT-AIR(NO.3) |
1 | ||
| 88625-10090 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD SOLAR(NO.1) |
1 | ||
| 88625-10100 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD IN-AIR(NO.2) |
1 | ||
| 88625-10110 |
EP8#..CANSI,GI,GT,S,SI,X,XLTD OUT-AIR(NO.3) |
1 | ||
| 88625-10120 |
EP8#..S OUT-AIR(NO.3) |
1 | ||
| 88625-10100 |
EP8#..S IN-AIR(NO.2) |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-10120 |
EP8#..CAN,S,SOLL OUT-AIR(NO.3) |
1 | ||
| 88625-10090 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD SOLAR(NO.1) |
1 | ||
| 88625-10100 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD IN-AIR(NO.2) |
1 | ||
| 88625-10110 |
EP8#..CANSI,GI,GT,S,SI,X,XLTD OUT-AIR(NO.3) |
1 | ||
| 88625-10120 |
EP8#..S OUT-AIR(NO.3) |
1 | ||
| 88625-10100 |
EP8#..S IN-AIR(NO.2) |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-10010 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD NO.1 |
1 | ||
| 88669-10010 |
EP82..S NO.1 |
1 | ||
| 88669-10020 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD NO.2 |
1 | ||
| 88669-10020 |
EP82..S NO.2 |
1 | ||
| 88669-10010 |
EP8#..S NO.1 |
1 | ||
| 88669-10020 |
EP8#..S NO.2 |
1 | ||
| 88669-10020 |
EP8#..S NO.2 |
1 | ||
| 88669-10010 |
EP8#..S NO.1 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-10010 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD NO.1 |
1 | ||
| 88669-10010 |
EP82..S NO.1 |
1 | ||
| 88669-10020 |
EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD NO.2 |
1 | ||
| 88669-10020 |
EP82..S NO.2 |
1 | ||
| 88669-10010 |
EP8#..S NO.1 |
1 | ||
| 88669-10020 |
EP8#..S NO.2 |
1 | ||
| 88669-10020 |
EP8#..S NO.2 |
1 | ||
| 88669-10010 |
EP8#..S NO.1 |
1 | ||
| Common parts | ||||
| 93540-15012 | ||||
| 93566-14512 | ||||
| 93566-15516 | ||||
| Linked diagrams | ||||
| 8712 | ||||
