Toyota Starlet EP82 REAR WASHER - JDM Part Detective

EP82-AGMSK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992

Engine 4EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8912-9601)

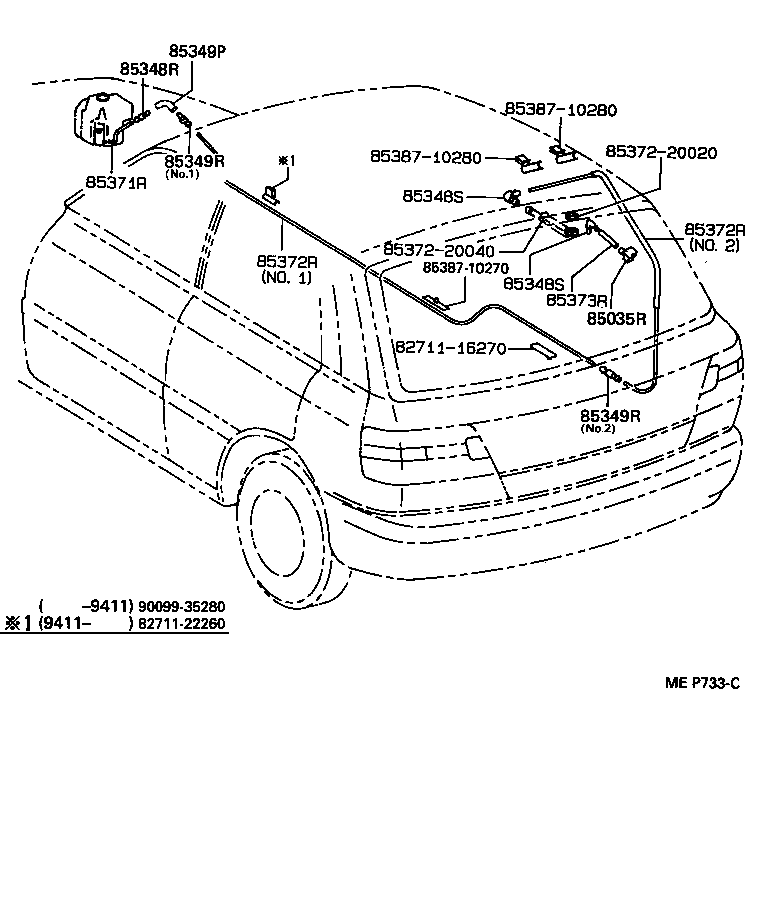

Click highlighted areas on diagram

ﾅｼ(ｱﾝﾁﾛﾂｸﾌﾞﾚ-ｷｼｽﾃﾑ)

Part #	Description	Period	Qty
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-10010	EP8#,NP80	12/1989 - 01/1996	1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122	EP8#,NP80	12/1989 - 05/1994	1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200	EP8#,NP80	12/1989 - 05/1994	3
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200	EP8#,NP80	12/1989 - 05/1994	3
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20070	EP8#,NP80	12/1989 - 01/1992	1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X	09/1990 - 01/1992	2
85375-10260	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(*66)	12/1989 - 09/1990	1
85349-89122	EP8#,NP80	12/1989 - 09/1990	2
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X	09/1990 - 01/1992	2
85375-10260	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(*66)	12/1989 - 09/1990	1
85349-89122	EP8#,NP80	12/1989 - 09/1990	2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X	09/1990 - 01/1992	1
90446-07001	EP8#,NP80	12/1989 - 09/1990	1
90446-06013	EP82..(CAN,SOL)..EFI;EP85,NP80..S,SOLL,XLTD;EP82..CANSI,GI,GT,S,SI,X,XLTD 長さ=450,ｱﾘ(*66)	12/1989 - 05/1994	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33840	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=1410,ｱﾘ(*66),NO.2	12/1989 - 09/1990	1
90099-33570	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=3705,ｱﾘ(*66),NO.1	12/1989 - 09/1990	1
90099-59004	EP8#,NP80 *H,L=3317,NO.1	12/1989 - 09/1990	1
90099-33836	EP8#,NP80 長さ=1190,NO.2	12/1989 - 09/1990	1
90099-59004	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X *H,L=3317,NO.1	09/1990 - 01/1992	1
90099-33836	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X 長さ=1190,NO.2	09/1990 - 01/1992	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33840	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=1410,ｱﾘ(*66),NO.2	12/1989 - 09/1990	1
90099-33570	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=3705,ｱﾘ(*66),NO.1	12/1989 - 09/1990	1
90099-59004	EP8#,NP80 *H,L=3317,NO.1	12/1989 - 09/1990	1
90099-33836	EP8#,NP80 長さ=1190,NO.2	12/1989 - 09/1990	1
90099-59004	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X *H,L=3317,NO.1	09/1990 - 01/1992	1
90099-33836	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X 長さ=1190,NO.2	09/1990 - 01/1992	1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080	EP8#,NP80 L=1450	12/1989 - 01/1996	1
Common parts
82711-16270
82711-22260
85372-20020
85372-20040
85387-10270
85387-10280
90099-35280

(8912-9601)

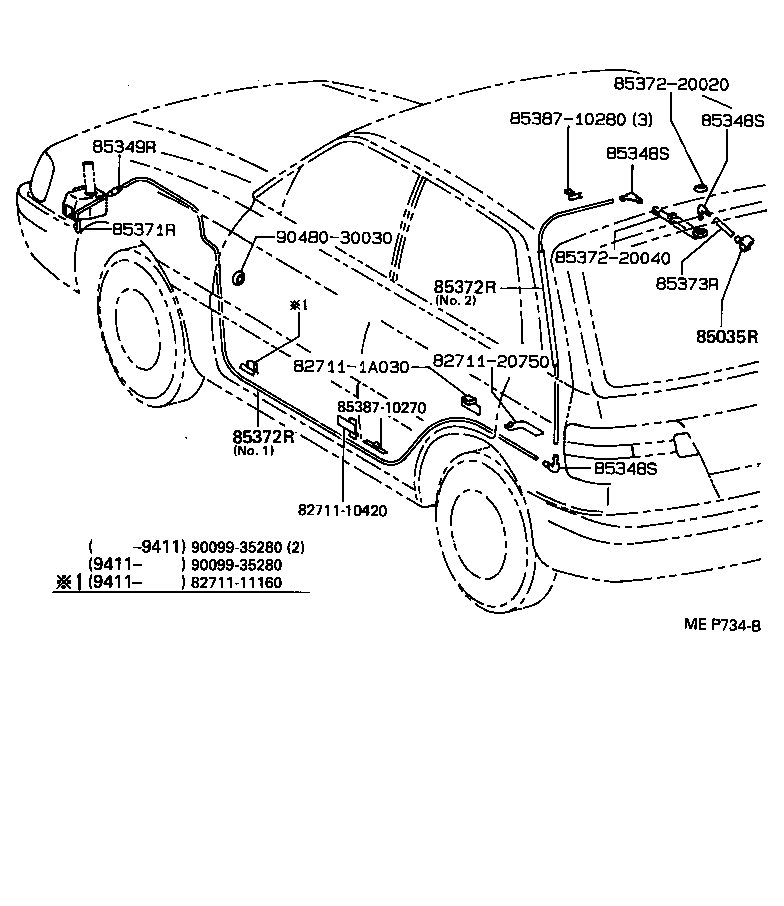

Click highlighted areas on diagram

ｱﾘ(ｱﾝﾁﾛﾂｸﾌﾞﾚｰｷｼｽﾃﾑ)

Part #	Description	Period	Qty
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-10010	EP8#,NP80	12/1989 - 01/1996	1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200	EP8#,NP80	12/1989 - 05/1994	3
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200	EP8#,NP80	12/1989 - 05/1994	3
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200	EP8#,NP80	12/1989 - 05/1994	3
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X	09/1990 - 01/1992	2
85375-10260	EP85;EP82..CANSI,GI,GT,S,SI,X ｱﾘ(*66)	12/1989 - 09/1990	1
85349-89122	EP8#,NP80	12/1989 - 09/1990	2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X	09/1990 - 01/1992	1
90446-07001	EP8#,NP80	12/1989 - 09/1990	1
90446-06013	EP82..(CAN,SOL)..EFI;EP85,NP80..S,SOLL,XLTD;EP82..CANSI,GI,GT,S,SI,X,XLTD 長さ=450,ｱﾘ(*66)	12/1989 - 05/1994	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33840	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=1410,ｱﾘ(*66),NO.2	12/1989 - 09/1990	1
90099-33570	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=3705,ｱﾘ(*66),NO.1	12/1989 - 09/1990	1
90099-59004	EP8#,NP80 *H,L=3317,NO.1	12/1989 - 09/1990	1
90099-33836	EP8#,NP80 長さ=1190,NO.2	12/1989 - 09/1990	1
90099-59004	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X *H,L=3317,NO.1	09/1990 - 01/1992	1
90099-33836	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X 長さ=1190,NO.2	09/1990 - 01/1992	1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33840	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=1410,ｱﾘ(*66),NO.2	12/1989 - 09/1990	1
90099-33570	EP85;EP82..CANSI,GI,GT,S,SI,X 長さ=3705,ｱﾘ(*66),NO.1	12/1989 - 09/1990	1
90099-59004	EP8#,NP80 *H,L=3317,NO.1	12/1989 - 09/1990	1
90099-33836	EP8#,NP80 長さ=1190,NO.2	12/1989 - 09/1990	1
90099-59004	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X *H,L=3317,NO.1	09/1990 - 01/1992	1
90099-33836	EP85,NP80;EP82..CAN,CANSI,GI,GT,S,SI,X 長さ=1190,NO.2	09/1990 - 01/1992	1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080	EP8#,NP80 L=1450	12/1989 - 01/1996	1
Common parts
82711-10420
82711-11160
82711-1A030
82711-20750
85372-20020
85372-20040
85387-10270
85387-10280
90099-35280
90480-30030

EP82-AGMSK (1989)

(8912-9601)

(8912-9601)
