EP82-AGMSK (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)

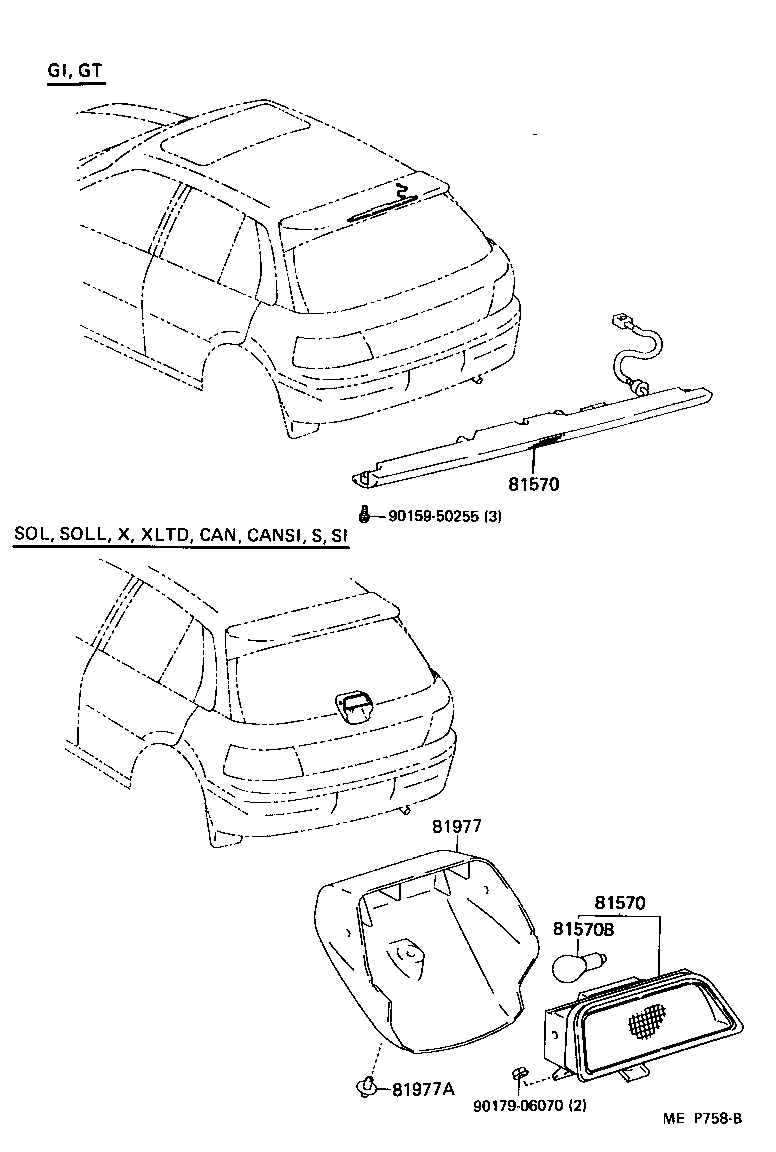

Click highlighted areas on diagram

diagram 81570 81570 81570B 81977 81977A 9015950255 9017906070
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-10030

EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

 1
81570 - LAMP ASSY, CENTER STOP
81570-10030

EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

12V 27W

 1
81977 - COVER, CENTER STOP LAMP
81977-1001003

EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

GRAY,TRIM1#

 1
81977-1001004

EP82..S,SI

BLUE,TRIM8#

 1
81977-1001004

EP82..S,SI,SOLL

BLUE,TRIM8#

 1
81977-1001004

EP82..S,SI

BLUE,TRIM8#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-0707114

EP82..S,SI

BLUE,TRIM8#

 3
90467-07071B4

EP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

SHADOW GRAY,TRIM1#

 3
90467-0707114

EP82..S,SI,SOLL

BLUE,TRIM8#

 3
90467-0707114

EP82..S,SI

BLUE,TRIM8#

 3
Common parts
90159-50255
90179-06070
