EP82-AGMQY (1989)
Toyota Starlet
(8912-9201)EFI,TBO ; (9201- )EP82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10050 |
EP82,NP80 |
1 | ||
| 77034A - CRIP (FOR FUEL TANK FILLER PIPE) | ||||
| 90467-07109 |
EP8#,NP80 |
5 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-10050 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD CYUHATSU |
1 | ||
| 77035-10050 |
EP8#,NP80 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-10010 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 77037-10010 |
EP8#,NP80 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-10920 |
EP82..3D..SOLL..EFI;EP82..3D..4F..SOL..EFI;EP82..(3FC,4FC,5F)..(CANSI,GI,GT,SI,SOL,XLTD)..(EFI,TBO) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77001-10280 |
EP82..EFI,TBO |
1 | ||
| 77001-10320 |
EP82 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
EP82..CBR,TBO;EP82..3D..SOLL..EFI;EP82..3D..4F..SOL..EFI;EP82..(3FC,4FC,5F)..(CANSI,GI,SI,SOL,XLTD)..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
EP82..CBR,TBO;EP82..3D..SOLL..EFI;EP82..3D..4F..SOL..EFI;EP82..(3FC,4FC,5F)..(CANSI,GI,SI,SOL,XLTD)..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95311-13028 |
EP82,NP80 長さ=280 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EP82,NP80 |
4 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10130 |
EP82 |
1 | ||
| 77201-10180 |
EP82 |
1 | ||
| 77201-10140 |
EP82 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-10180 |
EP82,NP80 |
1 | ||
| 77201-10190 |
EP82 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-10190 |
EP82,NP80 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-10070 |
EP82,NP80 長さ=292 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-10050 |
EP8# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-10220 |
EP82..EFI,TBO |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-10190 |
EP82..EFI,TBO |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06040 |
EP82..EFI,TBO *H,L=400 |
1 | ||
| 90445-12247 |
EP82..EFI,TBO 長さ=400 |
1 | ||
| 90445-12247 |
EP8# 長さ=400 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-10150 |
EP82 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77419-10040 |
EP82 長さ=135 |
1 | ||
| 95333-06020 |
EP82 *H,L=200 |
1 | ||
| 77419-10010 |
EP82 長さ=140 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-10030 |
EP8#,NP80 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-10050 |
EP8#,NP80 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-10020 |
EP82,NP80 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
EP82..EFI,TBO *H,L=200 |
1 | ||
| 77279-10050 |
EP8# 長さ=130 |
1 | ||
| 77279-10050 |
EP82 長さ=130 |
1 | ||
| 77279-10020 |
EP8#..EFI,TBO 長さ=200 |
1 | ||
| 77279-10060 |
EP8# 長さ=125 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-10040 |
EP82..GI,GT |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-10010 |
EP8#,NP80 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-10020 |
EP8#..EFI,TBO |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-10030 |
EP8#,NP80..DSL,EFI,TBO |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-10010 |
EP8#,NP80 |
1 | ||
| 77290-10010 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-10020 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 77293-10020 |
EP8#,NP80 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
EP8# |
1 | ||
| 77310-12100 |
EP82 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EP8#,NP80 |
1 | ||
| 77316-12050 |
EP82,NP80 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-10050 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 77350-10050 |
EP8#,NP80 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-10040 |
EP8#,NP80 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-10020 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 77360-10020 |
EP8#,NP80 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
EP8#,NP80 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
EP8#,NP80 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-10010 |
EP8#,NP80 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-16160 |
EP8# |
1 | ||
| 77704-10130 |
EP8# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-08020 |
EP82..EFI,TBO *H,L=170 |
1 | ||
| 77763 - CASE, CHARCOAL CANISTER DRAIN | ||||
| 77763-10020 |
EP85..5F;EP82..MTM..EFI;EP82..(3FC,4F,5F)..(CBR,TBO) |
1 | ||
| Common parts | ||||
| 77178-20030 | ||||
| 77411-10010 | ||||
| 90119-08866 | ||||
| 90119-10252 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60175 | ||||
| 90179-10112 | ||||
| 90189-05072 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00395 | ||||
| 90464-00517 | ||||
| 90467-05086 | ||||
| 90467-11009 | ||||
| 90467-16023 | ||||
| 90469-22001 | ||||
| 90480-01277 | ||||
| 90480-01565 | ||||
| 90541-05017 | ||||
| 91656-A0616 | ||||
| 93319-13006 | ||||
| 93385-15014 | ||||
| 96132-30800 | ||||
| 96132-41100 | ||||

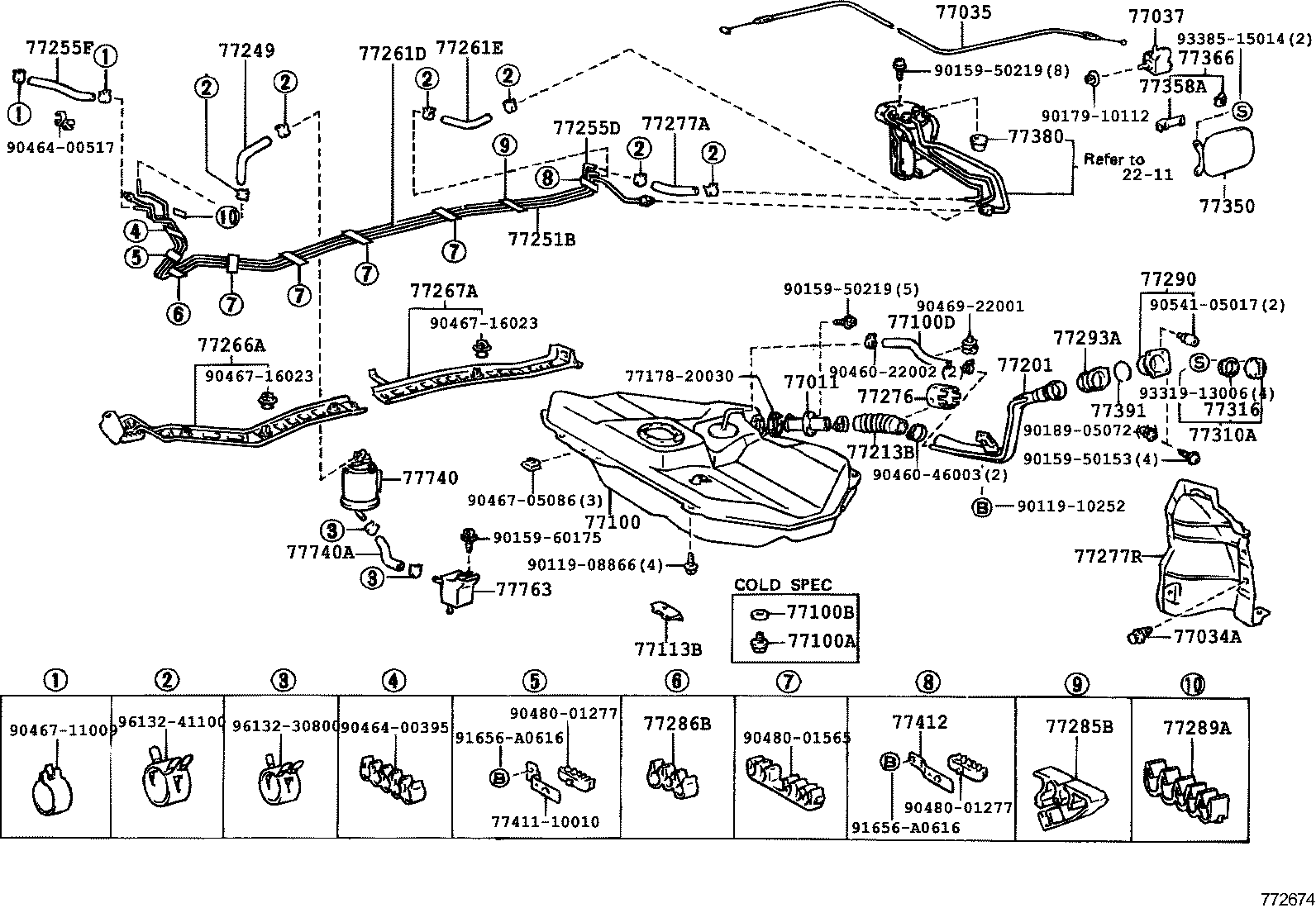

| Linked diagrams | ||||
| 2211 | ||||
