EP82-AGMQY (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
4EFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

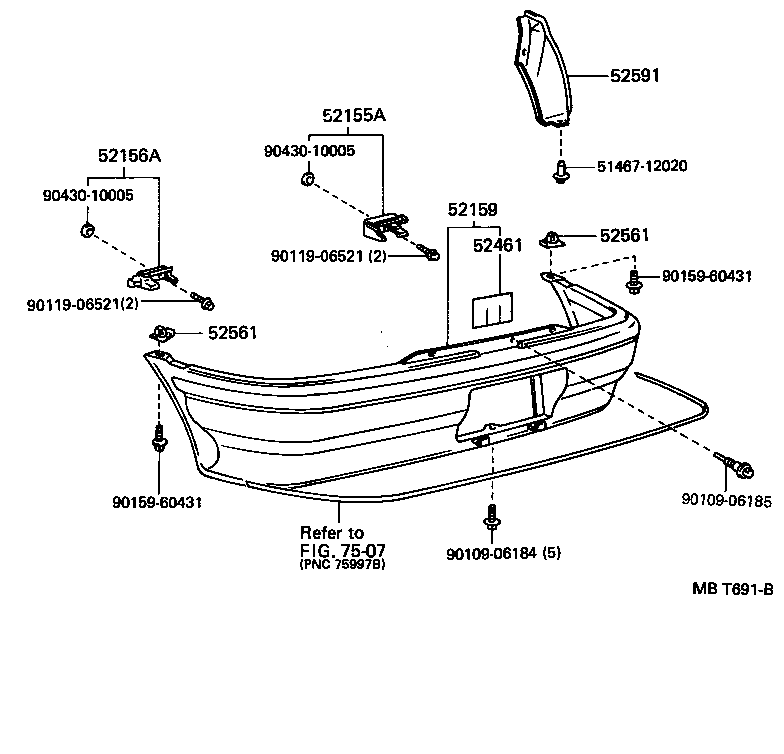

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-10040 |
EP8#,NP80 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-10030 |
EP8#,NP80 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1020002 |
EP82..GI,GT RED MICA,3H4 |
1 | ||
| 52159-1020003 |
EP82..GI,GT BLUISH GRAY,M,185 |
1 | ||
| 52159-1020007 |
EP82..GI,GT BLACKISH GREEN,M,6L2 |
1 | ||
| 52159-1027005 |
EP82..TBO ﾂ-ﾄﾝ ﾎﾞﾃﾞ- ｶﾗ-,BEIGE M,040 |
1 | ||
| 52159-1020004 |
EP82..TBO GRAYSH BLUE,8H1 |
1 | ||
| 52159-1027015 |
EP82..TBO ﾂ-ﾄﾝ ﾎﾞﾃﾞ- ｶﾗ-,BEIGE M,3H4 ,6L2 |
1 | ||
| 52159-10200B0 |
EP82..TBO GT ﾘﾐﾃﾂﾄﾞ,BLUISH GRAY M,205 |
1 | ||
| 52159-10140 |
EP8#,NP80 |
1 | ||
| 52159-1020008 |
EP82..GI,GT SUPER WHITE 2,040 |
1 | ||
| 52159-10200G0 |
EP82..GI,GT GREEN M,6M6 |
1 | ||
| 52159-10200C0 |
EP82..GI,GT BLACK M,205 |
1 | ||
| 52159-10200B0 |
EP82..TBO GTｱﾄﾞﾊﾞﾝｽ(205/182),BLUISH GRAY M |
1 | ||
| 52159-10200B0 |
EP82..GI,GT BLUISH GRAY M,182 |
1 | ||
| 52159-10200B1 |
EP82..GI,GT SILVER M,199 |
1 | ||
| 52159-10200H0 |
EP82..GI,GT TURQUOISE M.M,746 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-10020 |
EP82..GI,GT |
2 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-10030 |
EP8#,NP80 |
2 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-10030 |
EP8#,NP80 |
2 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-10040 |
EP82..GI,GT |
1 | ||
| Common parts | ||||
| 51467-12020 | ||||
| 90109-06184 | ||||
| 90109-06185 | ||||
| 90119-06521 | ||||
| 90159-60431 | ||||
| 90430-10005 | ||||
| Linked diagrams | ||||
| 7507 | ||||
