EP82-AGMQY (1989)
Toyota Starlet

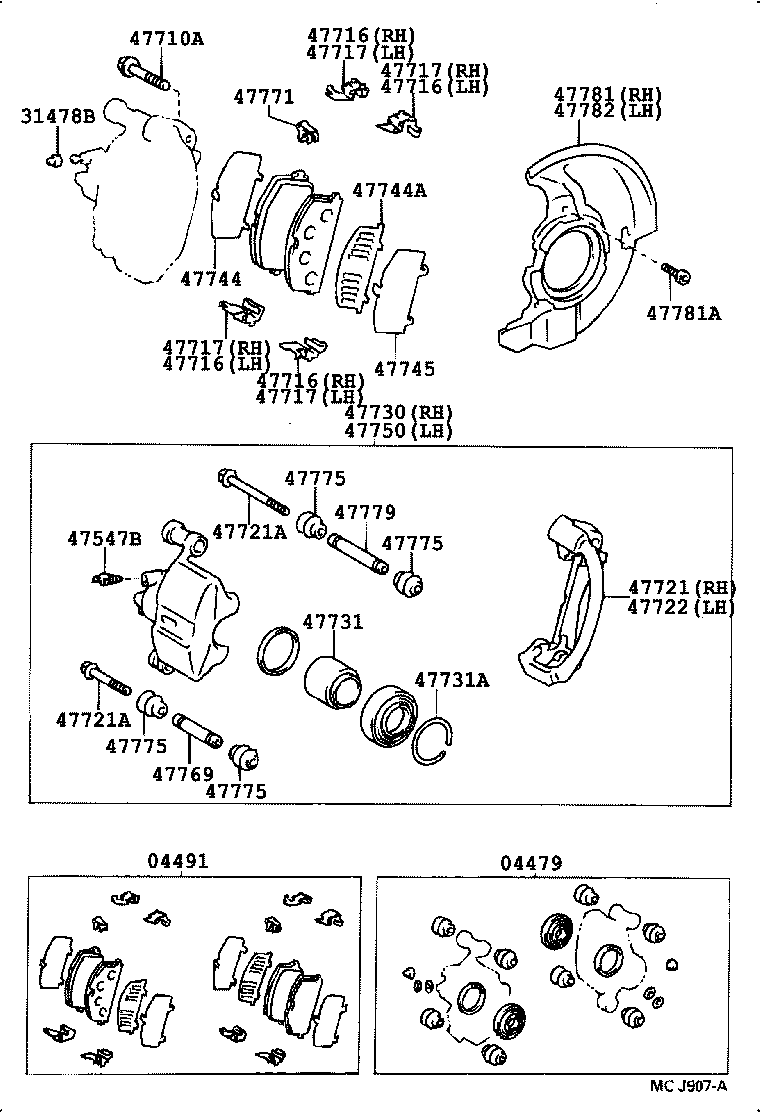

ILLUST NO. 1 OF 2(8912- )TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-12091 |
EP82..TBO |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-10180 |
EP82..TBO |
1 | ||
| 04491-10241 |
EP82..TBO |
1 | ||
| 04491-10240 |
EP82..TBO |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
EP8#,NP80 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
EP8#,NP80 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
EP85;EP82..CANSI,GI,GT,S,SI,X *12−1.25PX25.8−19.5 |
4 | ||
| 90119-12040 |
EP8#,NP80 *12−1.25PX25.8−19.5 |
4 | ||
| 90119-12040 |
EP8# *12−1.25PX25.8−19.5 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32031 |
EP82..TBO |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32031 |
EP82..TBO |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32031 |
EP82..TBO |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32031 |
EP82..TBO |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32031 |
EP82..TBO |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32031 |
EP82..TBO |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32031 |
EP82..TBO |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32031 |
EP82..TBO |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-10010 |
EP82..TBO |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09004 |
EP85;EP82..CANSI,GI,GT,S,SI,X *9−1.25PX91−25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 90119-09003 |
EP85;EP82..CANSI,GI,GT,S,SI,X *9−1.25PX71−25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 90119-09003 |
EP8#,NP80 *9−1.25PX71−25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 90119-09004 |
EP8# *9−1.25PX91−25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 90119-09003 |
EP8# *9−1.25PX71−25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 90119-09004 |
EP8#,NP80 *9−1.25PX91−25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09004 |
EP85;EP82..CANSI,GI,GT,S,SI,X *9−1.25PX91−25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 90119-09003 |
EP85;EP82..CANSI,GI,GT,S,SI,X *9−1.25PX71−25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 90119-09003 |
EP8#,NP80 *9−1.25PX71−25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 90119-09004 |
EP8# *9−1.25PX91−25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 90119-09003 |
EP8# *9−1.25PX71−25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 90119-09004 |
EP8#,NP80 *9−1.25PX91−25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-10010 |
EP82..TBO |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-10110 |
EP82..TBO |
1 | ||
| 47730-10111 |
EP82..TBO |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12150 |
EP82..TBO |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
EP8#,NP80 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-16011 |
EP82..TBO |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-32040 |
EP82..TBO |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-32040 |
EP82..TBO |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-10111 |
EP82..TBO |
1 | ||
| 47750-10110 |
EP82..TBO |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-12030 |
EP82..TBO |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-32010 |
EP82..TBO |
2 | ||
| 47771-12050 |
EP82..TBO |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47775-32010 |
EP85;EP82..TBO |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-16010 |
EP82..TBO |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-10070 |
EP82..TBO |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90109-06134 |
EP8#,NP80 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-10070 |
EP82..TBO |
1 | ||
ILLUST NO. 2 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-10040 |
EP82..TBO ﾏｰｸ AISIN PC513 |
1 | ||
| 04465-10040 |
EP82..TBO ﾏｰｸ AISIN PC513 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-32120 |
EP82..TBO |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-32010 |
EP82..TBO |
1 | ||
