EP82-AGKEU (1989)
Toyota Starlet
(8912-9201)4EF# ; (9201- )4EF#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-11030 |
4EF#..EP8# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-11040 |
4EF#..EP8# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-16050 |
4EF#..EP8# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-11030 |
4EF..EP8# |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-11020 |
4EF..EP8# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-11020 |
4EF#..EP8# |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-74900 |
4EF#..EP8# |
1 | ||
| 13558 - BRACKET, SPRING(FOR IDLER) | ||||
| 13558-11050 |
4EF#..EP8# |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-11080 |
4EF#..EP8# |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-74010 |
4EF#..EP8# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-11010 |
4EF#..EP8# |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
4EF#..EP8# EXHAUST SIDE |
8 | ||
| 90913-02086 |
4EF#..EP8# INTAKE SIDE |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
4EF#..EP8# EXHAUST SIDE |
8 | ||
| 90913-02086 |
4EF#..EP8# INTAKE SIDE |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90504-34001 |
4EF#..EP8# |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90504-34001 |
4EF#..EP8# |
16 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16020 |
4EF#..EP8# |
16 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16020 |
4EF#..EP8# |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-11030 |
4EF#..EP8# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
4EF#..EP8# |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
4EF#..EP8# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
4EF#..EP8# |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
4EF#..EP8# |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
4EF#..EP8# |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
4EF#..EP8# |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16160 |
4EF#..EP8# 厚さ=2.85 |
16 | ||
| 13753-16040 |
4EF#..EP8# 厚さ=2.55 |
16 | ||
| 13753-16220 |
4EF#..EP8# 厚さ=3.00 |
16 | ||
| 13753-16140 |
4EF#..EP8# 厚さ=2.80 |
16 | ||
| 13753-16280 |
4EF#..EP8# 厚さ=3.15 |
16 | ||
| 13753-16100 |
4EF#..EP8# 厚さ=2.70 |
16 | ||
| 13753-16020 |
4EF#..EP8# 厚さ=2.50 |
16 | ||
| 13753-16180 |
4EF#..EP8# 厚さ=2.90 |
16 | ||
| 13753-16260 |
4EF#..EP8# 厚さ=3.10 |
16 | ||
| 13753-16060 |
4EF#..EP8# 厚さ=2.60 |
16 | ||
| 13753-16200 |
4EF#..EP8# 厚さ=2.95 |
16 | ||
| 13753-16080 |
4EF#..EP8# 厚さ=2.65 |
16 | ||
| 13753-16300 |
4EF#..EP8# 厚さ=3.20 |
16 | ||
| 13753-16240 |
4EF#..EP8# 厚さ=3.05 |
16 | ||
| 13753-16120 |
4EF#..EP8# 厚さ=2.75 |
16 | ||
| 13753-16320 |
4EF#..EP8# 厚さ=3.25 |
16 | ||
| 13753-16340 |
4EF#..EP8# 厚さ=3.30 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16160 |
4EF#..EP8# 厚さ=2.85 |
16 | ||
| 13753-16040 |
4EF#..EP8# 厚さ=2.55 |
16 | ||
| 13753-16220 |
4EF#..EP8# 厚さ=3.00 |
16 | ||
| 13753-16140 |
4EF#..EP8# 厚さ=2.80 |
16 | ||
| 13753-16280 |
4EF#..EP8# 厚さ=3.15 |
16 | ||
| 13753-16100 |
4EF#..EP8# 厚さ=2.70 |
16 | ||
| 13753-16020 |
4EF#..EP8# 厚さ=2.50 |
16 | ||
| 13753-16180 |
4EF#..EP8# 厚さ=2.90 |
16 | ||
| 13753-16260 |
4EF#..EP8# 厚さ=3.10 |
16 | ||
| 13753-16060 |
4EF#..EP8# 厚さ=2.60 |
16 | ||
| 13753-16200 |
4EF#..EP8# 厚さ=2.95 |
16 | ||
| 13753-16080 |
4EF#..EP8# 厚さ=2.65 |
16 | ||
| 13753-16300 |
4EF#..EP8# 厚さ=3.20 |
16 | ||
| 13753-16240 |
4EF#..EP8# 厚さ=3.05 |
16 | ||
| 13753-16120 |
4EF#..EP8# 厚さ=2.75 |
16 | ||
| 13753-16320 |
4EF#..EP8# 厚さ=3.25 |
16 | ||
| 13753-16340 |
4EF#..EP8# 厚さ=3.30 |
16 | ||
| Common parts | ||||
| 90105-08123 | ||||
| 90105-08206 | ||||
| 90119-08A00 | ||||
| 90119-10380 | ||||
| 90206-42001 | ||||
| 90520-41004 | ||||
| 90520-47002 | ||||

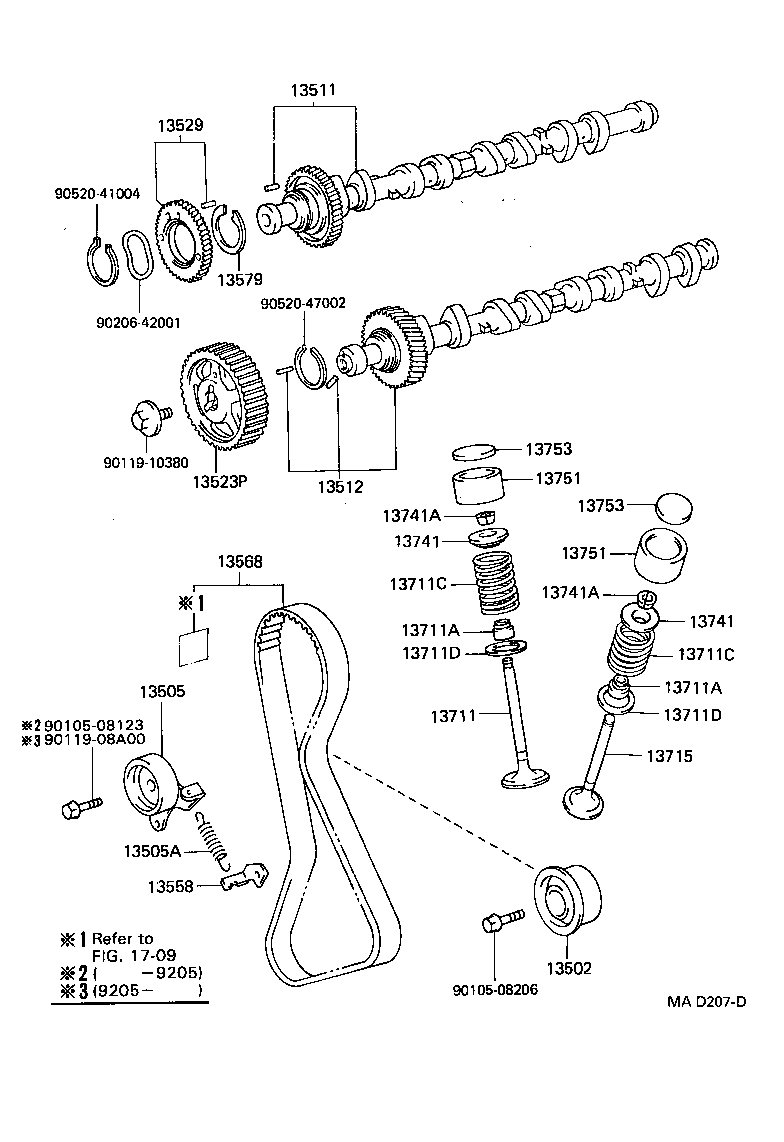

| Linked diagrams | ||||
| 1709 | ||||
