EP82-AGKDK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

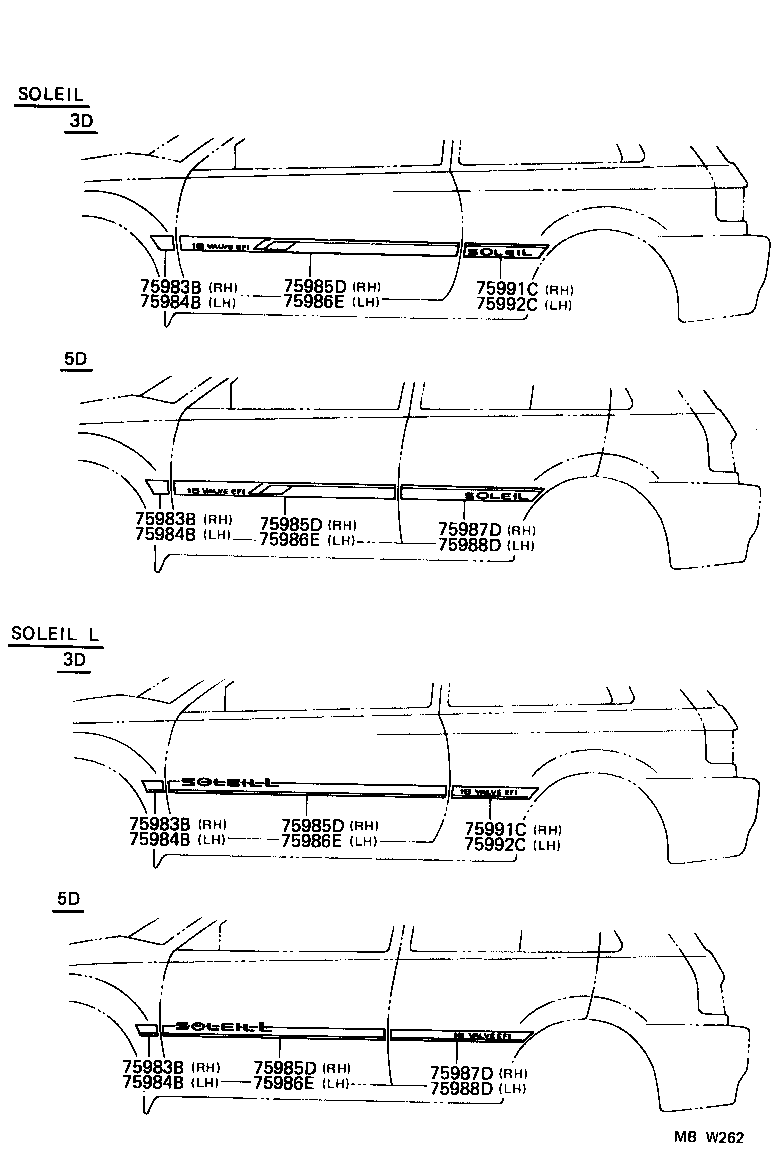

ILLUST NO. 2 OF 2(9201-9405)EP82..SOL,SOLL

Click highlighted areas on diagram

diagram 75983B 75983B 75983B 75983B 75984B 75984B 75984B 75984B 75985D 75985D 75985D 75985D 75986E 75986E 75986E 75986E 75987D 75987D 75988D 75988D 75991C 75991C 75992C 75992C
Part # Description Qty Price
75983B - STRIPE, FRONT FENDER, REAR RH
75983-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-10190

EP82,NP80..SOL

 1
75983-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75983-10270

EP82,NP80..SOL

 1
75983B - STRIPE, FRONT FENDER, REAR RH
75983-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-10190

EP82,NP80..SOL

 1
75983-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75983-10270

EP82,NP80..SOL

 1
75983B - STRIPE, FRONT FENDER, REAR RH
75983-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-10190

EP82,NP80..SOL

 1
75983-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75983-10270

EP82,NP80..SOL

 1
75983B - STRIPE, FRONT FENDER, REAR RH
75983-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75983-10190

EP82,NP80..SOL

 1
75983-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75983-10270

EP82,NP80..SOL

 1
75984B - STRIPE, FRONT FENDER, REAR LH
75984-10190

EP82,NP80..SOL

 1
75984-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-10270

EP82,NP80..SOL

 1
75984B - STRIPE, FRONT FENDER, REAR LH
75984-10190

EP82,NP80..SOL

 1
75984-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-10270

EP82,NP80..SOL

 1
75984B - STRIPE, FRONT FENDER, REAR LH
75984-10190

EP82,NP80..SOL

 1
75984-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-10270

EP82,NP80..SOL

 1
75984B - STRIPE, FRONT FENDER, REAR LH
75984-10190

EP82,NP80..SOL

 1
75984-1021003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75984-1021013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75984-10270

EP82,NP80..SOL

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-1048003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75985-1048013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-10520

EP82,NP80..3D..SOL

 1
75985-10610

EP82..3D..SOL

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-1048003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75985-1048013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-10520

EP82,NP80..3D..SOL

 1
75985-10610

EP82..3D..SOL

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-1048003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75985-1048013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-10520

EP82,NP80..3D..SOL

 1
75985-10610

EP82..3D..SOL

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-1048003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75985-1048013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75985-10520

EP82,NP80..3D..SOL

 1
75985-10610

EP82..3D..SOL

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-1047013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986-1047003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75986-10510

EP82,NP80..3D..SOL

 1
75986-10600

EP82..3D..SOL

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-1047013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986-1047003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75986-10510

EP82,NP80..3D..SOL

 1
75986-10600

EP82..3D..SOL

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-1047013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986-1047003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75986-10510

EP82,NP80..3D..SOL

 1
75986-10600

EP82..3D..SOL

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-1047013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75986-1047003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75986-10510

EP82,NP80..3D..SOL

 1
75986-10600

EP82..3D..SOL

 1
75991C - STRIPE, QUARTER RH
75991-1036013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75991-10390

EP82..3D..SOL

 1
75991-10430

EP82,NP80..3D..SOL

 1
75991-1036003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75991C - STRIPE, QUARTER RH
75991-1036013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75991-10390

EP82..3D..SOL

 1
75991-10430

EP82,NP80..3D..SOL

 1
75991-1036003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75992C - STRIPE, QUARTER LH
75992-1034003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75992-1034013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75992-10370

EP82..3D..SOL

 1
75992-10410

EP82,NP80..3D..SOL

 1
75992C - STRIPE, QUARTER LH
75992-1034003

EP82..S

GRAY.M/SILVER,3E5 ,3H4

 1
75992-1034013

EP82..S

GRAY.M/RED,040 ,185 ,186 ,541 ,8H1

 1
75992-10370

EP82..3D..SOL

 1
75992-10410

EP82,NP80..3D..SOL

 1
