EP82-AGHNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

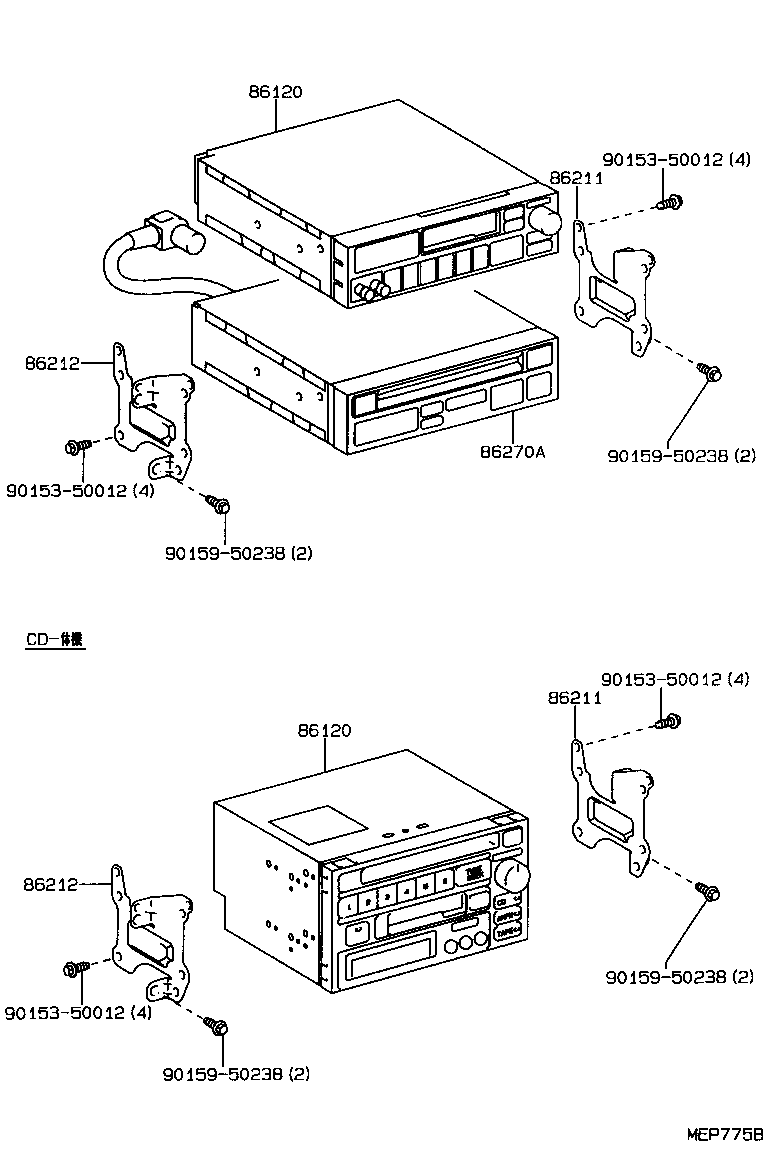

ILLUST NO. 1 OF 2(8912-9601)

Click highlighted areas on diagram

diagram 86120 86120 86211 86211 86212 86212 86270A 9015350012 9015350012 9015350012 9015350012 9015950238 9015950238 9015950238 9015950238
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-10400

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

FUJITSU TEN,AM/FM ｶｾﾂﾄ ETR

 1
86120-14840

EP8#..3D..(CANSI,GI,GT,S,SI,XLTD)

AM/FM ｶｾﾂﾄ ETR

 1
86120-10290

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

FUJITSU TEN

 1
86120-10430

EP8#..3D..(CANSI,GT,S,SI,XLTD)

AM/FM ﾗｼﾞｵﾂｷ CDﾌﾟﾚ-ﾔ

 1
86120 - RECEIVER ASSY, RADIO
86120-10400

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

FUJITSU TEN,AM/FM ｶｾﾂﾄ ETR

 1
86120-14840

EP8#..3D..(CANSI,GI,GT,S,SI,XLTD)

AM/FM ｶｾﾂﾄ ETR

 1
86120-10290

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

FUJITSU TEN

 1
86120-10430

EP8#..3D..(CANSI,GT,S,SI,XLTD)

AM/FM ﾗｼﾞｵﾂｷ CDﾌﾟﾚ-ﾔ

 1
86211 - BRACKET, RADIO, NO.1
86211-10120

EP8#,NP80

 1
86211 - BRACKET, RADIO, NO.1
86211-10120

EP8#,NP80

 1
86212 - BRACKET, RADIO, NO.2
86212-10100

EP8#,NP80

 1
86212 - BRACKET, RADIO, NO.2
86212-10100

EP8#,NP80

 1
86270A - DISC PLAYER ASSY
86270-20040

EP8#..3D..(CANSI,GI,GT,S,SI,XLTD)

 1
Common parts
90153-50012
90159-50238

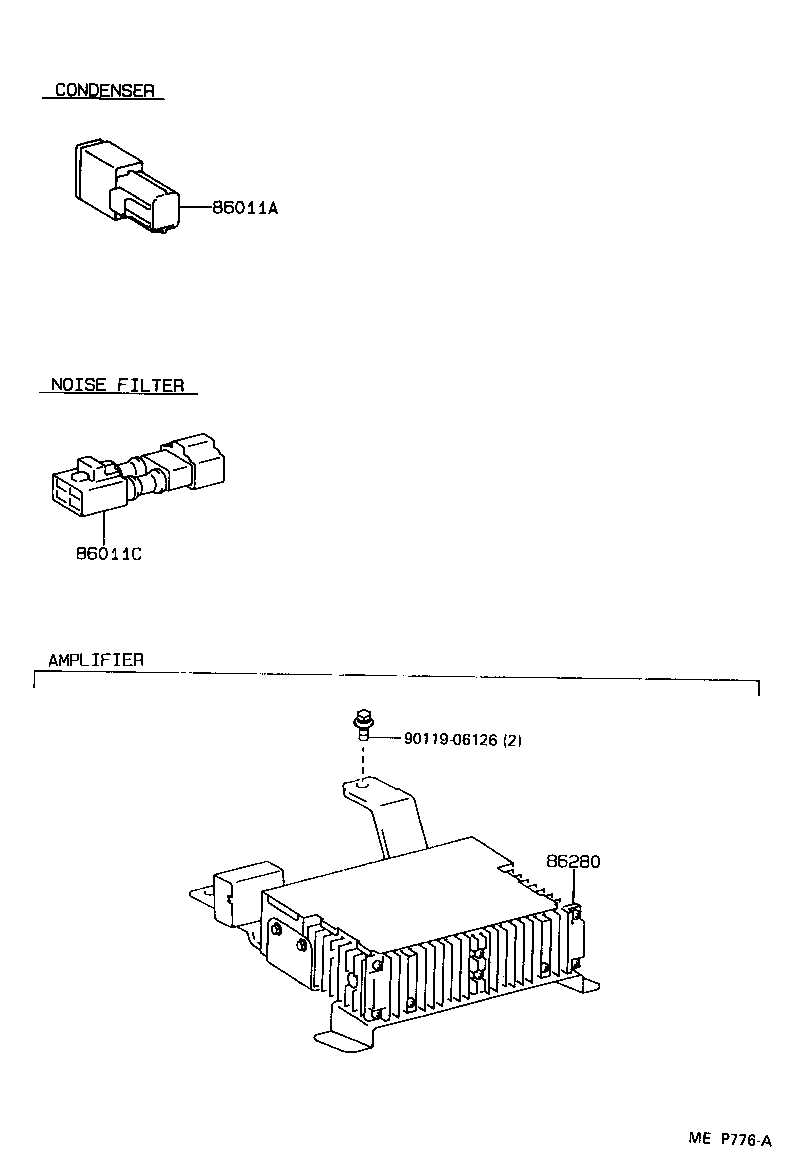

ILLUST NO. 2 OF 2(8912-9601)

Click highlighted areas on diagram

diagram 86011A 86011C 86280 9011906126
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05175

EP82,NP80..CBR,DSL,EFI

NO.1

 1
90980-05175

EP8#,NP80

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-10020

EP8#..3D..(CANSI,GI,GT,S,SI,XLTD)

 1
Common parts
90119-06126
